Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 59
Basic hardware procedures
4.3.3 Removing the hard disk drive cover

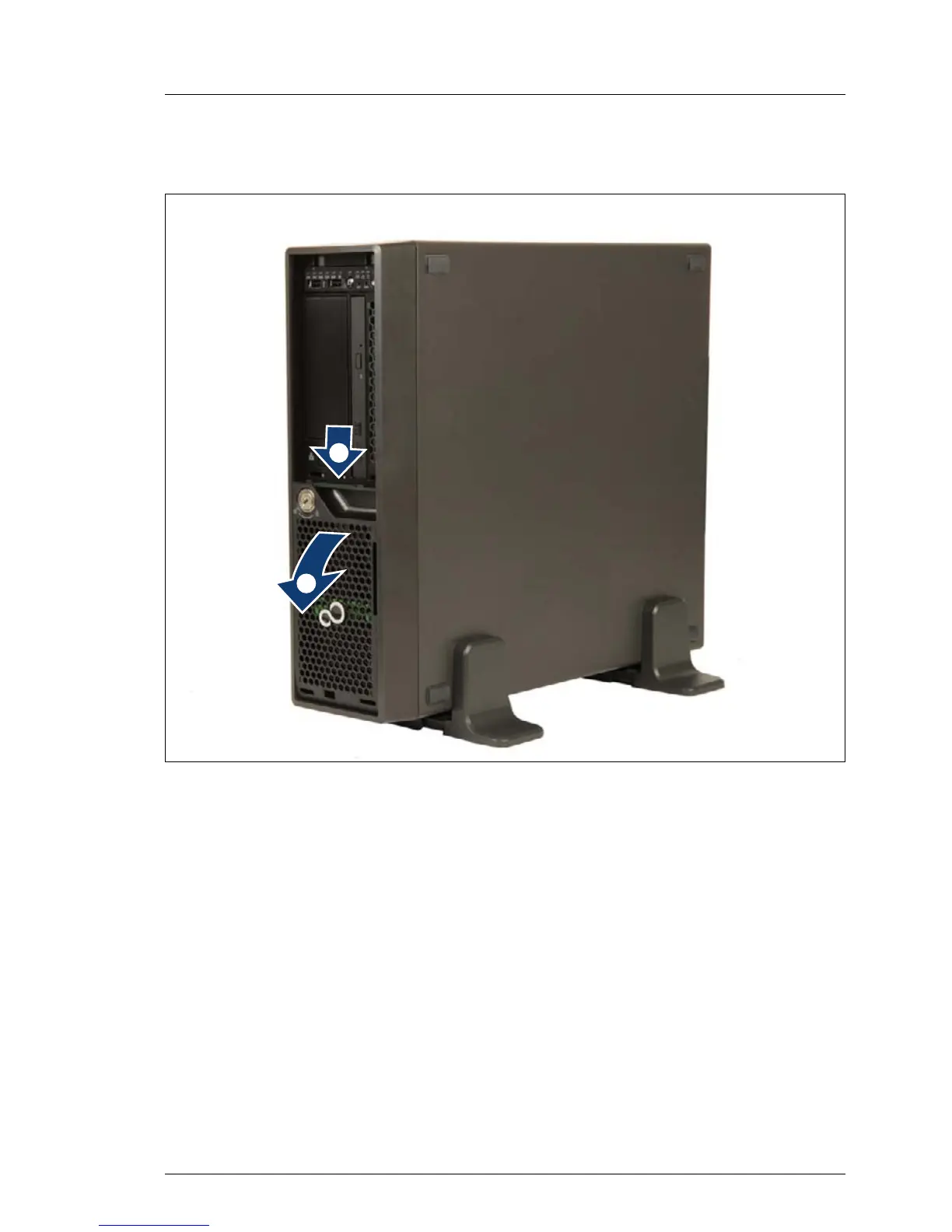

Figure 15: Opening the hard disk drive cover
Ê Turn the key clockwise.
Ê Remove the key.
Ê Open the hard disk drive cover in the direction of the arrow (1).
Ê Remove the hard disk drive cover (2).
/
