TX1320 M1 Upgrade and Maintenance Manual 67
Basic hardware procedures

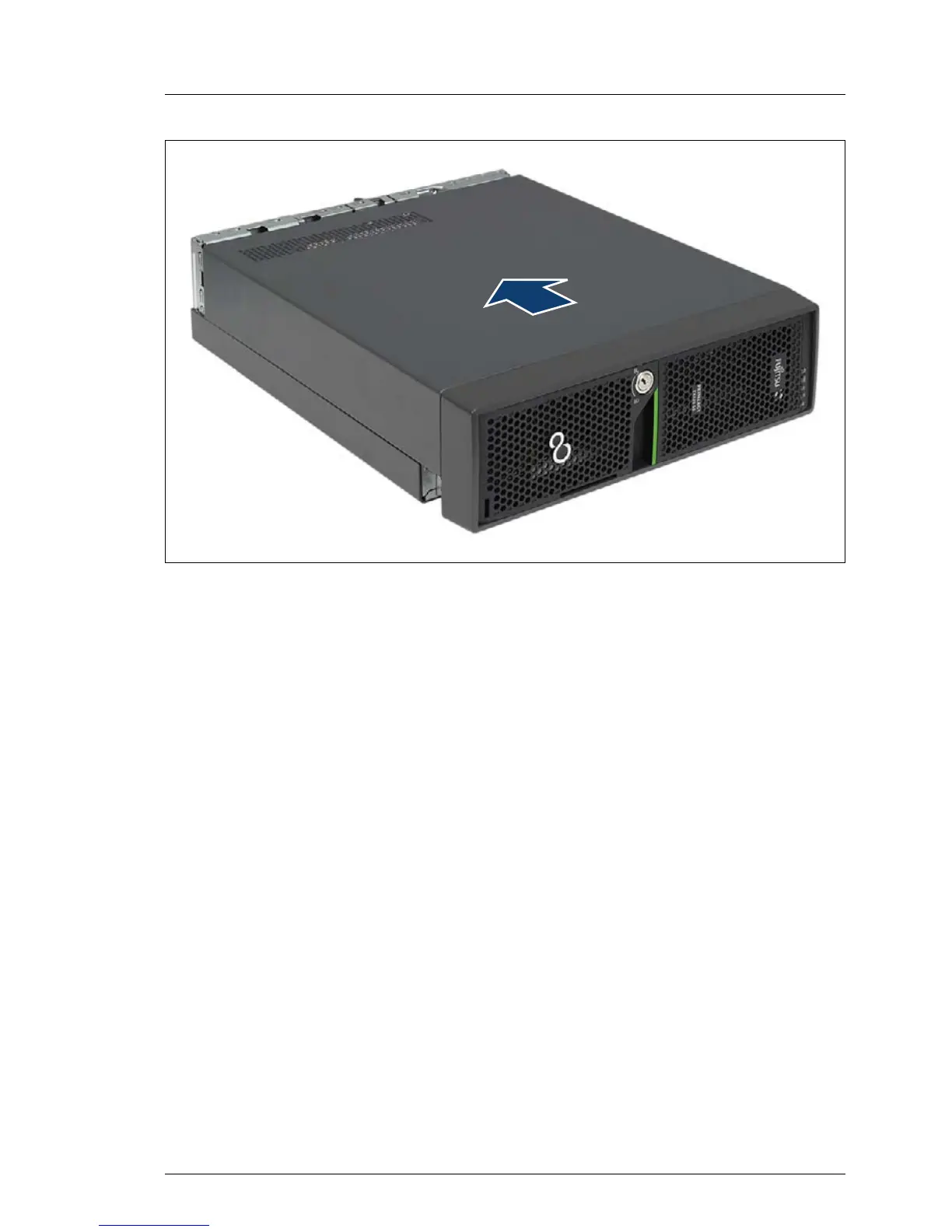

Figure 23: closing the server cover
Ê Slide the server cover shut by engaging the locking mechanism.
4.7 Connecting the server to the mains
The PRIMERGY TX1320 M1 server is equipped with a standard power supply
unit.
V CAUTION!
The power supply automatically adjusts to any mains voltage in the
range of 100 V - 240 V. You may only operate the server if its rated
voltage range corresponds to the local mains voltage.
Ê Connect the insulated connector of the power cable to the power supply unit
of the server.
Ê Connect the mains plug to a grounded mains outlet in the in-house power
supply network.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
