Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 117
Hard disk drives / solid state drives
7.2 2.5-inch hard disk drives / solid state drives
7.2.1 Mounting order for 2.5-inch HDDs / SSDs
Maximum configuration: 4x 2.5-inch HDDs / SSDs

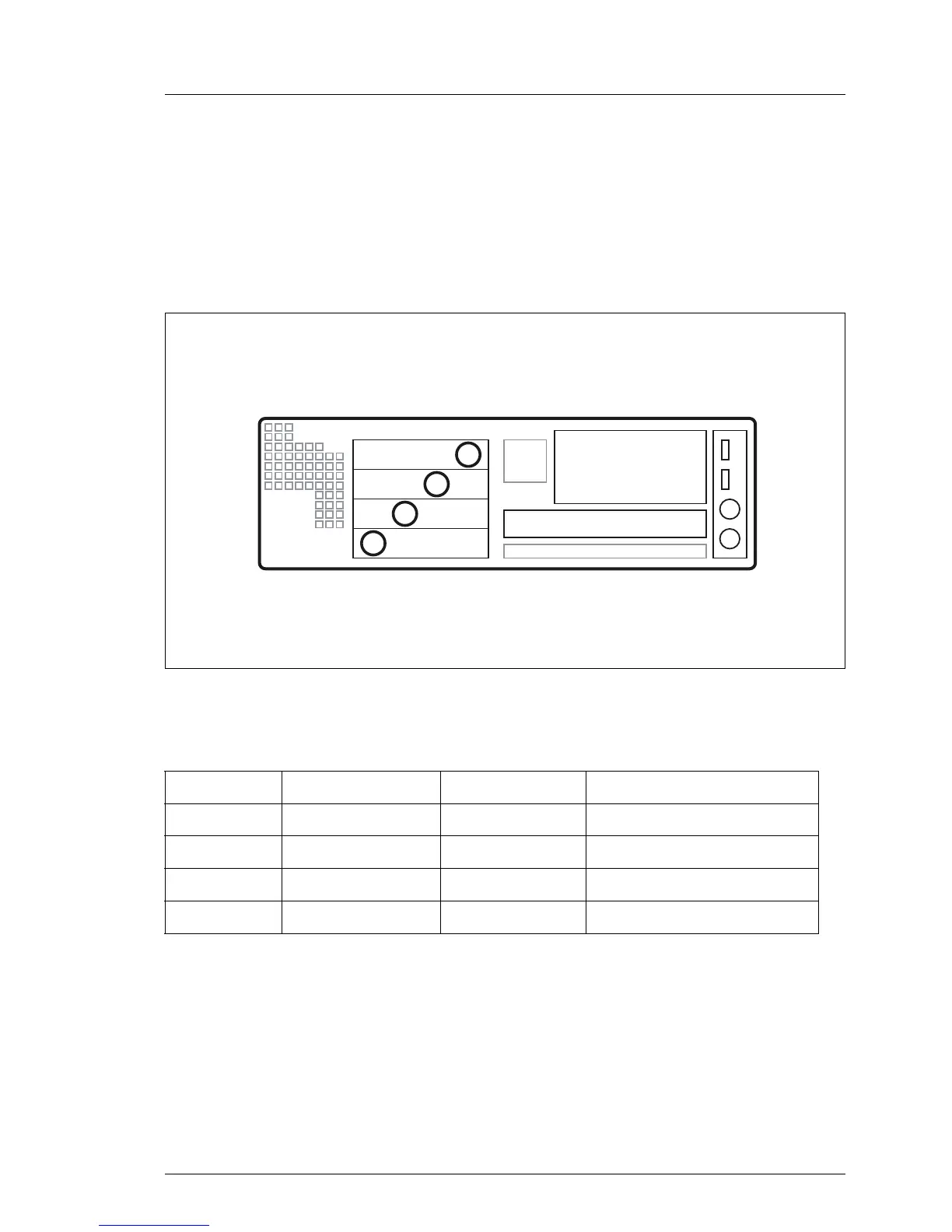

Figure 35: 2.5-inch HDD / SSD mounting order
7.2.1.1 HDD/SSD naming scheme
Bay RAID Manager Channel Logical drive number
43 1 3
22 1 2
31 1 1
10 1 0
1
2
3
4
