Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

256 Upgrade and Maintenance Manual TX1320 M1
Accessible drives
Ê Secure the backup drive to the drive cage with one screw (M3 x 4.5 mm).
I Use the screw hole marked "1st".
Ê Open the front cage as described in section "Opening the front cage" on
page 60.

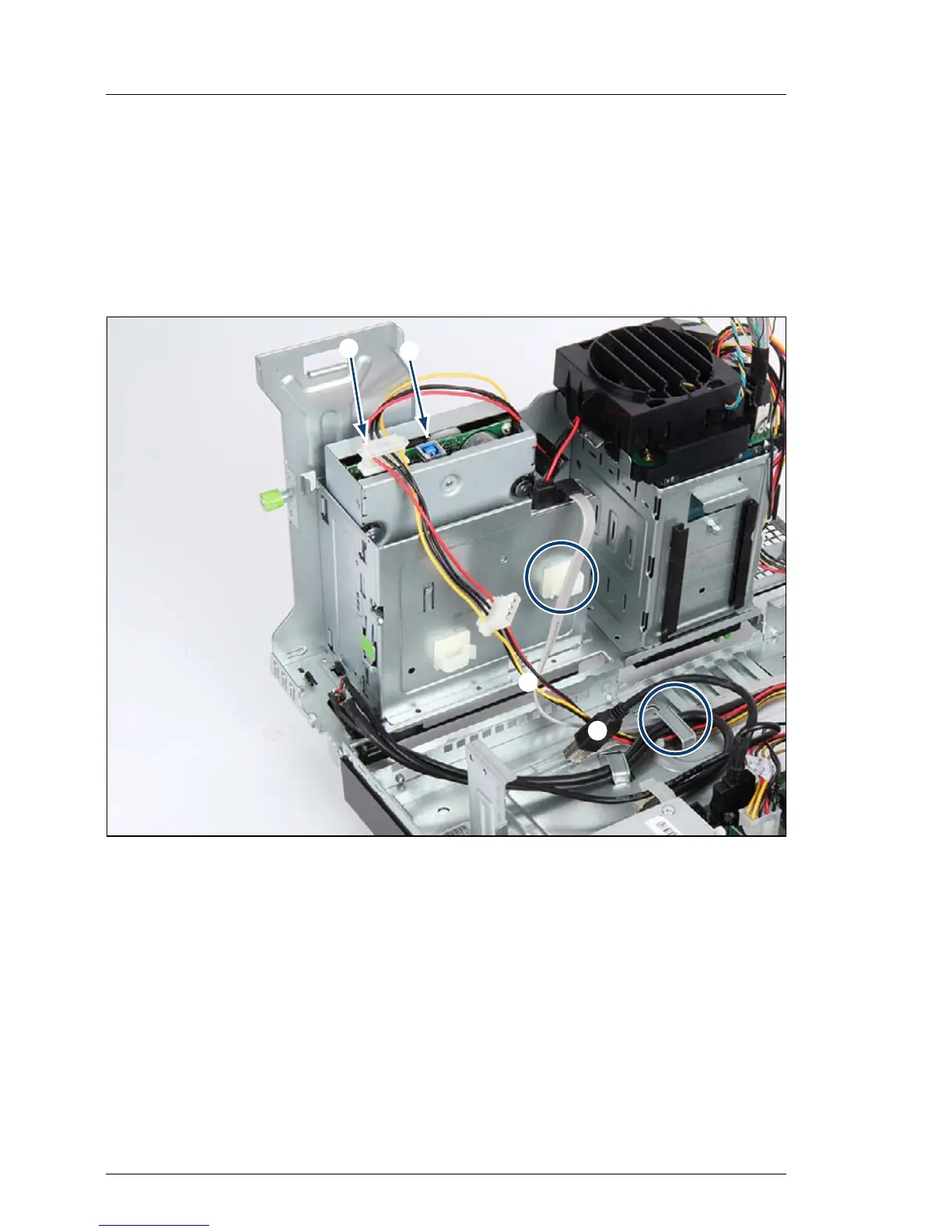

Figure 150: Connecting cables to the backup drive
Ê Connect cables to the backup drive.
1 USB cable Y3973-V91 Type B connector (1)
2 SATA power cable T26139-Y4012-V501 connector P2 (2)
Ê Run the power cable through the right cable clamp on the accessible drive
cage as shown (see circle).
Ê Run the power cable through the cable clamp on the bottom of the server as
shown (see circle).
햲
햳
햲
햳

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
