Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

202 Upgrade and Maintenance Manual TX1320 M1
Expansion cards and backup units

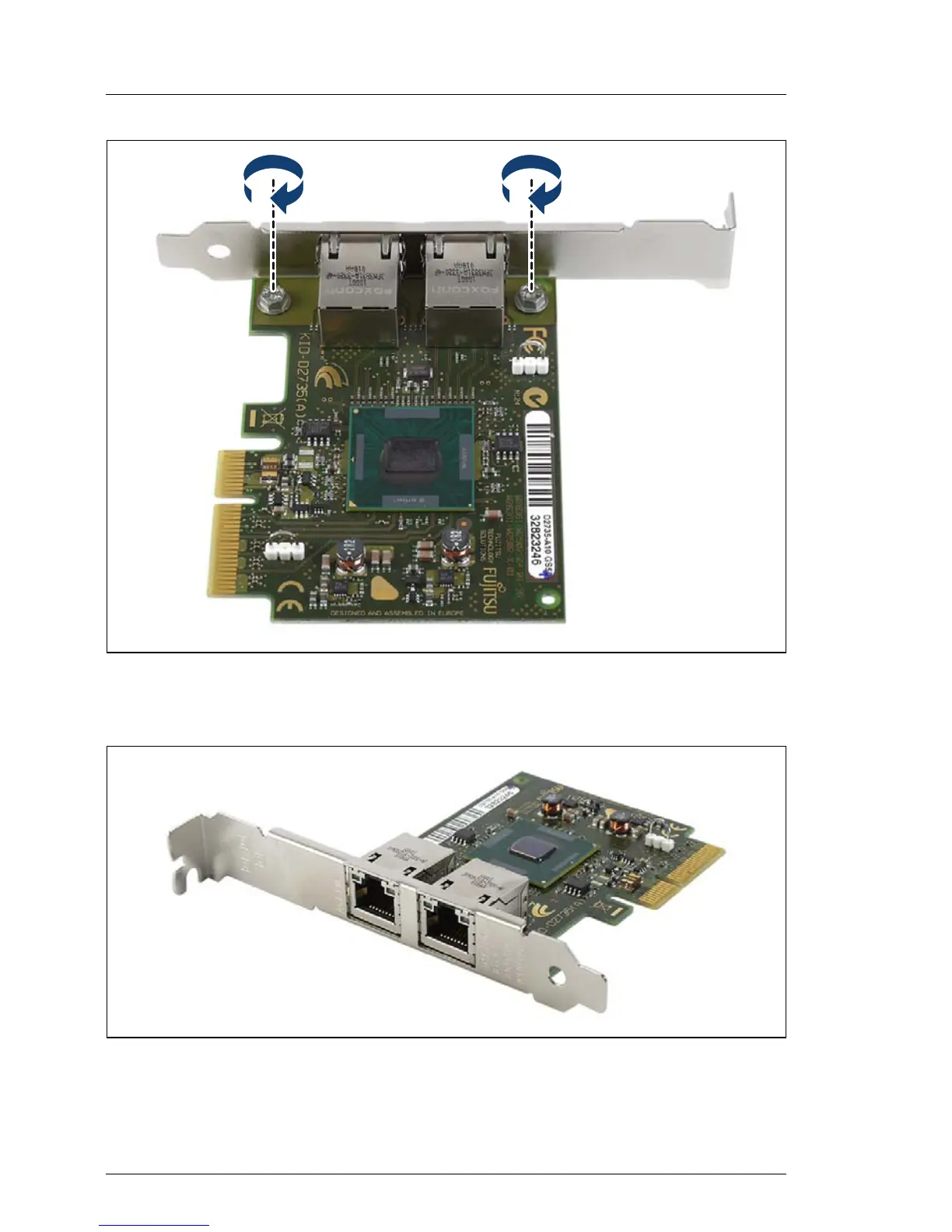

Figure 100: Network adapter D2735 - Mounting the slot bracket (B)
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 101: Network adapter D2735 - Mounting the slot bracket (C)
I Assembled network adapter D2735

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
