206 Upgrade and Maintenance Manual
TX1320 M1
Expansion cards and backup units

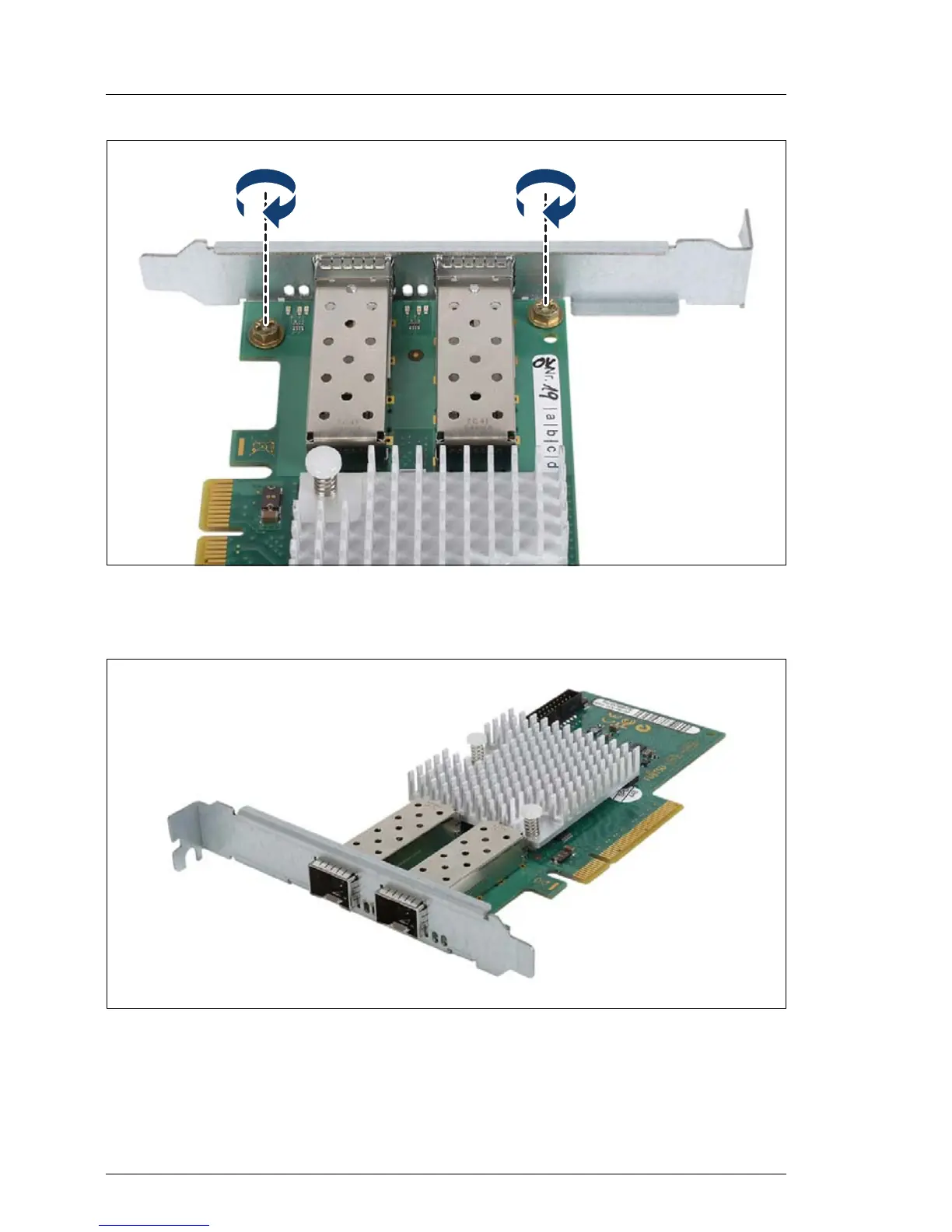

Figure 106: Network adapter D2755 - Mounting the slot bracket (B)
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 107: Network adapter D2755 - Mounting the slot bracket (C)
I Assembled network adapter D2755
