Fujitsu PRIMERGY TX1320 M1

210 Upgrade and Maintenance Manual TX1320 M1
Expansion cards and backup units

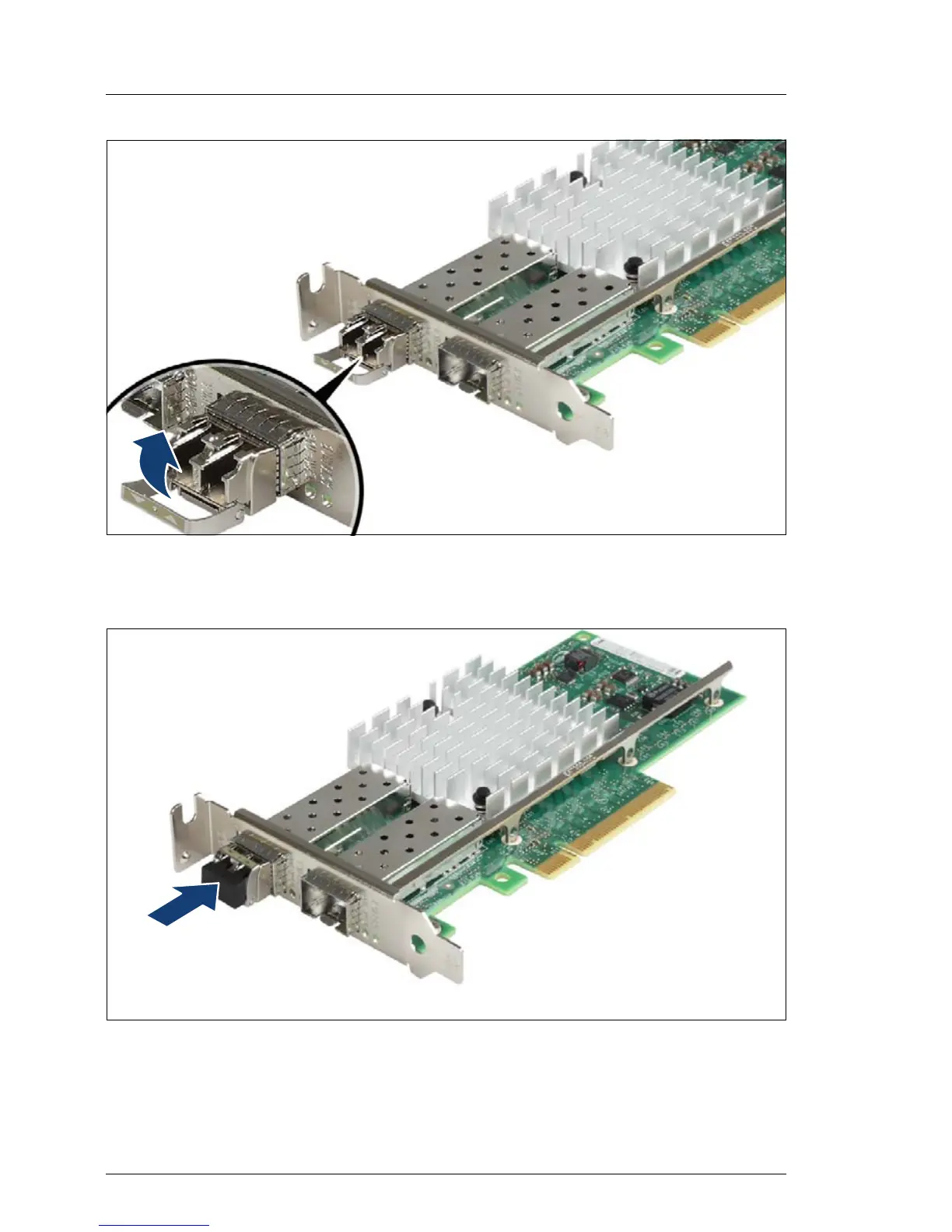

Figure 111: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 112: Attaching the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
