TX1320 M1 Upgrade and Maintenance Manual 213
Expansion cards and backup units

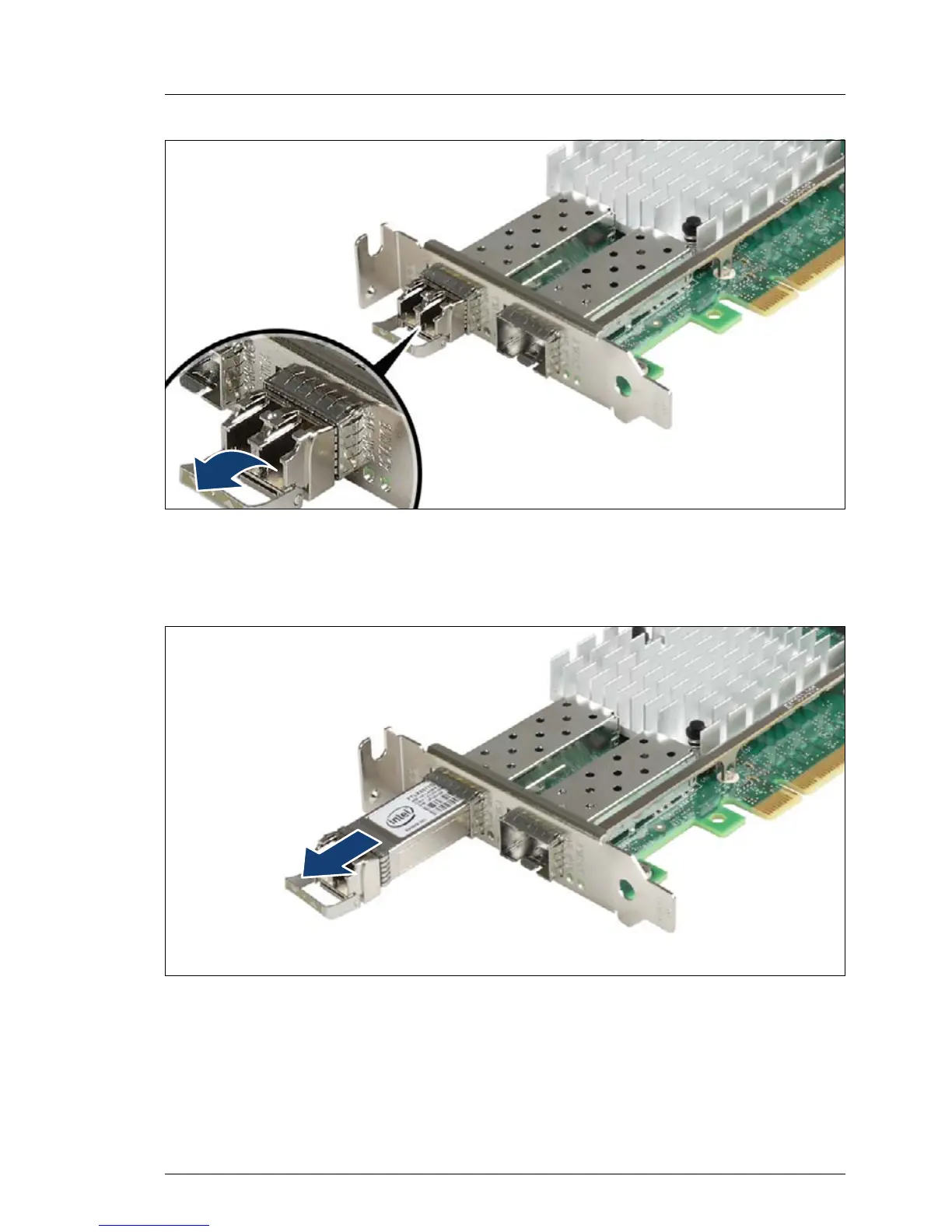

Figure 115: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
Figure 116: Removing the SFP+ transceiver
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Reattach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
