Processors

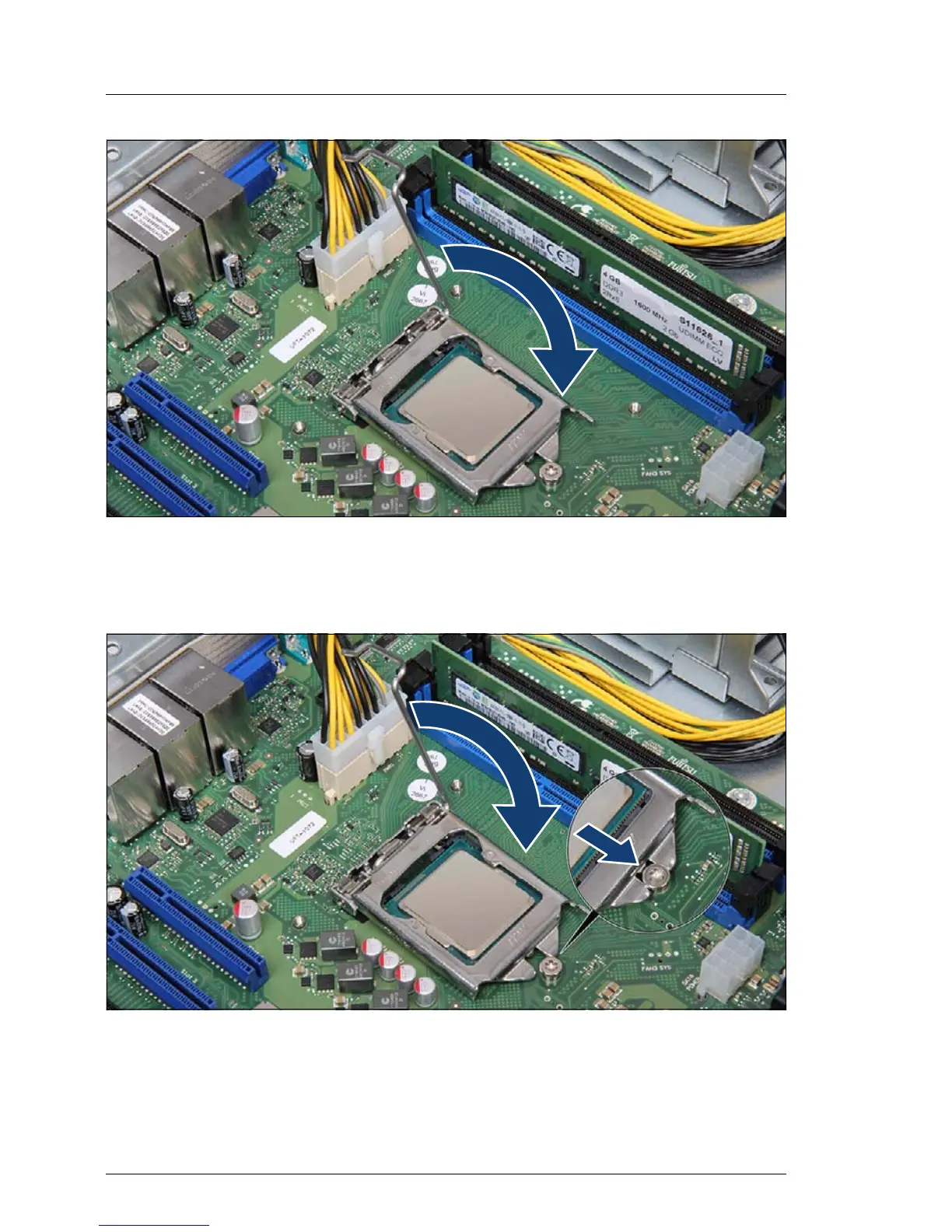

Figure 124: Closing the load plate (A)
Ê Lower the load plate over the processor while leaving the socket lever in the
open position.
Figure 125: Closing the load plate (B)
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
