Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 253
Accessible drives

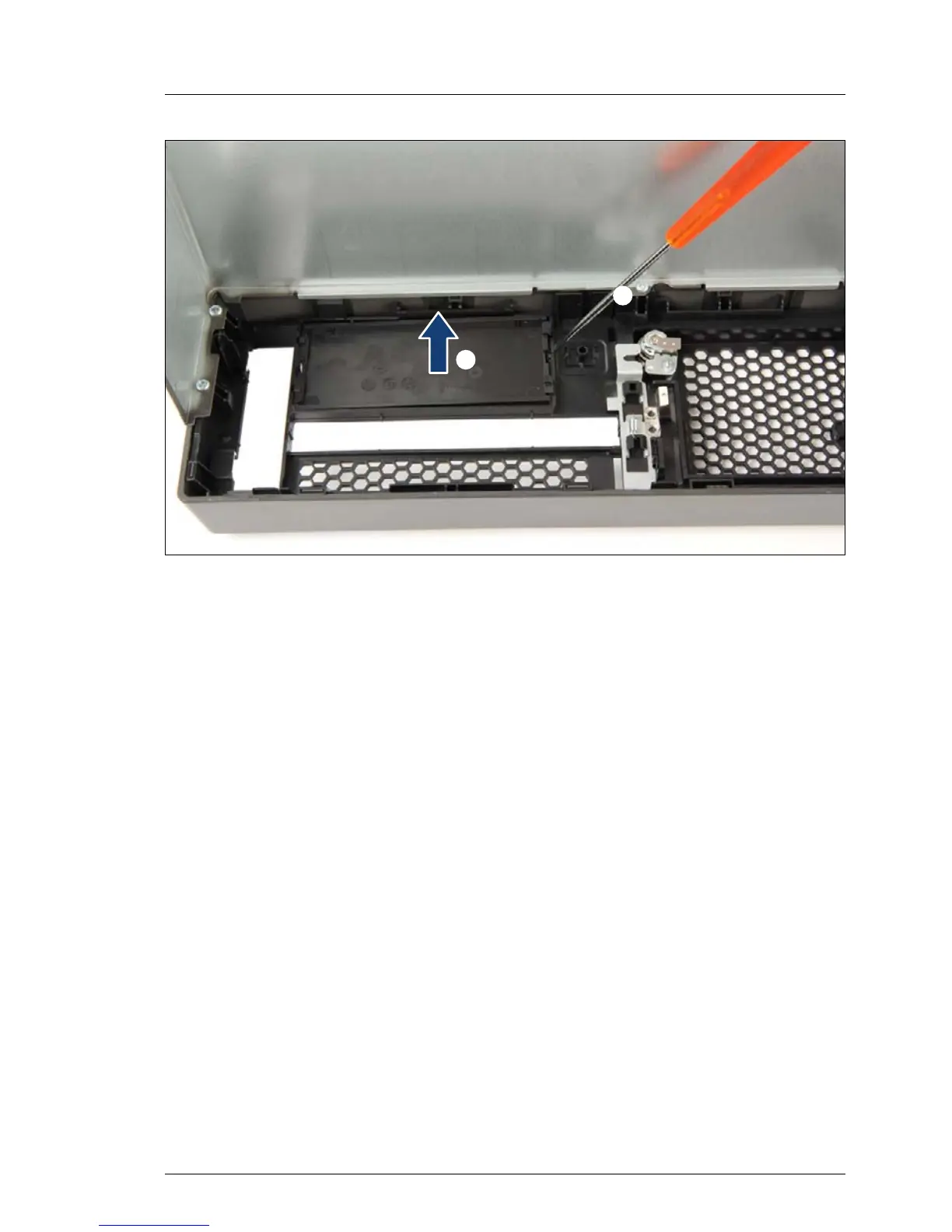

Figure 146: Removing the dummy cover
Ê Disengage the hooks of the dummy cover on the internal side of the
side / top cover (1).
Ê Remove the dummy cover outward from the front of the side / top cover in
the direction of the arrow (2).
/
