Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

278 Upgrade and Maintenance Manual TX1320 M1
Front panel

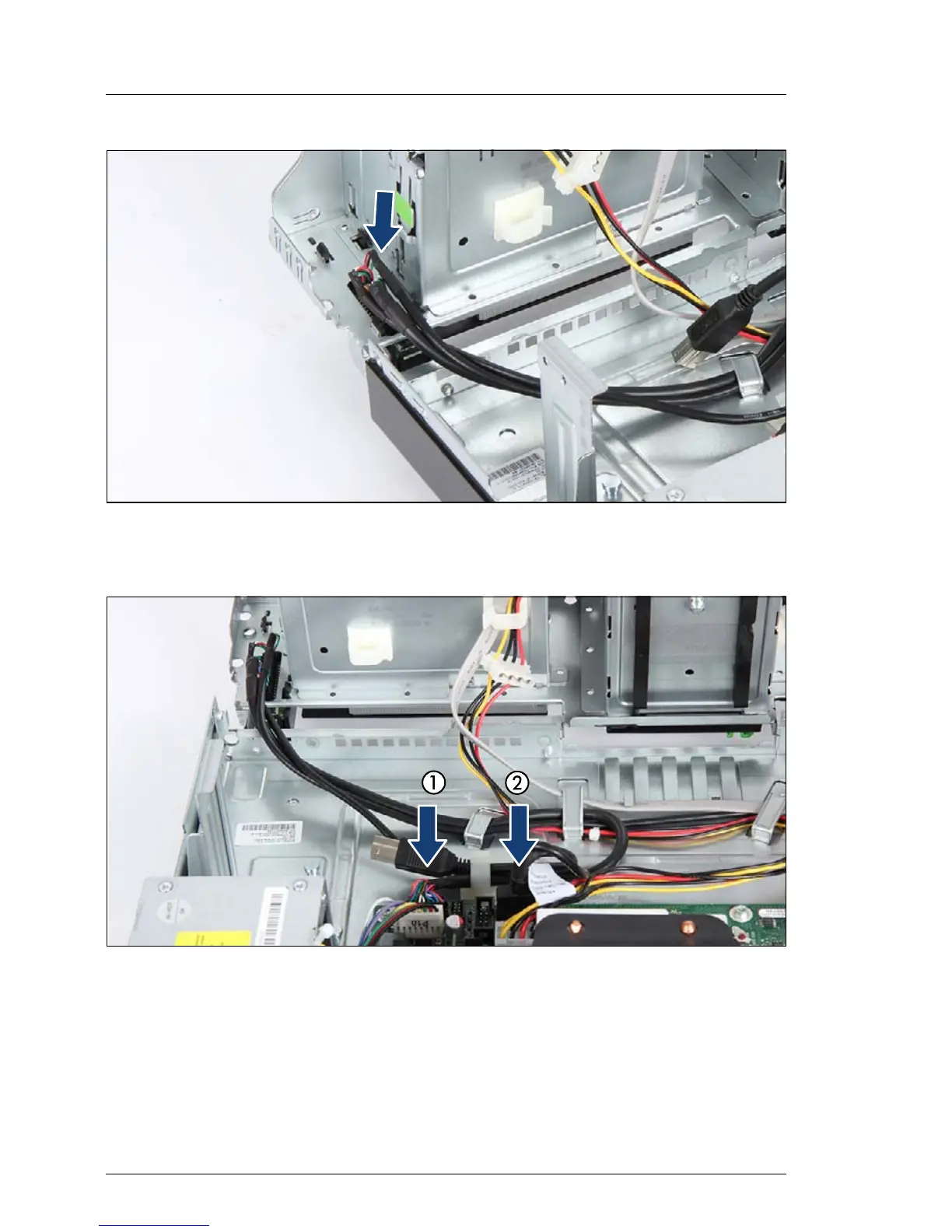

Figure 166: Connecting the front panel cable to the front panel module
Ê Connect the front panel cable to the front panel module.
Figure 167: Connecting the front panel cable to the system board
Ê Connect the front panel cable Y4015-V4 to the system board connector
FRONTPANEL.
Ê Connect the USB cable Y4015-V4 to the system board connector USB
FRONT.
