Basic hardware procedures

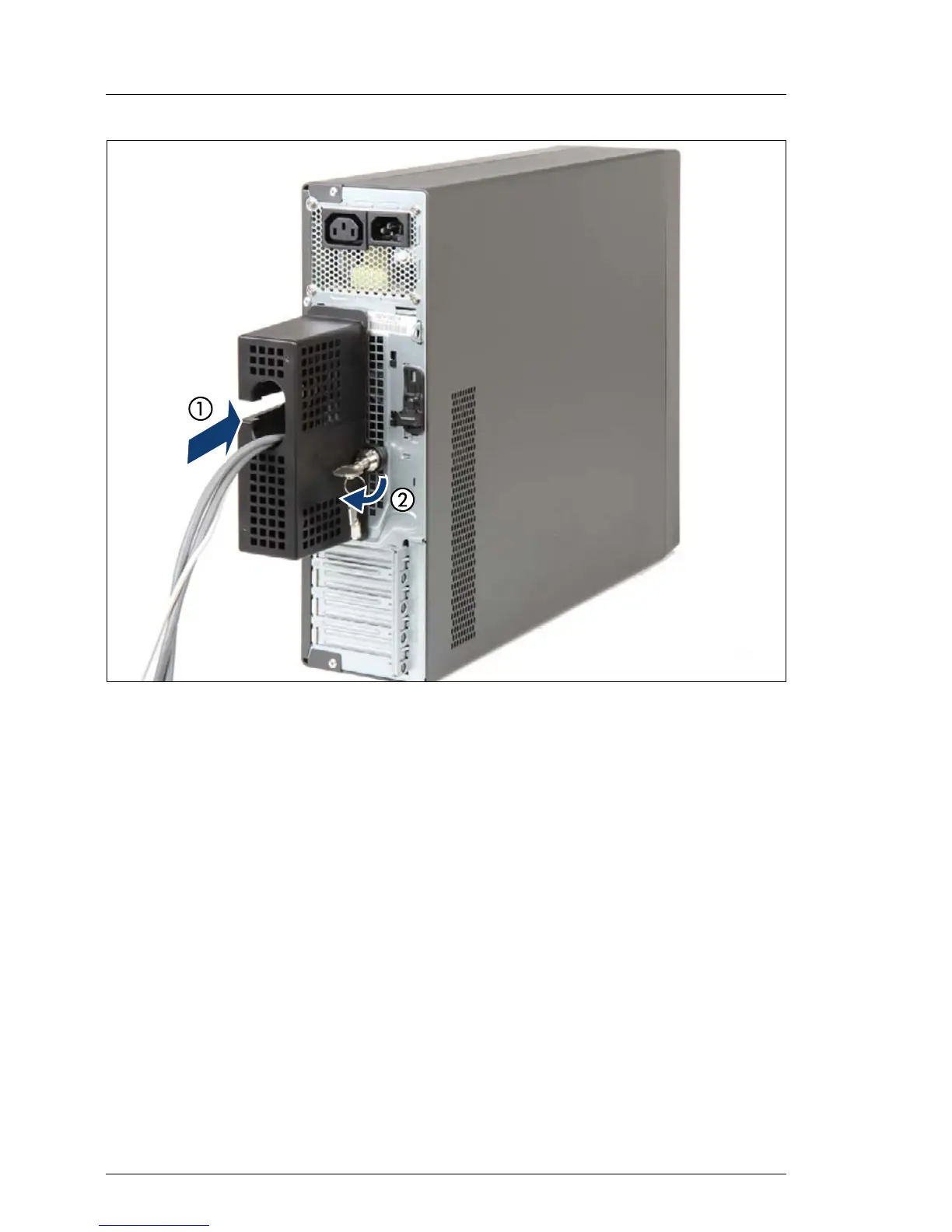

Figure 26: Installing the security cover
Ê Route the cables through the security cover (1).
Ê Insert the screw.
Ê Insert the key.
Ê While pressing the screw turn it clockwise and fasten the security cover (2).
