Pallet Management | Pallet management (option number 22)
14
602
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

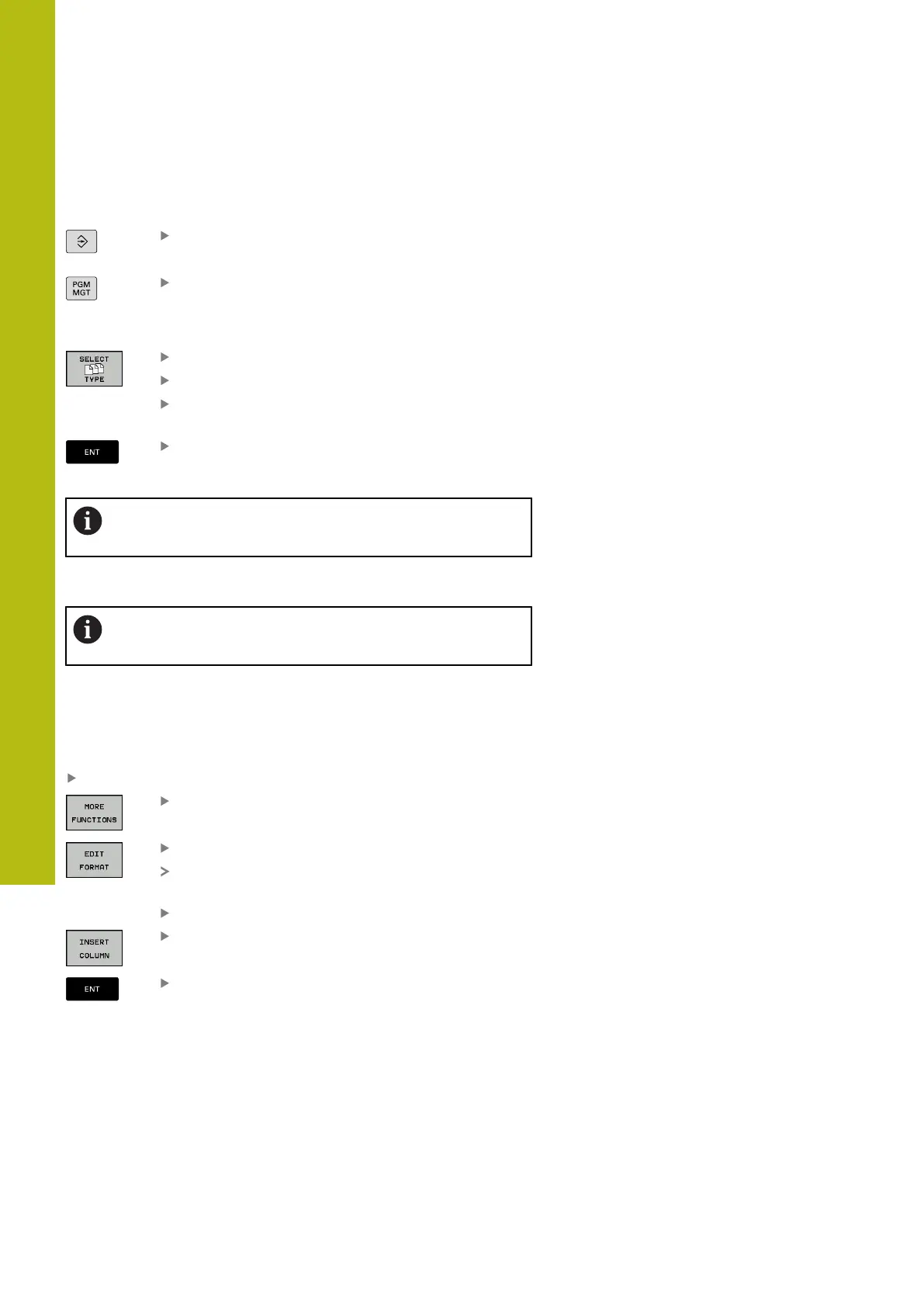

Selecting pallet table
You can select or create a pallet table as follows:
Switch to the Programming mode or a program
run mode
Press the PGM MGT key
If no pallet tables are visible:
Press the SELECT TYPE soft key
Press the SHOW ALL soft key
Select a pallet table with the arrow keys, or enter
a name for a new pallet table (.p)
Press the ENT key
You can select either a list view or form view using the
Screen Layout key.
Inserting or deleting columns
This function is not enabled until the code number
555343 is entered.
Depending on the configuration, a newly created pallet table may
not contain all columns. For tool-oriented working, for example, you
need columns that you have to insert first.
Proceed as follows to insert a column in an empty pallet table:
Open the pallet table
Press the MORE FUNCTIONS soft key
Press the EDIT FORMAT soft key
The control opens a pop-up window displaying
the available columns
Using the arrow keys, select the desired column.
Press the INSERT COLUMN soft key
Press the ENT key
You can remove the column with the DELETE COLUMN soft key.
