MOD Functions | Ethernet interface
19
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
757

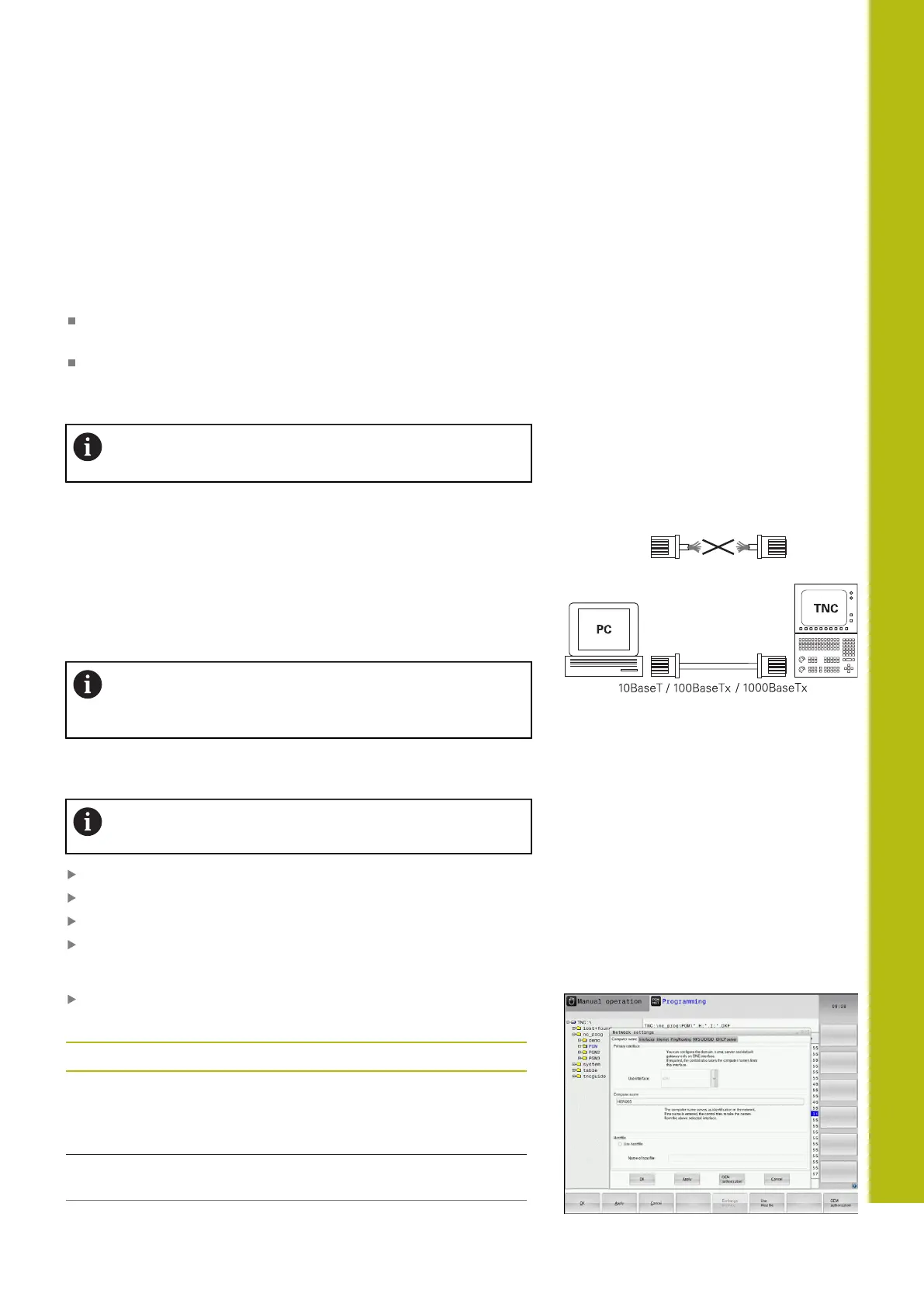

19.12 Ethernet interface
Introduction
The control is shipped with a standard Ethernet card to connect the
control as a client in your network. The control transmits data via
the Ethernet card with
the smb protocol (Server Message Block) for Windows
operating systems, or
The TCP/IP protocol family (Transmission Control
Protocol/Internet Protocol) and with support from the NFS
(Network File System)
Protect your data and your control by running your
machines in a secure network.
Connection possibility
You can connect the Ethernet card in your control to your network
through the RJ45 connection (X26,1000BaseTX, 100BaseTX and
10BaseT), or directly to a PC. The connection is metallically isolated
from the control electronics.
For a 1000Base TX, 100BaseTX, and 10BaseT connection, use a
twisted-pair cable to connect the control to your network.
The maximum possible cable length depends on the
quality grade of the cable, the sheathing, and the type of
network (1000BaseTX, 100BaseTX, or 10BaseT)
Configuring the control
Have a network specialist configure the control.
Press the MOD key
Enter the code number NET123
Press the PGM MGT key
Press the NET soft key
General network settings
Press the CONFIGURE NETWORK soft key to enter the general
network settings. The Computer name tab is active:
Setting Meaning
Primary inter-
face
Name of the Ethernet interface to be integrat-
ed in your company network. Only active if
a second, optional Ethernet interface is avail-
able on the control hardware
Computer
name
Name displayed for the control in your compa-
ny network
