HEIDENHAIN TNC 620 Programming Station User Manual

MOD Functions | Configuring the HR 550FS wireless handwheel
19
770
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

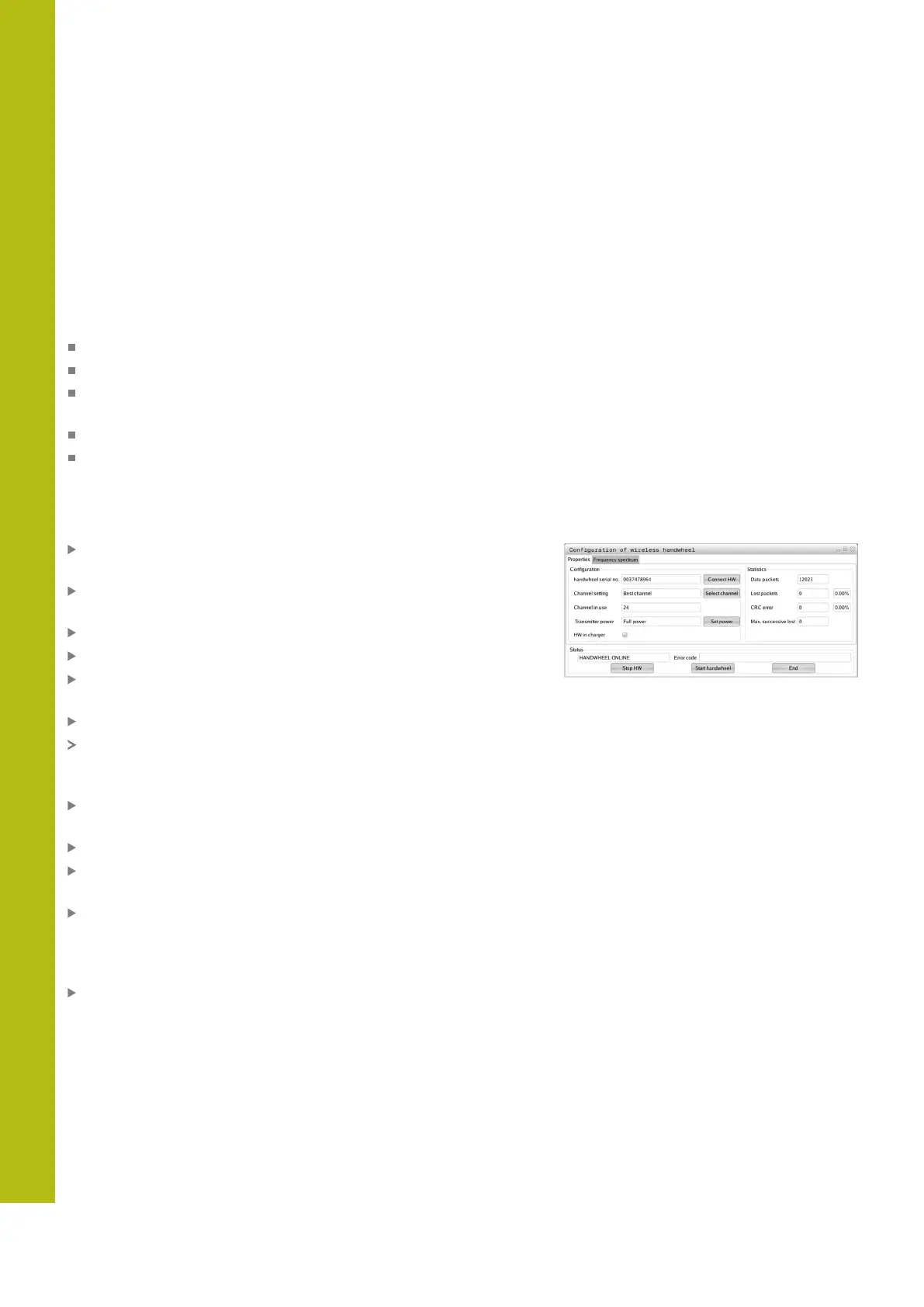

19.15 Configuring the HR 550FS wireless
handwheel
Application
Press the SET UP WIRELESS HANDWHEEL soft key to configure
the HR 550FS wireless handwheel. The following functions are
available:
Assigning the handwheel to a specific handwheel holder
Setting the transmission channel
Analyzing the frequency spectrum for determining the optimum
transmission channel
Select transmitter power
Statistical information on the transmission quality
Assigning the handwheel to a specific handwheel
holder
Make sure that the handwheel holder is connected to the
control hardware.
Place the wireless handwheel you want to assign to the
handwheel holder in the handwheel holder
Press the MOD key to select the MOD function
Select the Machine settings menu
Select the configuration menu for the wireless handwheel:
Press the SET UP WIRELESS HANDWHEEL soft key
Click on the Connect HW button
The control saves serial number of the inserted wireless
handwheel and shows it in the configuration window on the
left next to the Connect HW button.
To save the configuration and exit the configuration menu,
press the END button
Select the Machine settings menu
Select the configuration menu for the wireless handwheel:
Press the SET UP WIRELESS HANDWHEEL soft key
Click the Connect HR button: The control saves the serial
number of the wireless handwheel located in the handwheel
holder and shows it in the configuration window to the left of
the Connect HR button
To save the configuration and exit the configuration menu,
press the END button
