Manual Operation and Setup | Tilting the working plane (option 8)
16
690
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

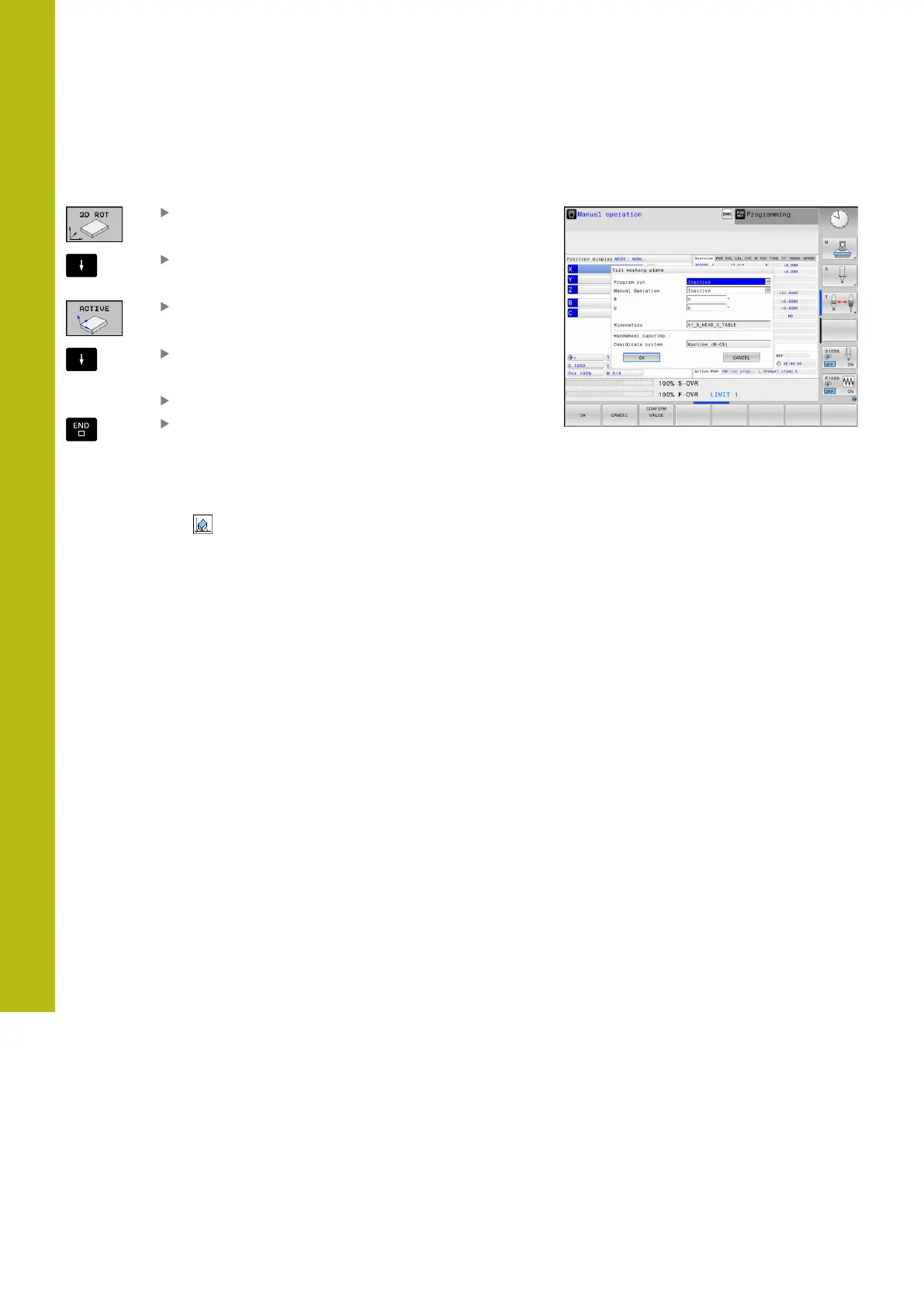

Activating manual tilting:
To select manual tilting, press the 3-D ROT soft
key.
Use the arrow keys to move the cursor to the
menu point Manual operation
To activate manual tilting, press the ACTIVE soft
key
Use the arrow keys to position the cursor on the
desired rotary axis
Enter the tilt angle
Terminate the entry: Press the END key
If the tilted working plane function is active and the control moves
the machine axes in accordance with the tilted axes, the status
display shows the symbol.
If you set the "Tilt working plane" function for the Program run
operating mode to Active, the tilt angle entered in the menu
becomes active in the first block of the machining program. If
you use Cycle 19 WORKING PLANE or the PLANE function in the
machining program, the angle values defined there are in effect.
Angle values entered in the menu will be overwritten.
