MOD Functions | Ethernet interface

758

HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

Setting Meaning

Host file

Only required for special applications:

Name of a file in which the assignments of IP

addresses to computer names is defined

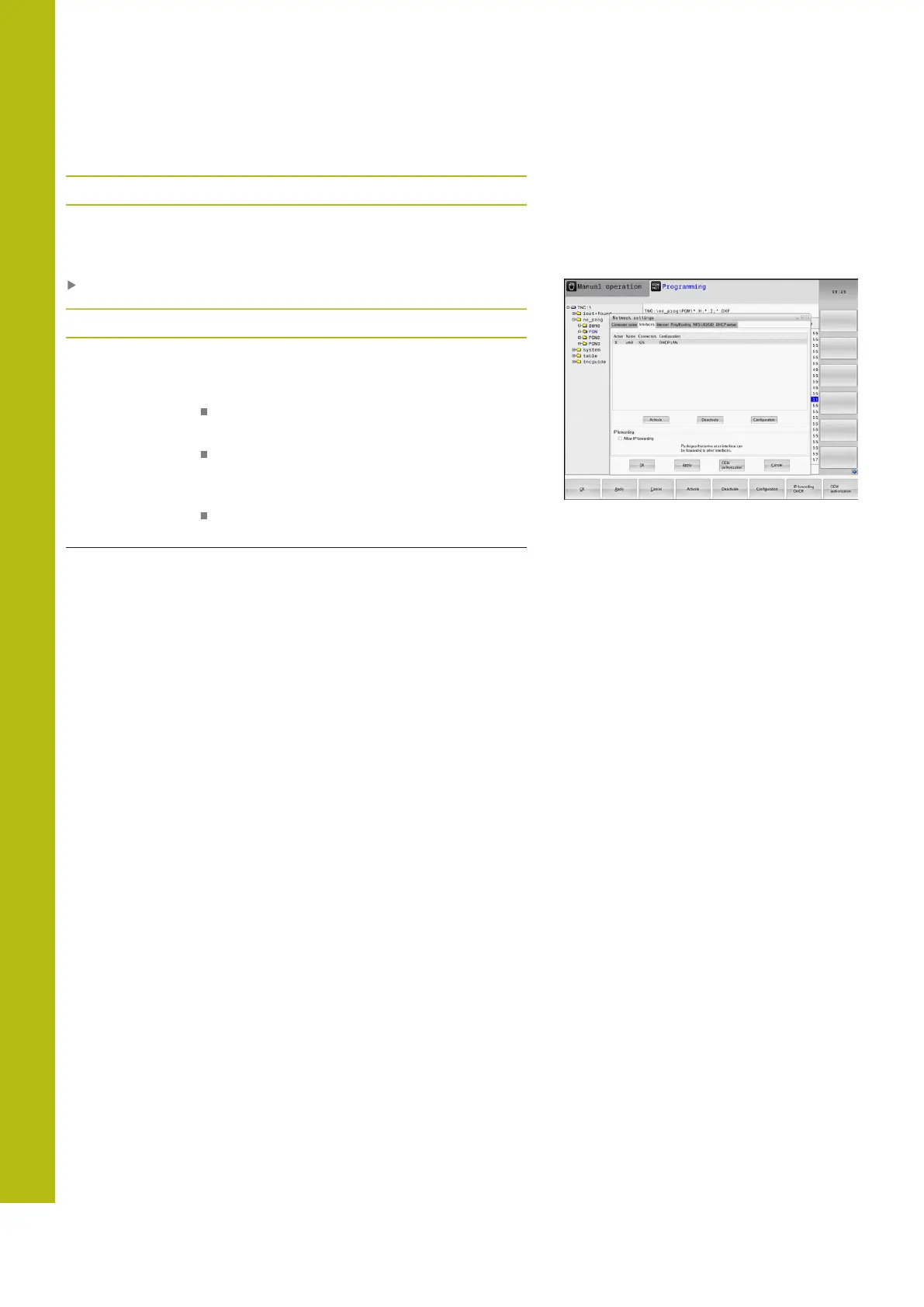

Select the Interfaces tab to enter the interface settings:

Setting Meaning

Interface list

List of the active Ethernet interfaces. Select

one of the listed interfaces (via mouse or

arrow keys)

Activate button: Activate the selected

interface (X appears in the Active column)

Deactivate button: Deactivate the

selected interface (- appears in the Active

column)

Configuration button: Open the

configuration menu

Allow IP

forwarding

This function must be kept deactivated.

Only activate this function if the optionally

available second Ethernet interface should be

accessed externally for diagnostic purposes

via the control. Only do so after instruction by

our Service Department
