HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
The status is indicated by icons in the Preset, TOOL and Pgm
columns.
The icons have the following meanings:

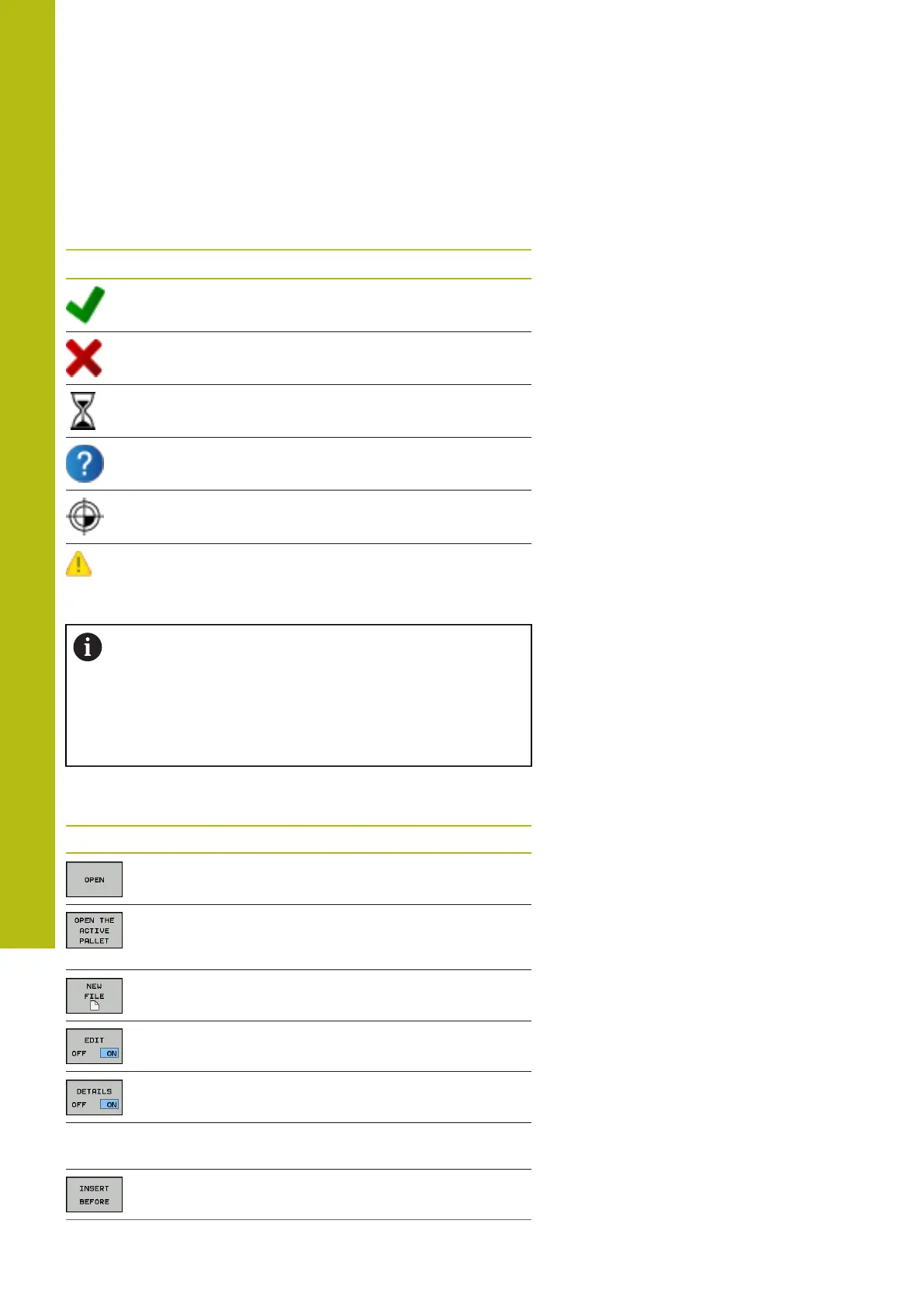

Icon Meaning
Test completed
Test failed, e.g. because of expired tool life
Test not yet completed
Incorrect program structure, e.g.: pallet does
not contain subordinate programs
Workpiece preset is defined
Check input
You can either assign a workpiece preset to
the pallet or to all subordinate programs.
If the tool usage test function on your machine is not
enabled or switched on, no icon is shown in the Pgm
column.
Further information: "Tool usage test", page 254
The Status column is only visible if you are using tool-
oriented machining.
When you open the Batch Process Manager, the following soft
keys are available:
Soft key Function
Open job list
If a job list is opened in Program run, single
block or Program run, full sequence, it is
also opened in the Batch Process Manager
Create new job list
Edit opened job list
Collapse or expand tree structure
INSERT REMOVE Shows the soft keys INSERT BEFORE,
INSERT AFTER and REMOVE
Insert a new Pallet, Fixture or Program
before the cursor position
