Test Run and Program Run | Graphics (option 20)
18
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
707
Moving sectional planes
The default setting of the sectional plane is selected so that it lies
in the working plane in the workpiece center and in the tool axis on
the top surface.
Shift the sectional plane as follows:

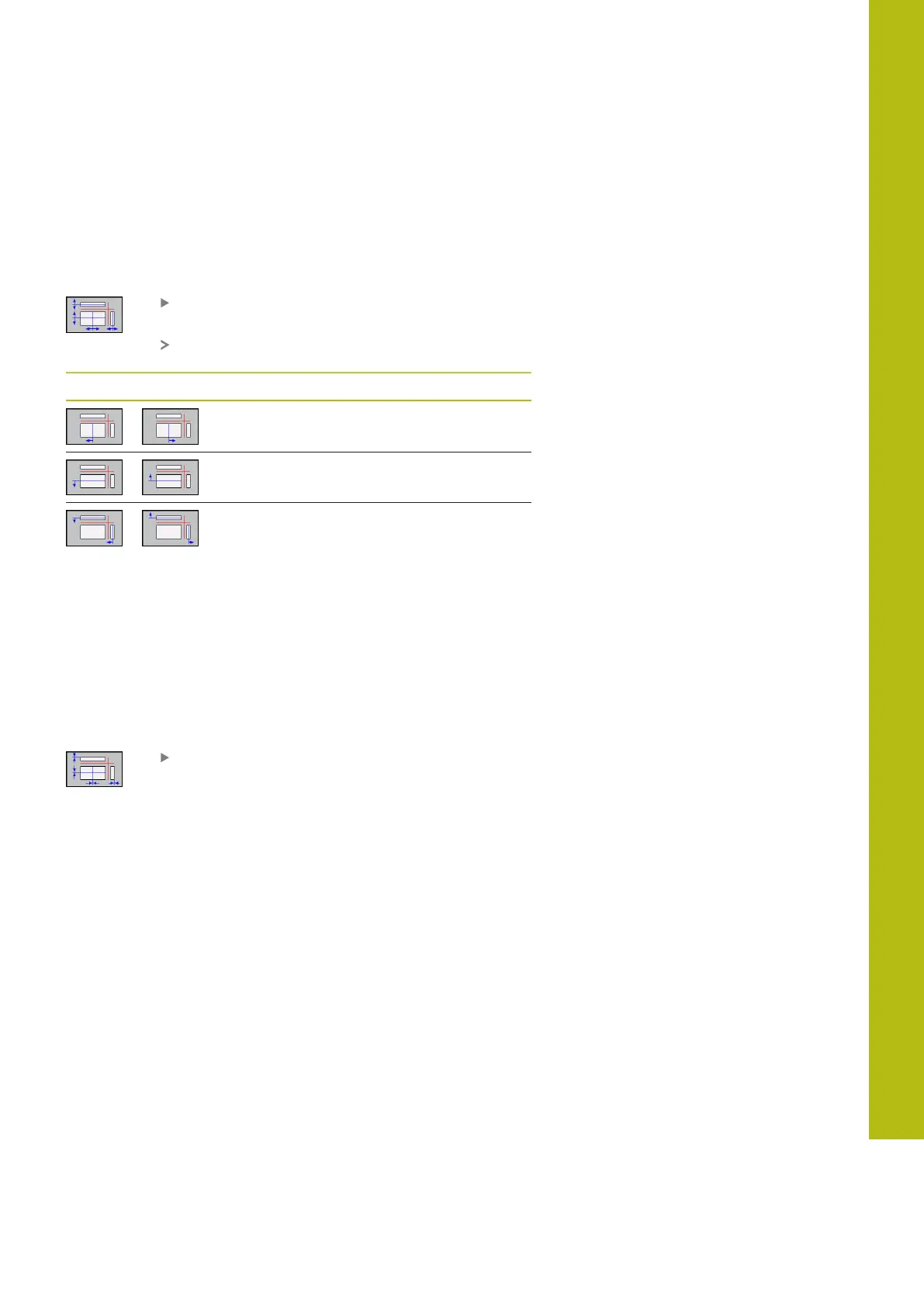

Press the soft key for
shifting the sectional plane
The control displays the following soft keys:
Soft keys Function
Shift the vertical sectional plane to the right
or left
Shift the vertical sectional plane forward or
backward
Shift the horizontal sectional plane upwards
or downwards
The position of the sectional planes is visible during shifting. The
shift remains active, even if you activate a new workpiece blank.
Resetting sectional planes
The shifted sectional plane also remains active for a new workpiece
blank. The sectional plan is automatically reset when the control is
restarted.
You can also move the sectional plane to its default position
manually:
Press the soft key for
resetting the sectional planes soft key
