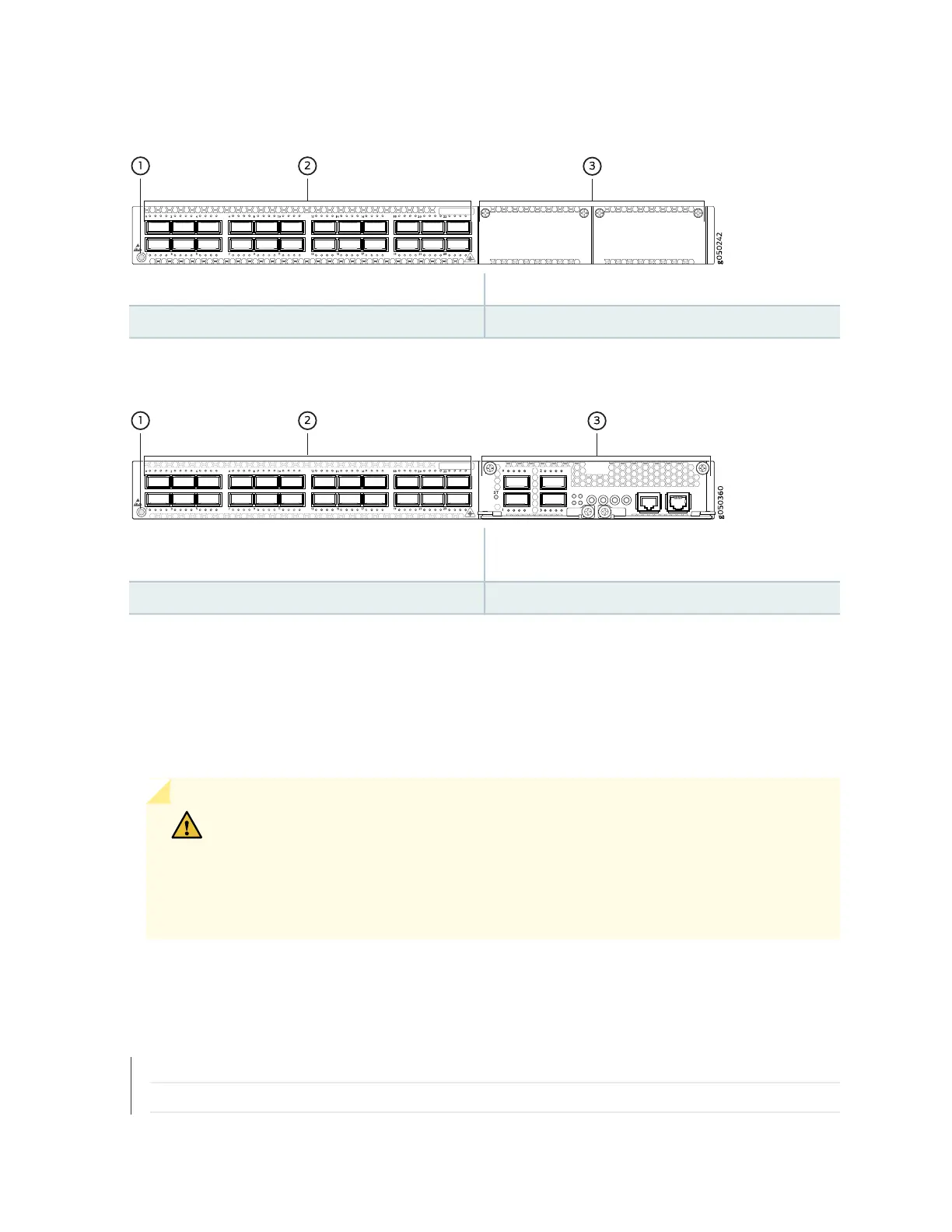

Figure 56: Port Panel QFX5100-24Q Device
3—1— Expansion module bays with cover panels (2)Electrostatic discharge (ESD) terminal
2—QSFP+ access or uplink ports (24)
Figure 57: Port Panel QFX5100-24Q-AA Device
3—1— Expansion module bay (shows a QFX-PFA-4Q
installed)
Electrostatic discharge (ESD) terminal
2—QSFP+ access or uplink ports (24)
You can find information about the optical transceivers supported on your Juniper device by using the
Hardware Compatibility Tool. In addition to transceiver and connection type, the optical and cable
characteristics–where applicable–are documented for each transceiver. The Hardware Compatibility Tool
enables you to search by product, displaying all the transceivers supported on that device, or category, by
interface speed or type. The list of supported transceivers for the QFX5100 is located at
https://pathfinder.juniper.net/hct/product/#prd=QFX5100.
CAUTION: If you face a problem running a Juniper Networks device that uses a
third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC)
can help you diagnose the source of the problem. Your JTAC engineer might recommend
that you check the third-party optic or cable and potentially replace it with an equivalent
Juniper Networks optic or cable that is qualified for the device.
RELATED DOCUMENTATION
Port Panel of a QFX5100-24Q Device | 32
Port Panel of a QFX5100-24Q-AA Device
139
