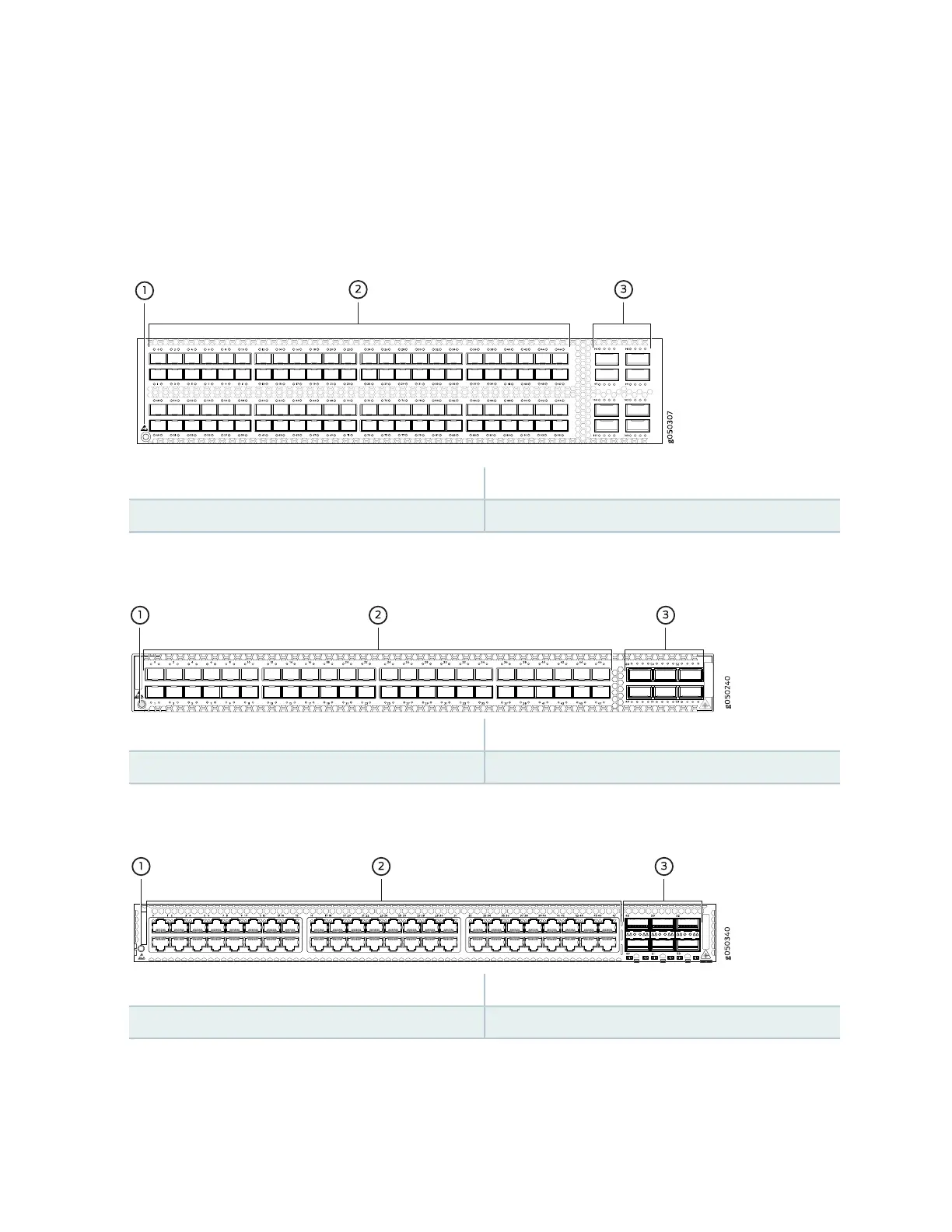

Figure 53 on page 138 shows the location of SFP+ and QSFP+ ports for the QFX5100-96S,
Figure 54 on page 138 shows these ports for the QFX5100-48S device, Figure 55 on page 138 shows the
RJ45 and QSFP+ ports for the QFX5100-48T device, and Figure 56 on page 139 shows the location of
QSFP+ ports for the QFX5100-24Q device.
Figure 53: Port Panel QFX5100-96S Device
3—1— QSFP+ uplink ports (8)Electrostatic discharge (ESD) terminal
2—SFP+ access ports (96)
Figure 54: Port Panel QFX5100-48S Device
3—1— QSFP+ uplink ports (6)Electrostatic discharge (ESD) terminal
2—SFP+ access ports (48)
Figure 55: Port Panel QFX5100-48T Device
3—1— QSFP+ uplink ports (6)Electrostatic discharge (ESD) terminal
2—RJ45 access ports (48)
138
