CAUTION: Configuring the two management interfaces within the same subnet is not
supported.
NOTE: You cannot use the management ports to perform the initial configuration of the QFX5100
device. You must configure the management ports before you can successfully connect to the
QFX5100 switch using these ports. See Configure a QFX5100 Device.
Ensure that you have an appropriate cable available. See “Cable Specifications for Console and Management
Connections for the QFX Series” on page 146 and The Hardware Compatibility Tool.
To connect a QFX5100 switch to a network for out-of-band management (see Figure 82 on page 297):
1. Connect one end of the cable to one of the management ports (labeled C0 and
C1) on the QFX5100 switch.
2. Connect the other end of the cable to the management switch (see Figure 82 on page 297).

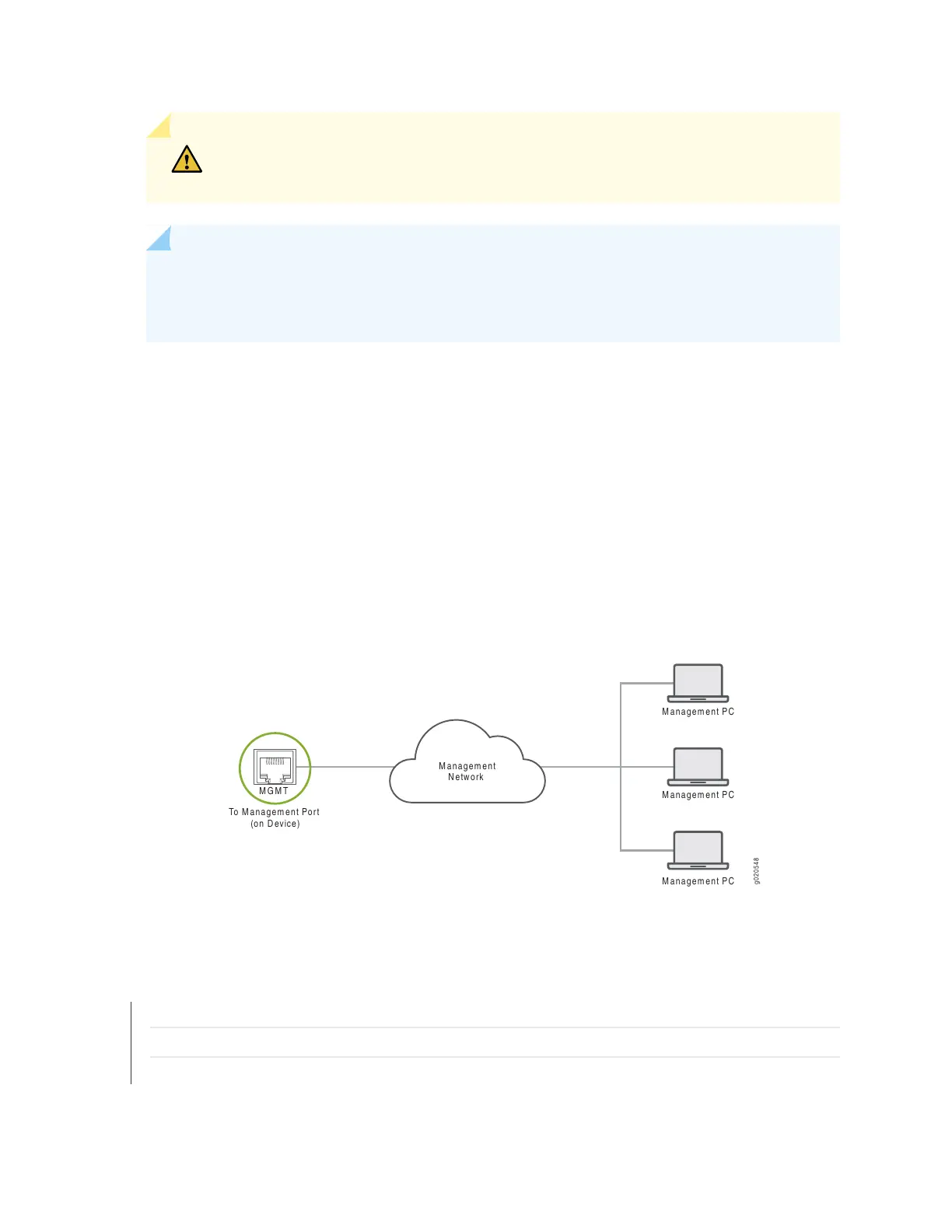

Figure 82: Connecting a QFX5100 Switch to a Network for Out-of-Band Management
g020548
Management PC
Management PC
Management PC
Management
Network
To Management Port
(on Device)
MGMT
RELATED DOCUMENTATION
Management Panel of a QFX5100 Device
Management Port Connector Pinouts for the QFX Series | 132
Connecting a QFX Series Device to a Management Console | 293
297

Juniper QFX5110 Series Specifications

General

Rack Units	1U
Operating System	Junos OS
Form Factor	Fixed
Management	CLI, SNMP, NETCONF
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 90% non-condensing
AC Power Input	100-240 VAC
Power Supply	Redundant, hot-swappable
