1. Secure the provided protective earthing terminal bracket to the threaded post on the QFX3500 device
left front mounting bracket with the nut provided. The posts on the protective earthing terminal bracket
should point to the left. See Figure 105 on page 335.

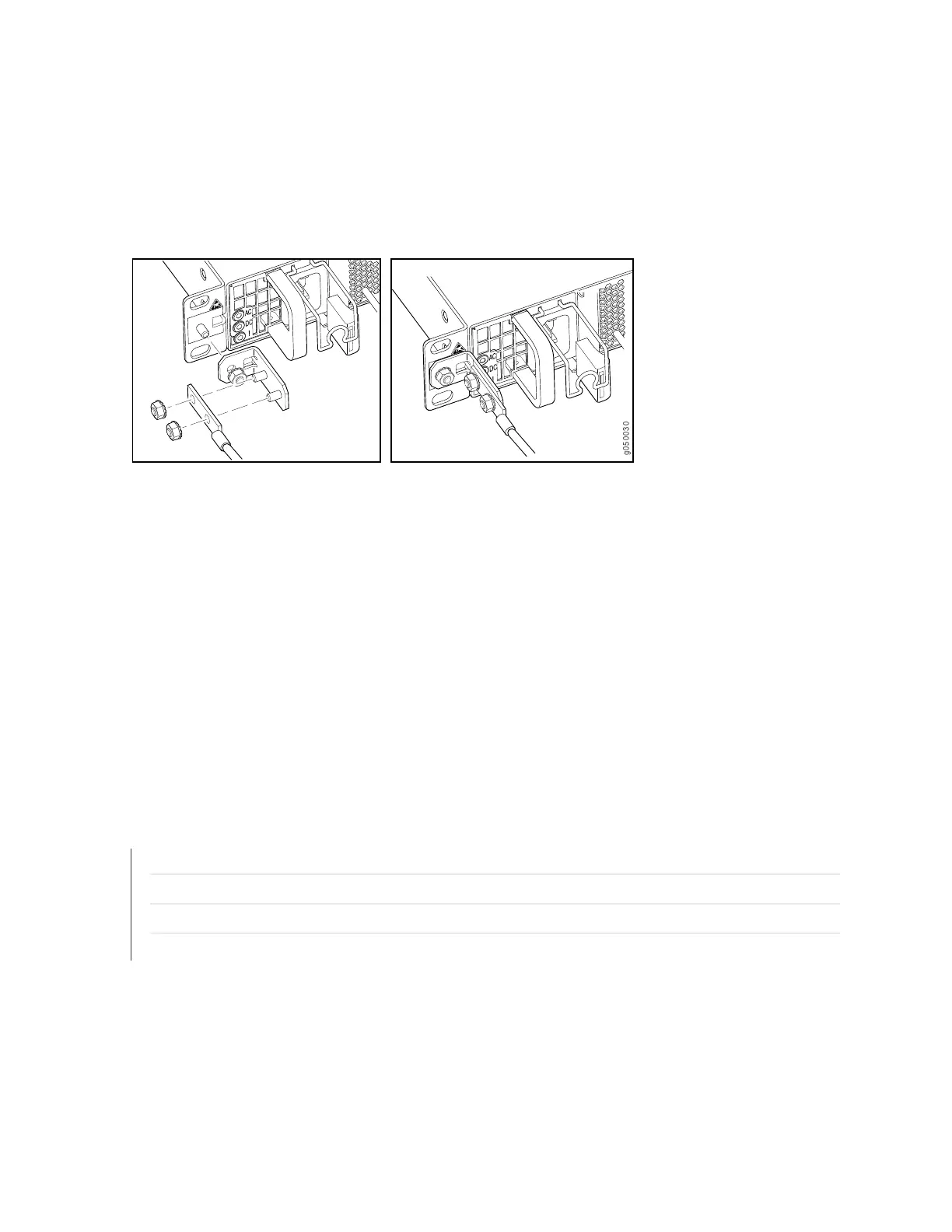

Figure 105: Connecting a Grounding Cable to a QFX3500 Device
g050030
2. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the device
is mounted.
3. Place the grounding lug attached to the grounding cable over the protective earthing terminal on the
protective earthing terminal bracket.
4. Secure the grounding lug to the protective earthing terminal with two nuts.
5. Dress the grounding cable and ensure that it does not touch or block access to other device components
and that it does not drape where people could trip over it.
RELATED DOCUMENTATION
General Safety Guidelines and Warnings | 203
Grounded Equipment Warning | 230
Connecting AC Power to a QFX3500, QFX3600, or QFX3600-I Device | 309
Connecting DC Power to a QFX3500, QFX3600, or QFX3600-I Device | 312
335

Juniper QFX5110 Series Specifications

General

Rack Units	1U
Operating System	Junos OS
Form Factor	Fixed
Management	CLI, SNMP, NETCONF
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 90% non-condensing
AC Power Input	100-240 VAC
Power Supply	Redundant, hot-swappable
