Ensure that you have the following parts and tools available to install a power supply in a QFX3600 device:
•
ESD grounding strap
To install a power supply in a QFX3600 device (see Figure 157 on page 448):
1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the
chassis.
2. Taking care not to touch power supply components, pins, leads, or solder connections, remove the
power supply from its bag.
3. Using both hands, place the power supply in the power supply slot on the rear panel of the device and
slide it in until it is fully seated and the locking lever slides into place.

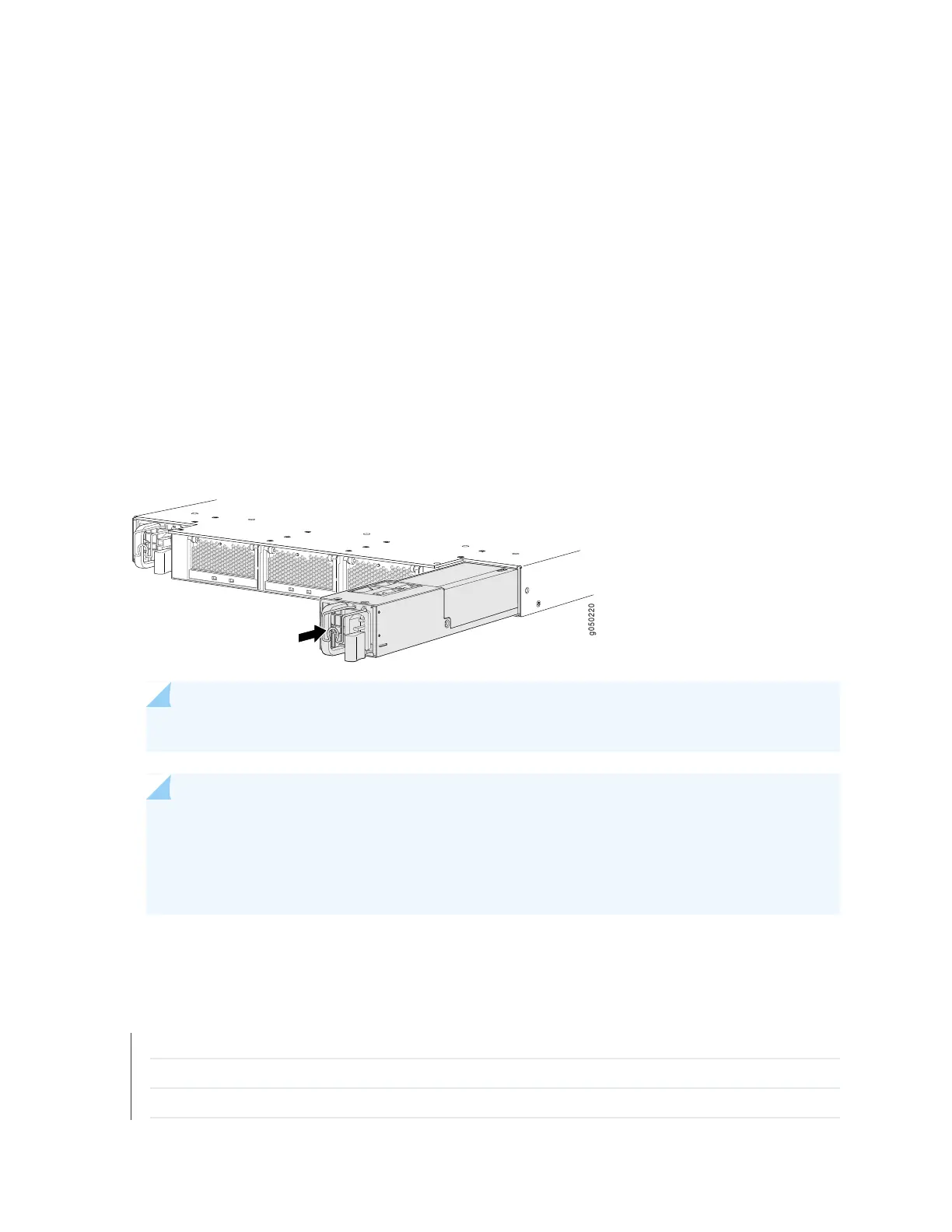

Figure 157: Installing a Power Supply in a QFX3600 or QFX3600-I Device
NOTE: Each power supply must be connected to a dedicated power source outlet.
NOTE: If you have a Juniper Care service contract, register any addition, change, or upgrade of
hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/
. Failure to do so can result in significant delays if you need replacement parts. This note does
not apply if you replace existing components with the same type of component.
RELATED DOCUMENTATION
AC Power Supply for a QFX3500, QFX3600, or QFX3600-I Device
DC Power Supply for a QFX3500, QFX3600, or QFX3600-I Device
Field-Replaceable Units for QFX3600 and QFX3600-I Devices
