To install a fan tray in a QFX3600 or QFX3600-I device (see Figure 159 on page 451):
1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the
chassis.
2. Taking care not to touch the connectors, remove the fan tray from its bag.
3. Using both hands, align the tray with the fan tray slot on the rear panel of the chassis and slide it in
until it is fully seated.

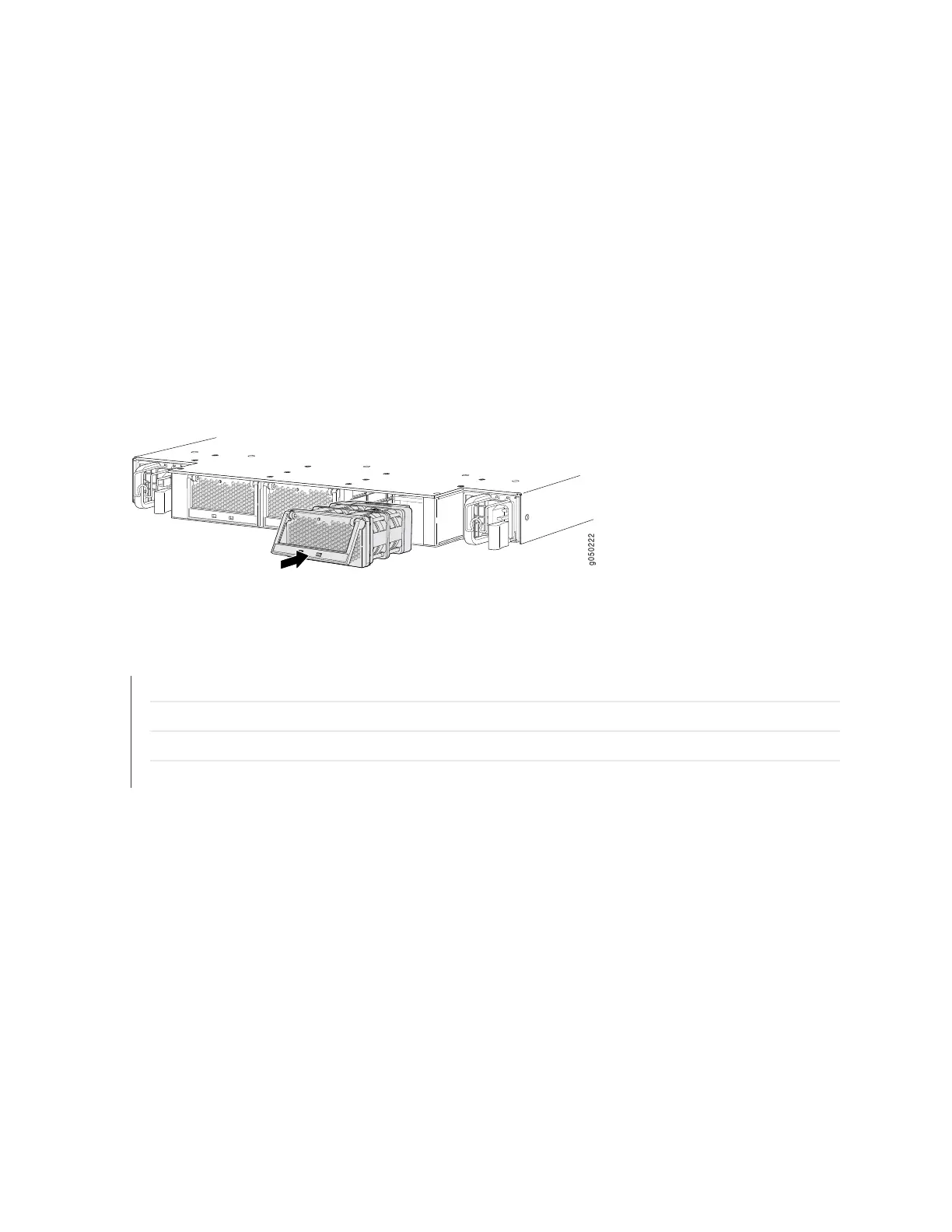

Figure 159: Installing a Fan Tray in a QFX3600 or QFX3600-I Device
