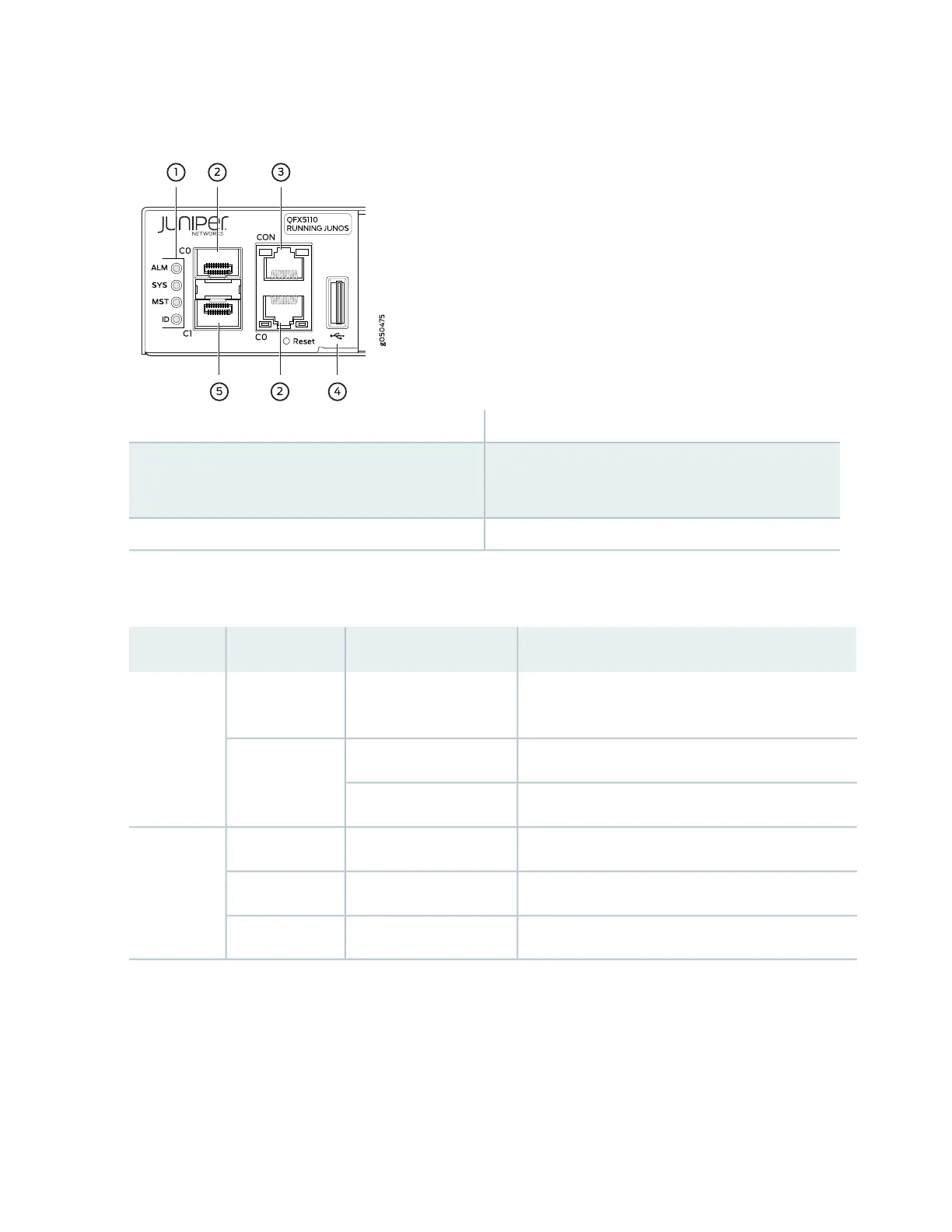

Figure 182: Management Port LEDs on a QFX5110
4—1— USB portStatus LEDs
5—2— em1–SFP management Ethernet port (C1)
cage (socket for either 10/100/1000BASE-T RJ-45
SFP or 1-GbE fiber SFP)
em0–RJ-45 (10/100/1000BASE-T) management
Ethernet port (C0)
3—RJ-45 console port (CON))
Table 73 on page 497 describes the management port LEDs.
Table 73: Management Port LEDs on a QFX5110
DescriptionStateColorLED
No link is established, there is a fault, or the link is
down.
OffUnlitLink/Activity
A link is established, but there is no link activity.On steadilyGreen
A link is established, and there is link activity.Blinking or flickering
Either the port speed is 10 M or the link is down.OffUnlitStatus
The port speed is 1000 M.On steadilyGreen
The port speed is 100 M.On steadilyAmber
