3 Audio Generator Functions
106 Keysight U8903B User’s Guide
Dual waveform
Dual waveform allows you to generate a composite waveform that is the summation of two
independent sine waveforms. Dual sine waveforms are useful in testing the intermodulation
distortion characteristics of an audio system.
Dual waveform mode is applicable for the analog, digital, and Bluetooth generator. The
waveform configuration for dual waveform is displayed as shown in Figure 3-10,
Figure 3-11, and Figure 3-12 for the analog, digital, and Bluetooth generator respectively.

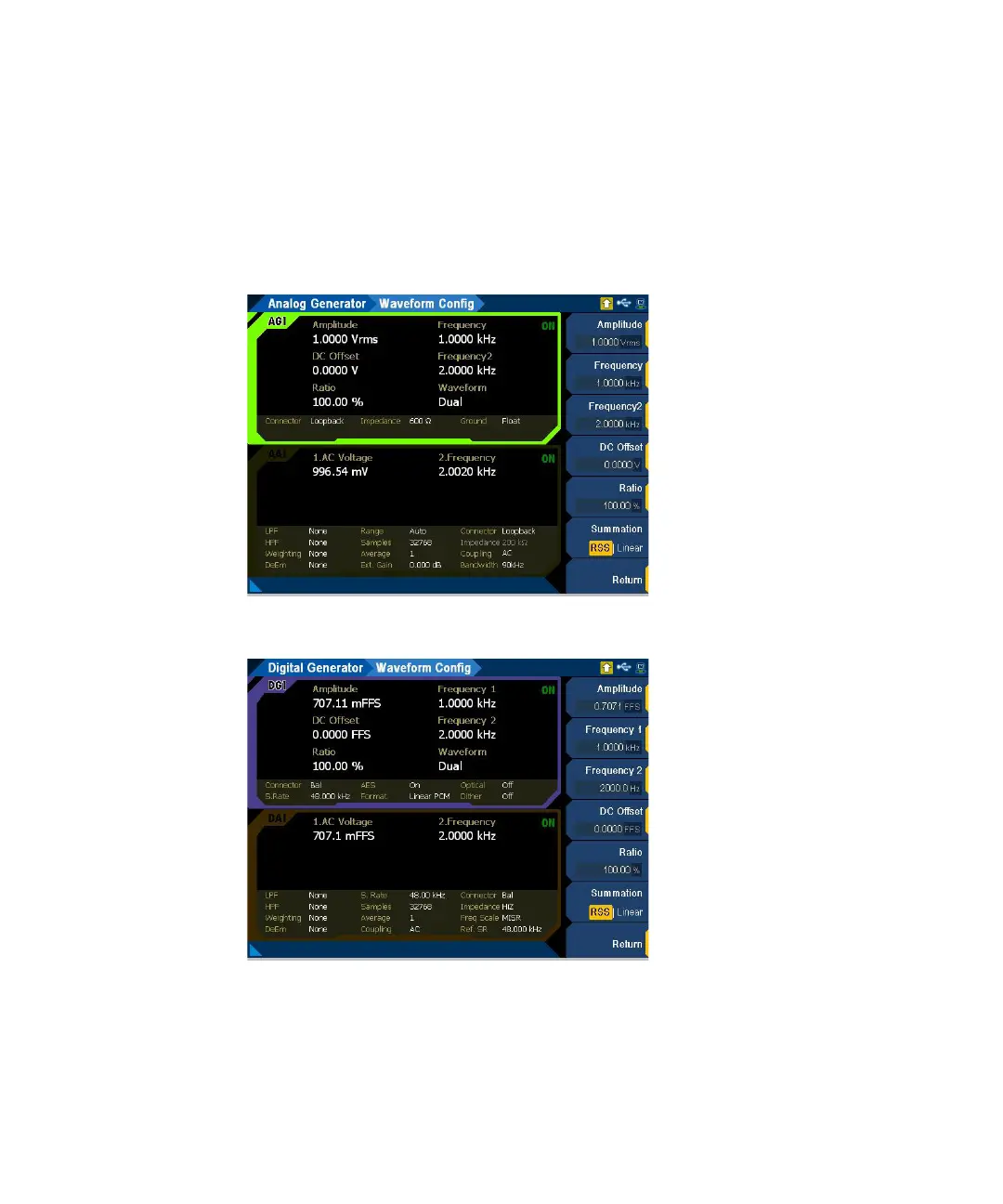

Figure 3-10 Analog Generator > Waveform Config menu page (dual waveform)
Figure 3-11 Digital Generator > Waveform Config menu page (dual waveform)
