Keysight U8903B - Crosstalk

7 Test Sequence Application
334 Keysight U8903B User’s Guide
Crosstalk
Crosstalk is the unwanted leakage or bleed of a signal from one or more channels to other
channels in a DUT. Crosstalk measurement provides the measurement of the crosstalk into
the unstimulated DUT channel(s) when one channel is stimulated.
The generator will output the test signal to the DUT on the selected driven channel. The
crosstalk in each of the remaining channels is then measured. The crosstalk measurement
settings allows you to configure the signal generation settings and signal analysis settings.
The crosstalk measured in each channels are displayed in a bar chart (Crosstalk). Refer to
“Measurement Results” on page 399 for more information on the respective result menu
page. Use the arrow keys to navigate through the respective tabs and to display the menu
page.
Signal generation
The crosstalk signal generation settings menu page is displayed as shown in Figure 7-29.

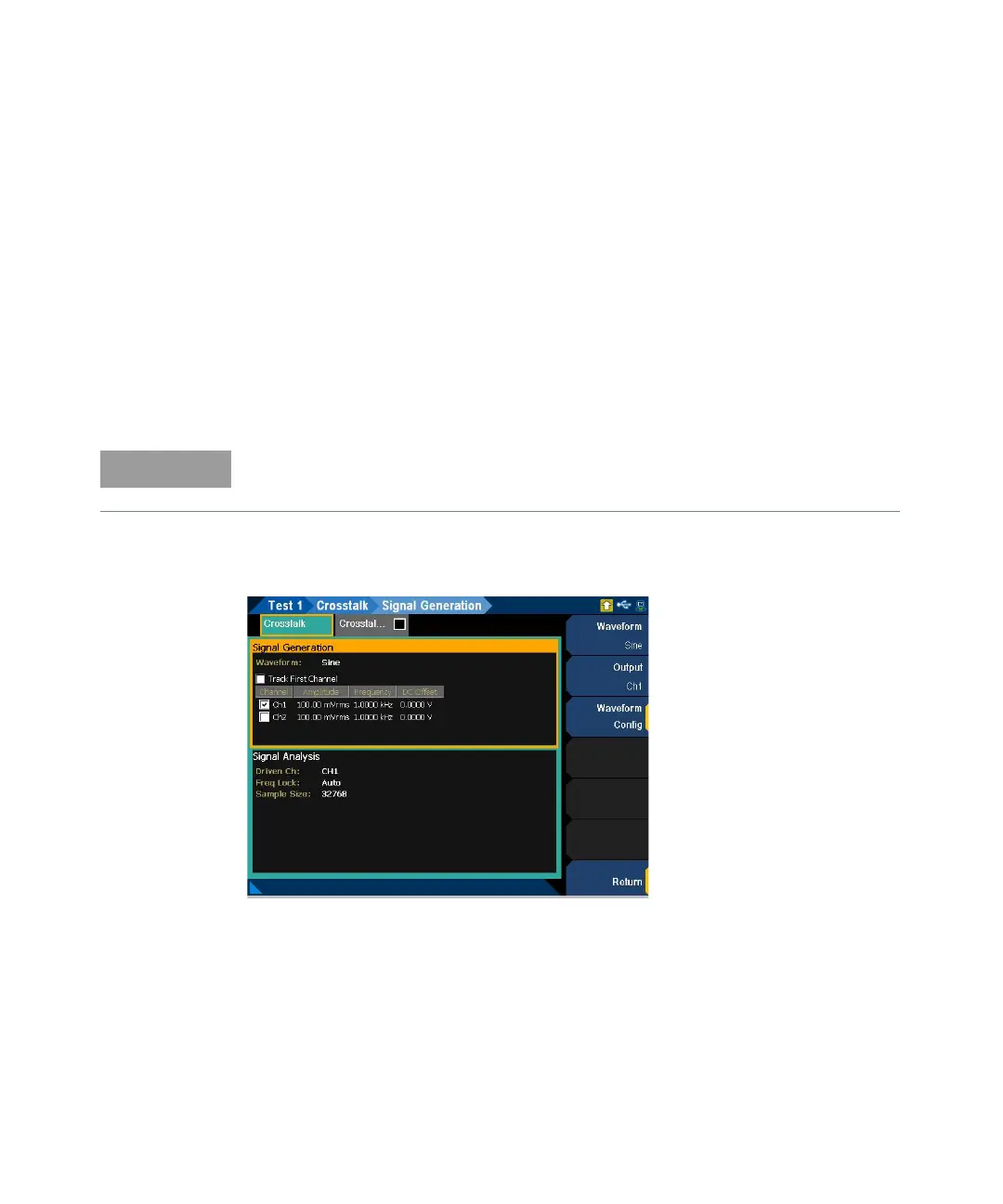

Figure 7-29 Crosstalk > Signal Generation settings menu page
NOTE
The signal generation is disabled if None is selected for the output configuration channel.
