7 Test Sequence Application
314 Keysight U8903B User’s Guide
Signal analysis
The AC level signal analysis settings menu page is displayed as shown in Figure 7-18.

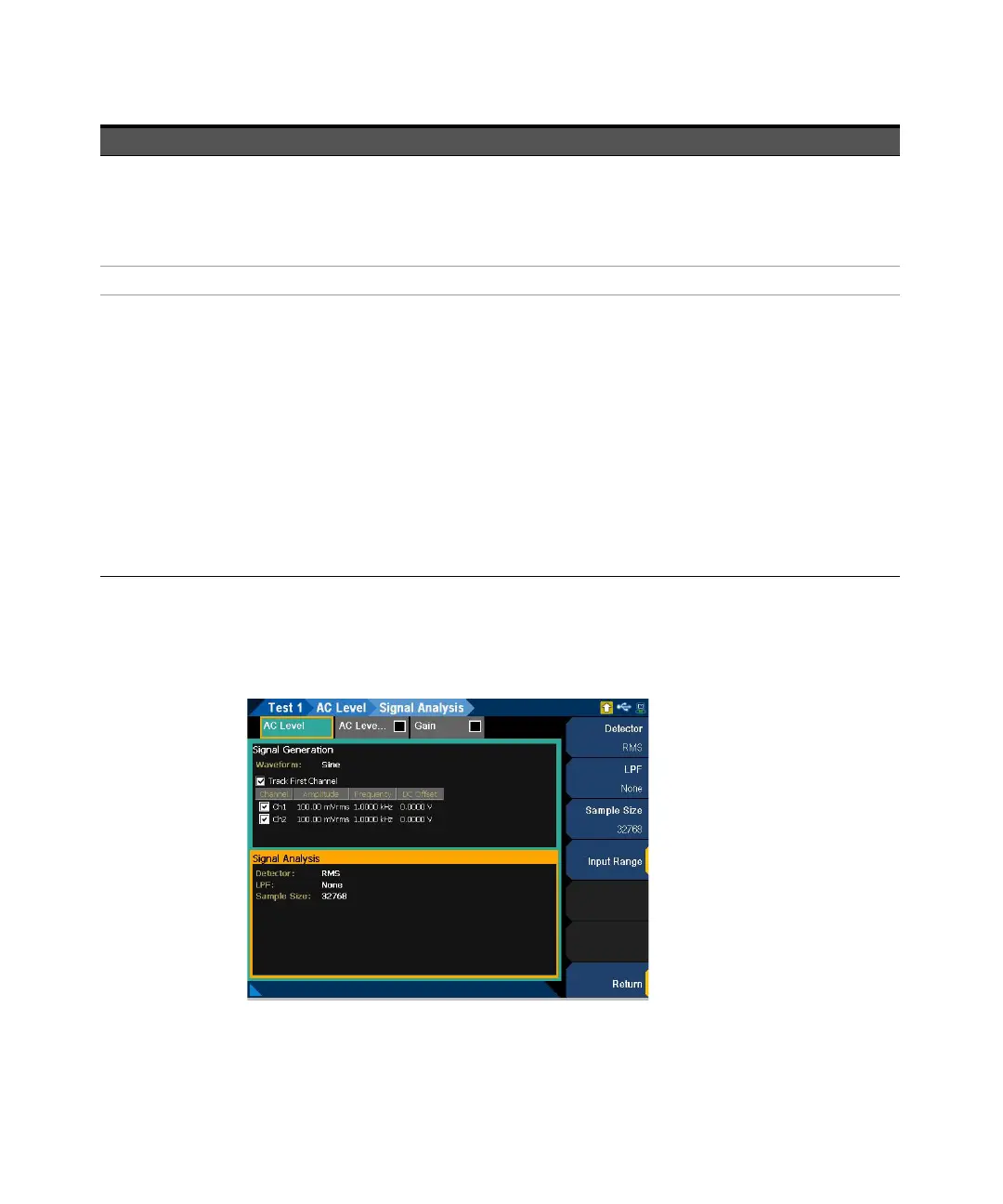

Figure 7-18 TSA > Project > Test > AC Level > Settings > Signal Analysis menu page
Table 7-16 TSA > Project > Test > AC Level > Settings > Signal Generation menu description
Menu Description
Waveform
Press the Waveform softkey to select the waveform type.
–Sine
– Variable Phase
– Square
– Arbitrary
Output Press the Output softkey to select the output channel.
Waveform Config
Press the Waveform Config softkey to set the waveform configuration. The available settings depend on the waveform
type.
– Track 1st Ch
If Track 1st Ch is enabled, the generator channel 1 waveform configuration settings will be copied to the other channels
and the waveform configuration settings for the other channels cannot be edited. Any changes made to channel 1
waveform configuration settings will be reproduced in the other channels waveform configuration settings. Disable the
Track 1st Ch to set the individual channels.
– Frequency
Set the frequency value.
– Amplitude
Set the amplitude value.
–DC Offset
Set the DC offset value.
– Phase->1st Ch
Set the phase value. This setting is only available when channel 2 is selected.
