Walking one
In walking one waveform mode, one bit is set to 1 and the rest of the bits are set to 0. The
bit 1 is continuously incremented from the least significant bit (LSB) to the most significant
bit (MSB) and loops back to the LSB.
Walking one waveform mode is applicable for the digital generator only. The waveform
configuration for walking one waveform is displayed as shown in Figure 3-44.

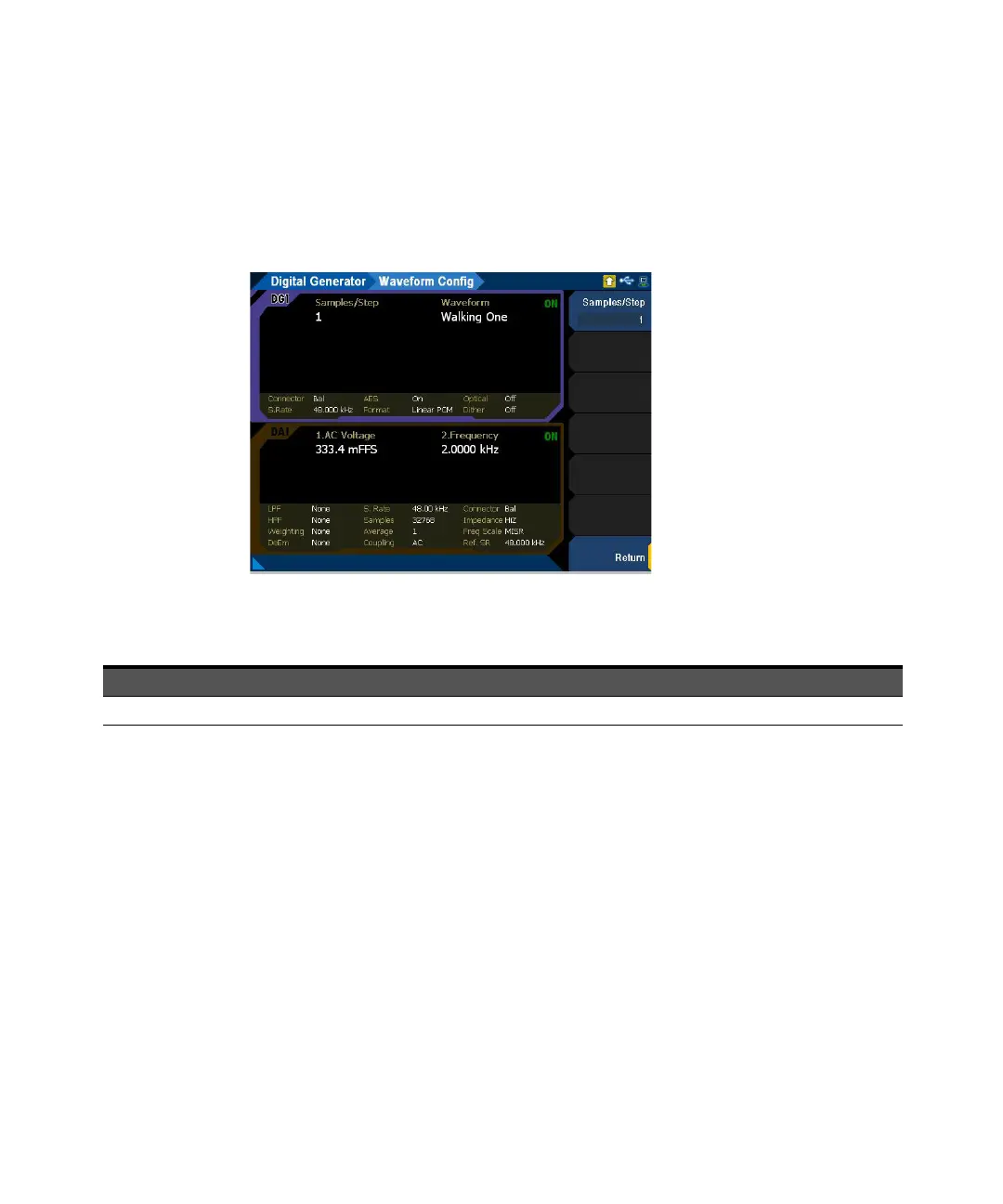

Figure 3-44 Digital Generator > Waveform Config menu page (walking one)
Table 3-21 Digital Generator > Waveform Config menu description (walking one)
Menu Description
Samples/Step Samples/Step refers to the speed the single bit 1 is incremented.
