Stereo waveform
Stereo waveform generates two independent sine waveforms for channel 1 and channel 2.
Stereo waveform mode is applicable for the digital generator only. For digital generator,
stereo waveform can be generated with a sinewave at two different channels. The

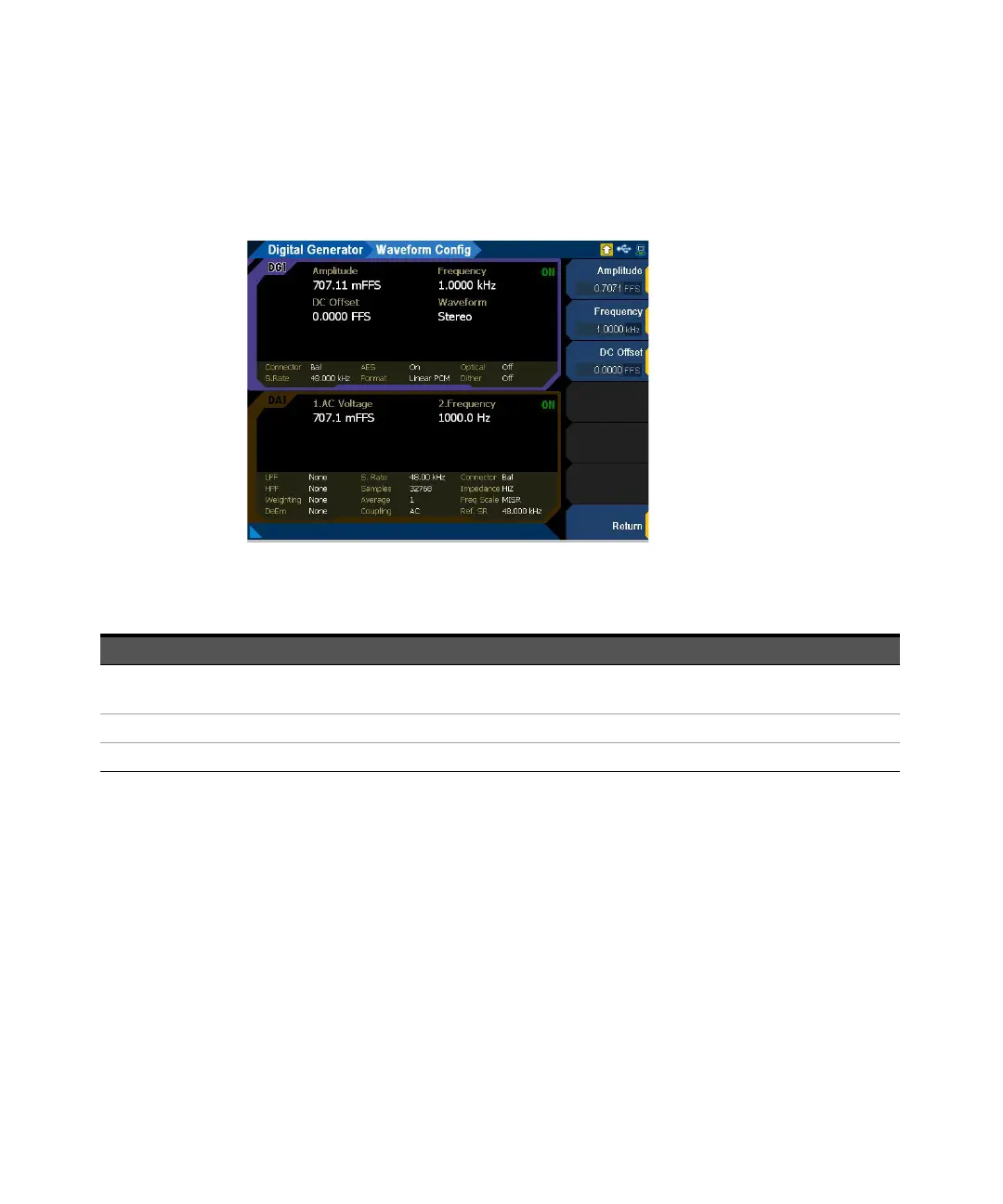

waveform configuration for stereo waveform is displayed as shown in Figure 3-39.
Figure 3-39 Digital Generator > Waveform Config menu page (stereo)
Table 3-17 Digital Generator > Waveform Config menu description (stereo)
Menu Description
Amplitude
Amplitude can be expressed as FFS, dBFS, or %FS for the digital and Bluetooth generator.
For a perfect sine waveform without any DC offset, Vpp is twice Vpeak and Vrms is equivalent to Vpeak/√2.
Frequency Frequency refers to the frequency for the first sine component.
DC Offset DC Offset refers to the DC component of the waveform.
To Next Page
