Input Configuration (Digital Analyzer)
The input configuration for digital analyzer is displayed as shown in Figure 4-63.

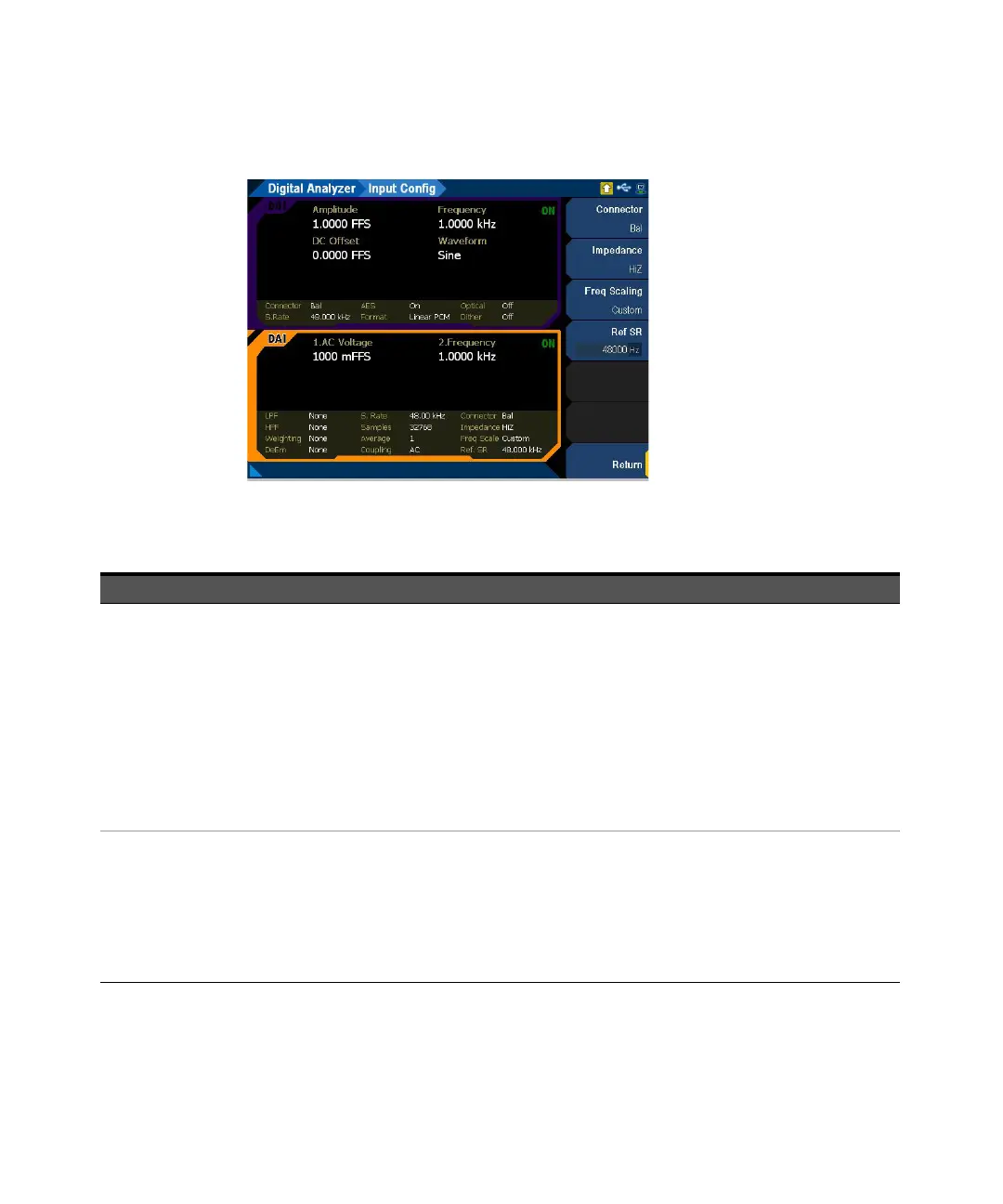

Figure 4-63 Digital Analyzer > Input Config menu page
Table 4-32 Digital Analyzer > Input Config menu description
Menu Description
Connector
Press the Connector softkey to select the connector type.
–UnBal
Unbalanced connector type routes the digital signal from the BNC input connector at the rear panel to the
digital analyzer.
–Bal
Balanced connector type routes the digital signal from the XLR input connectors in the rear panel to the digital analyzer.
– Optical
Optical connector type routes the digital signal from the TOSLINK input connector at the rear panel to the
digital analyzer.
–DSI
DSI connector type routes the digital signal from the 25-pin female D-SUB connector at the rear panel to the
digital analyzer.
Impedance
Press the Impedance softkey to select the input impedance.
Unbalanced connector type
–75 Ω
–HiZ
Balanced connector type
–110 Ω
–HiZ
