Installing the magnetic lock to the door and putting it into operation
Installation to door frame:
Installation of the metal plate to the door leaf:
We recommend installing the metal plate (5) to the top of the door leaf opposite the door
hinge.
Fix the drilling template to the inside of the door.
Use the 5.7 mm drill to drill the middle hole in the template through the door
Machine away an indentation with a depth of 2.4 cm and a diameter of 0.9 cm for
the pinch screw (9) on the opposite side.
The 4 mm holes on the outside are intended to horizontally fix the metal plate.
Before you attach the metal plate, you need to insert the metal tubes (6) into the
metal plate (5), using pincers.
Push the Allen screw with countersunk head (4) through the metal plate (5) and
then through the two washers (7 + 8).
Insert the Allen screw and the metal tubes in the appropriate holes;
Insert the pinch screw (9) in the indentation through the back of the door.
Screw the Allen screw into the pinch screw to fix the metal plate at the door.
Installation of the bracket to the doorframe:
First, remove the pre-assembled bracket (1) from the magnetic lock by unscrewing
the two Allen screws at the front of the magnetic lock.
Hold the bracket and the magnetic lock to the door before you fix it.
Make sure that the magnetic lock is flush with the metal plate (5).
Fix the bracket at the doorframe, parallel to the door leaf, using the two smaller
countersunk screws.
Make sure that the magnetic lock is flush with the metal plate (5) after the
installation.
Fix the magnetic lock to the bracket again using the Allen screws.

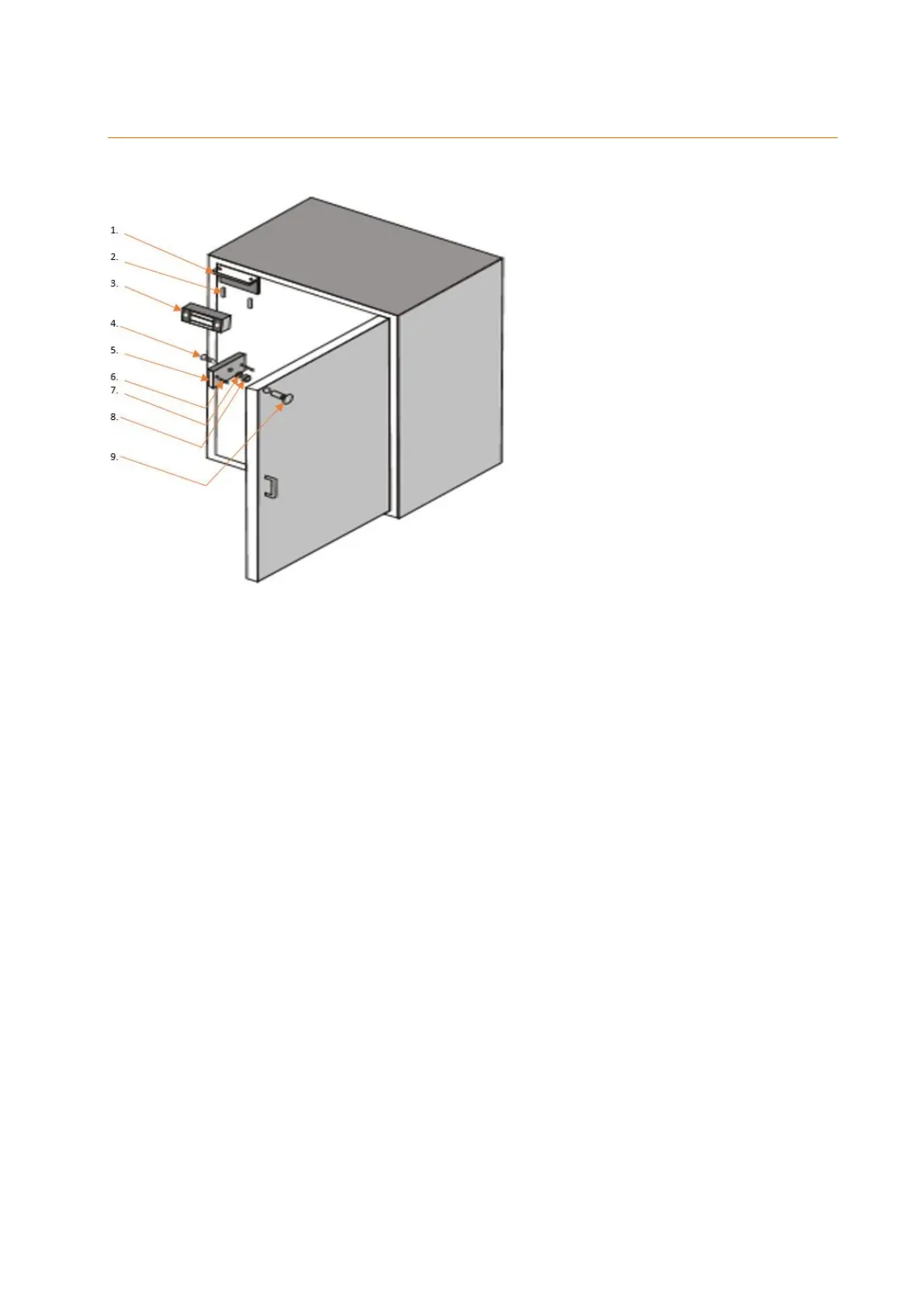

1. Bracket for magnetic
lock
2. 2.5 cm screw
3. Magnetic lock
4. Allen screw (0.5 cm)
5. Metal plate
6. Metal tube (horizontal
fixing)
7. Washer (metal)
8. Washer (rubber)
9. Pinch screw
