1 channel relay
Attention:
This product is not compatible with the XT1 or XT2 without “Upgrade dongle to XT2
Plus.”
ATTENTION:
The installation may only be performed by a person who is trained, certified,
and has a profound knowledge about electronic devices and electrical
engineering
Product description:
The double channel relay allows you to control a connected power circuit (24 - 230V
AC) wirelessly (ZigBee S). Additionally, it serves as a ZigBee repeater and automatically
enhances the signal of other ZigBee S devices. Since you can control two separate
power circuits with the double channel relay, the alarm panel recognizes the double
channel relay as two individual sensors.

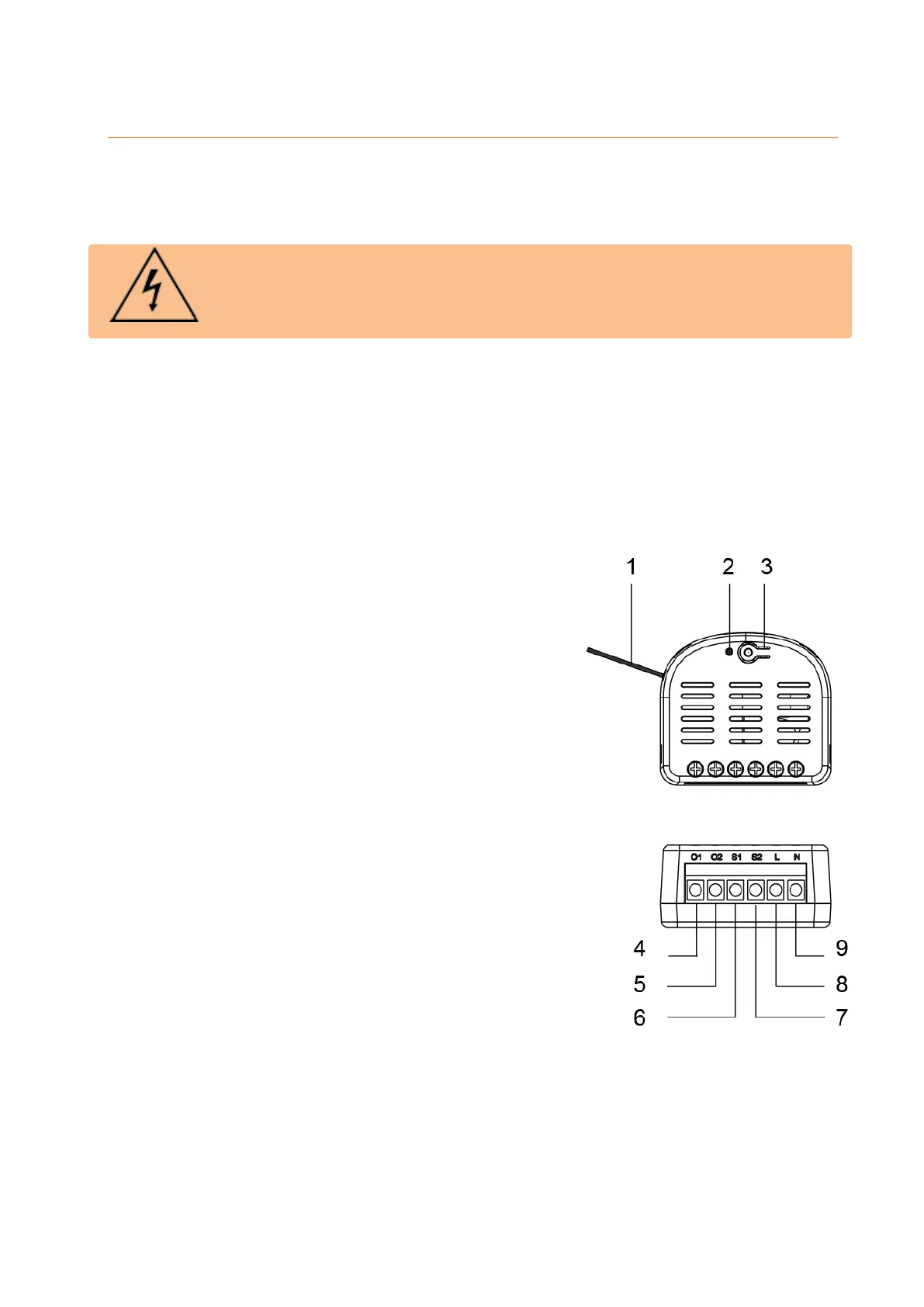

1. Antenna
2. Status LED
Flashes twice
The relay was successfully added to the
alarm panel.
Flashes once every 20 minutes
The relay has lost the connection to the
alarm panel.
3. Learn button
This button allows you to add the double
channel relay to the alarm panel. A details
description of the learn process is given on
the next pages.
4. AC output 1 – load
Phase conductor
5. AC output 2 – load
Phase conductor
6. External switch connector 1 (S1)
7. External switch connector 2 (S2)
8. AC input (24 - 230V)
Phase conductor
9. AC input and output (24 - 230V)
Neutral conductor
