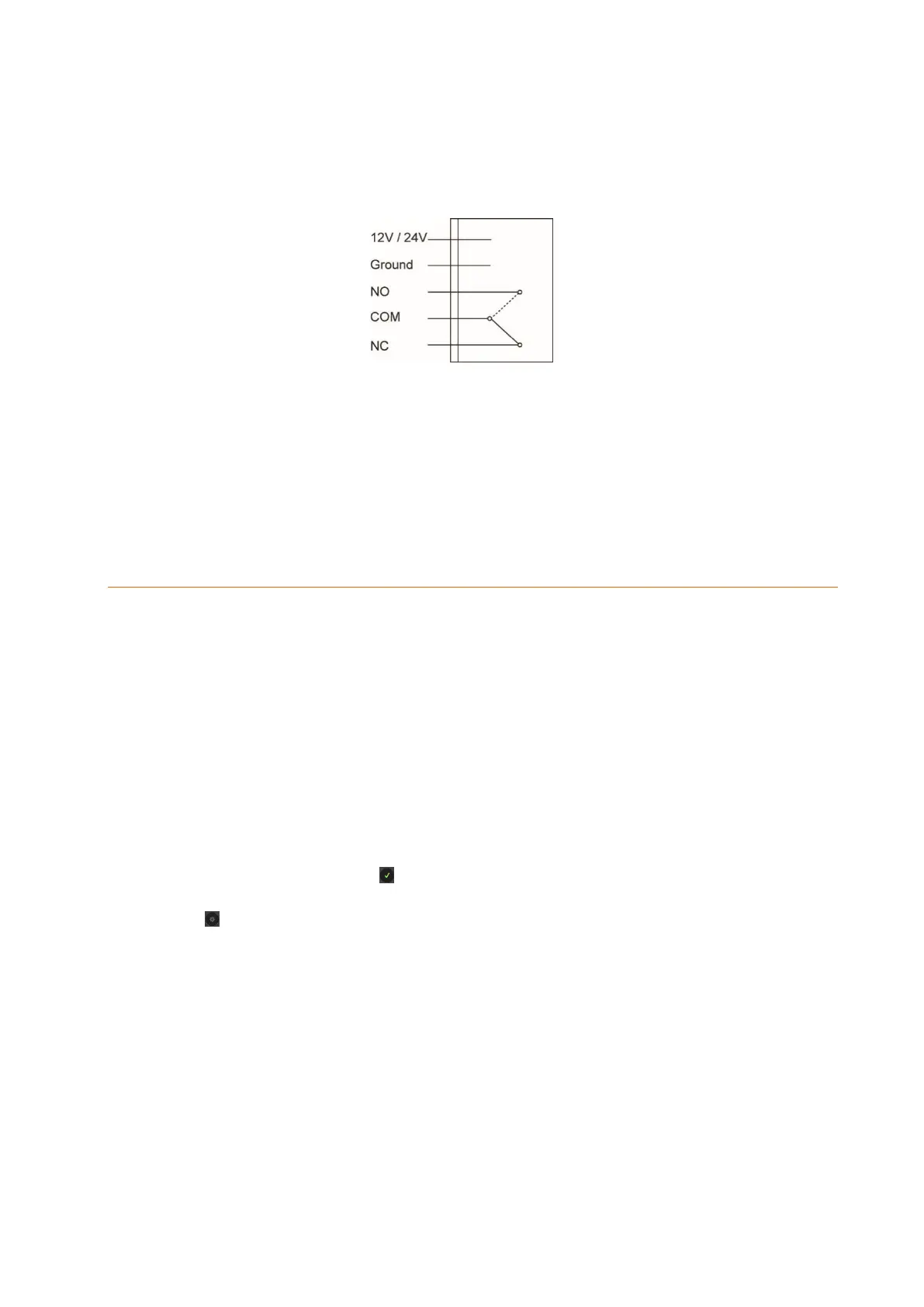

Wiring diagram:
We advise a cable diameter of 16–26 AWG or Ø 1.31-0.129 mm².
Connect the 12/24V relay according to following wiring diagram:
Please note:
12V/24V always requires a 12V DC or 24V DC mains adapter.
The relay does not output the voltage to the connected device (via 6+7 / 7+8).
The connected device requires a separate power supply.
The relay may only switch devices up to 5A 230V AC. Do not exceed these limits.
If you connect the neutral conductor of the connected device with power supply
of the connected device, the relay switches via the phase conductor.
Connecting the 12 / 24 V wireless relay and putting it into operation
1. Deactivate the power supply during the installation to prevent short-circuits.
2. Connect a 12 or 24 V power supply cable to the wireless relay input (4 + 5).
Connect outputs 7+6 / 7+8 according to the wiring diagram.
3. Establish the 12V / 24V power supply.
4. You can add the 12 / 24 V wireless relay to the alarm panel only within the first
three minutes after connecting the relay with a power supply!
5. Open the menu “Sensors” “Add” of the alarm panel and press “Start”.
6. Keep the learn button (2) pressed for approx. ten seconds. Release the learn
button after the LED has flashed briefly. A connection request is sent to the alarm
panel and the LED flashes twice.
7. As soon as the alarm panel has received the connection request, the relay is
displayed as found in the sensor list.
8. You can add the relay via .
9. Click on “stop” to end the learn mode or connect another device.
10. Use to change the settings of the device. You can also do this later on via the
sensor list.
Range test:
Use the range test to check if the signal strength at the place of installation is sufficient.
1. Open the menu “Sensors” “Range” of the alarm panel and press “Start.”
2. Press the learn button of the 12 / 24 V wireless relay.
3. The relay and the signal strength should be indicated.
Please note (signal strength):
The signal strength is displayed in the sensor list and is continuously updated.
If the signal strength at the place of installation is below 4, we advice to use a
ZigBee repeater, since it is normal that the signal strength may fluctuate for 2-3
points, thus, a signal loss is possible.
