295
Tag Reader V2

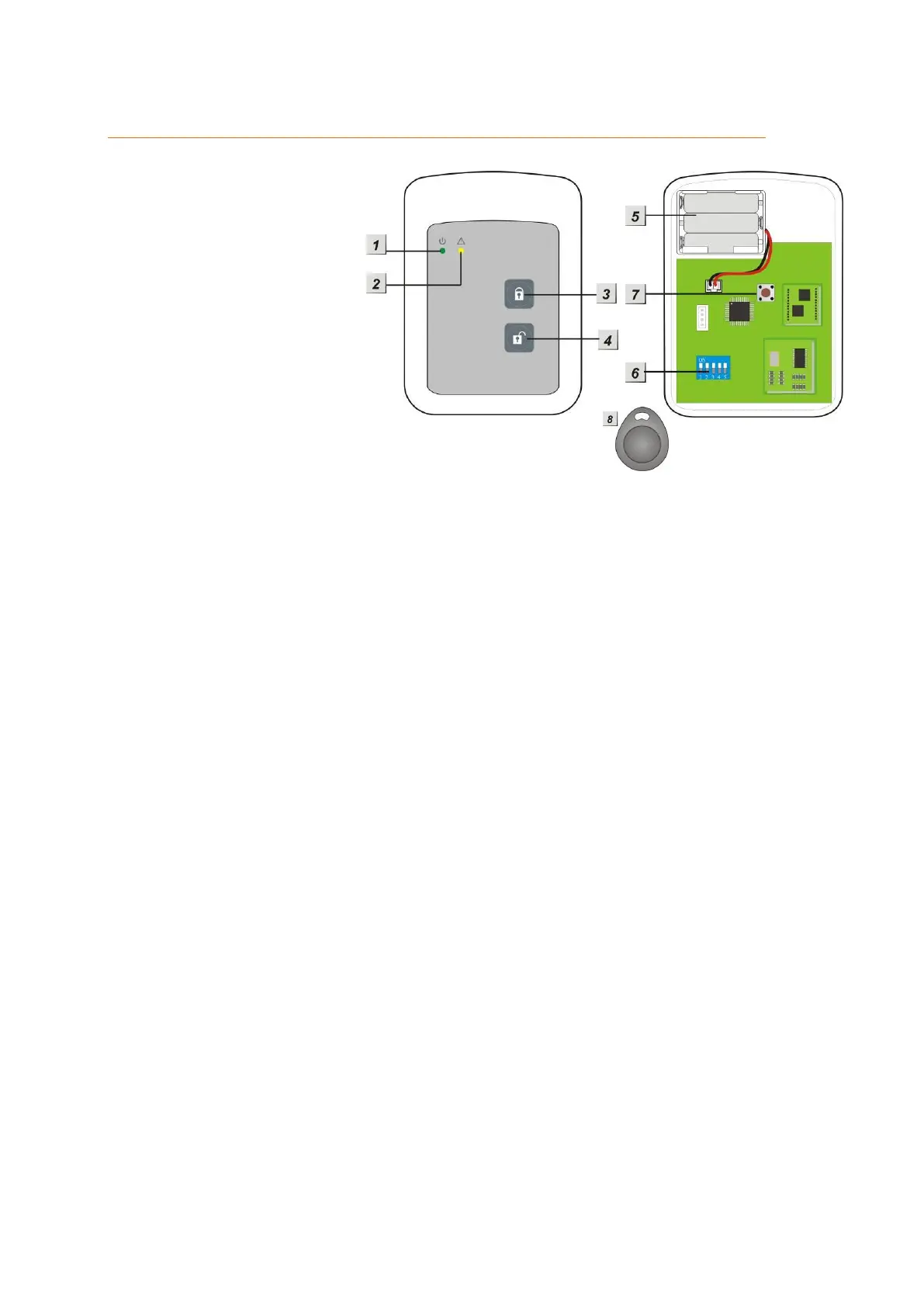

Product description:
1. Power LED (green)
2. Status LED (red)
3. Arm button
4. Disarm button
5. Batteries
6. Function switches
7. Tampering contact
8. Tag (watertight)
LED indicators:
Both LEDs are off in the stand-by mode.
Power LED (green):
o If a button is pressed, the Power LED lights up for 5 seconds to indicate the
readiness of the tag reader.
o The Power LED flashes instead of being on constantly to indicate the
battery running low.
Status LED (red):
o Flashes fast upon signal transmission.
o Is permanently on in tag learn mode.
o Flashes in installation mode.
Battery:
The tag reader requires three AAA 1.5 V alkaline batteries. The average battery
life is approx. four years (two activations per day).
The tag reader indicates the low battery status by the Power LED flashing. The
alarm panel is additionally informed about the battery status.
Power saving function:
As long as the tag reader is not used, it does not consume any electric power. Only
when a button is pressed is the tag reader is activated for 5 seconds.
The tag reader automatically switches off again after 5 seconds.
Tampering protection:
The tag reader is protected against being opened in an unauthorized way or being
removed from the mounting surface.
If the tampering contact is triggered, the Power LED lights up and a warning signal
sounds. The alarm panel is informed about the tampering.
If the alarm panel is armed, opening the tampering contact triggers an alarm.
In learn mode, the tampering contact is deactivated.
