17

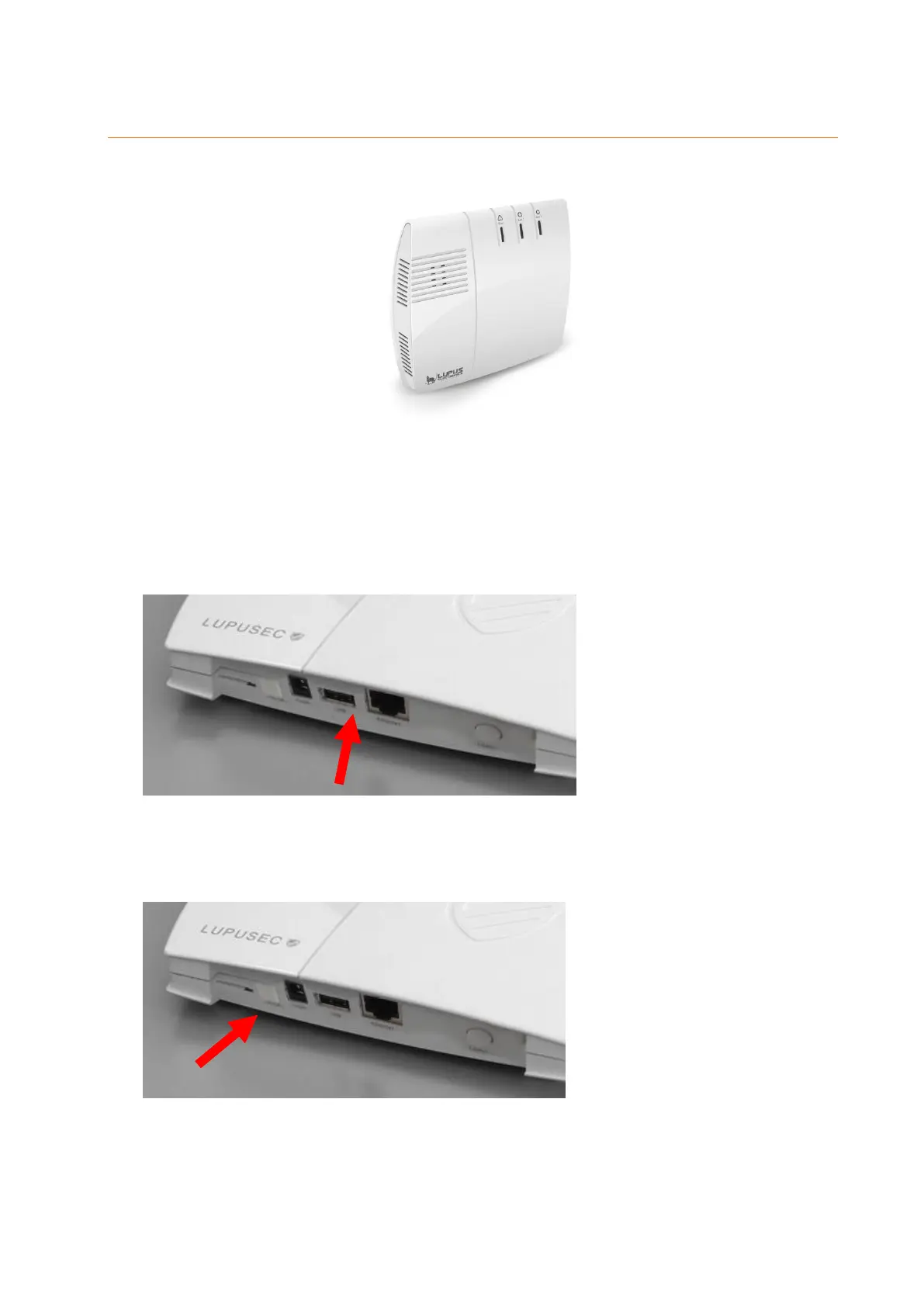

Connecting the XT2 (Plus) alarm panel
1. You can mount the XT2 (Plus) on a wall or place it on top of any even surface.
Please note:
For a wall installation, screws, dowels, and a drilling template are included. You need
to remove the rubber covers at the bottom of the alarm panel for an installation on a
wall.
2. Connect the provided mains adapter to the LUPUSEC-XT2 (Plus).
The alarm panel needs about 30 seconds to boot.
3. Remove the rubber cover from battery compartment on the back and turn the battery
switch to ON (left away from the power supply input).
Please note:
In case of power failure, the internal battery can supply the alarm panel with
power for approx. 12 hours.
It takes approx. 6 to 9 hours to fully charge the emergency battery!
In case of a power failure, it takes at least three minutes until the alarm panel
