Light switch V2
CAUTION:
Only certified electricians or persons instructed in electrical engineering with
knowledge and understanding of electric current and the inherent risks are
allowed to execute the installation.
Attention:
This product is not compatible with the XT1 or XT2 without “Upgrade dongle
to XT2 Plus.”
Product description:
The light switch V2 replaces your existing switch and, additionally to the manual
switching, allows you to control your lights via the home automation functions of your
alarm panel. You can connect two lamps (two separate power circuits) to the light switch.
Additionally to switching on an off, the light switch V2 also allows you to dim the lights.

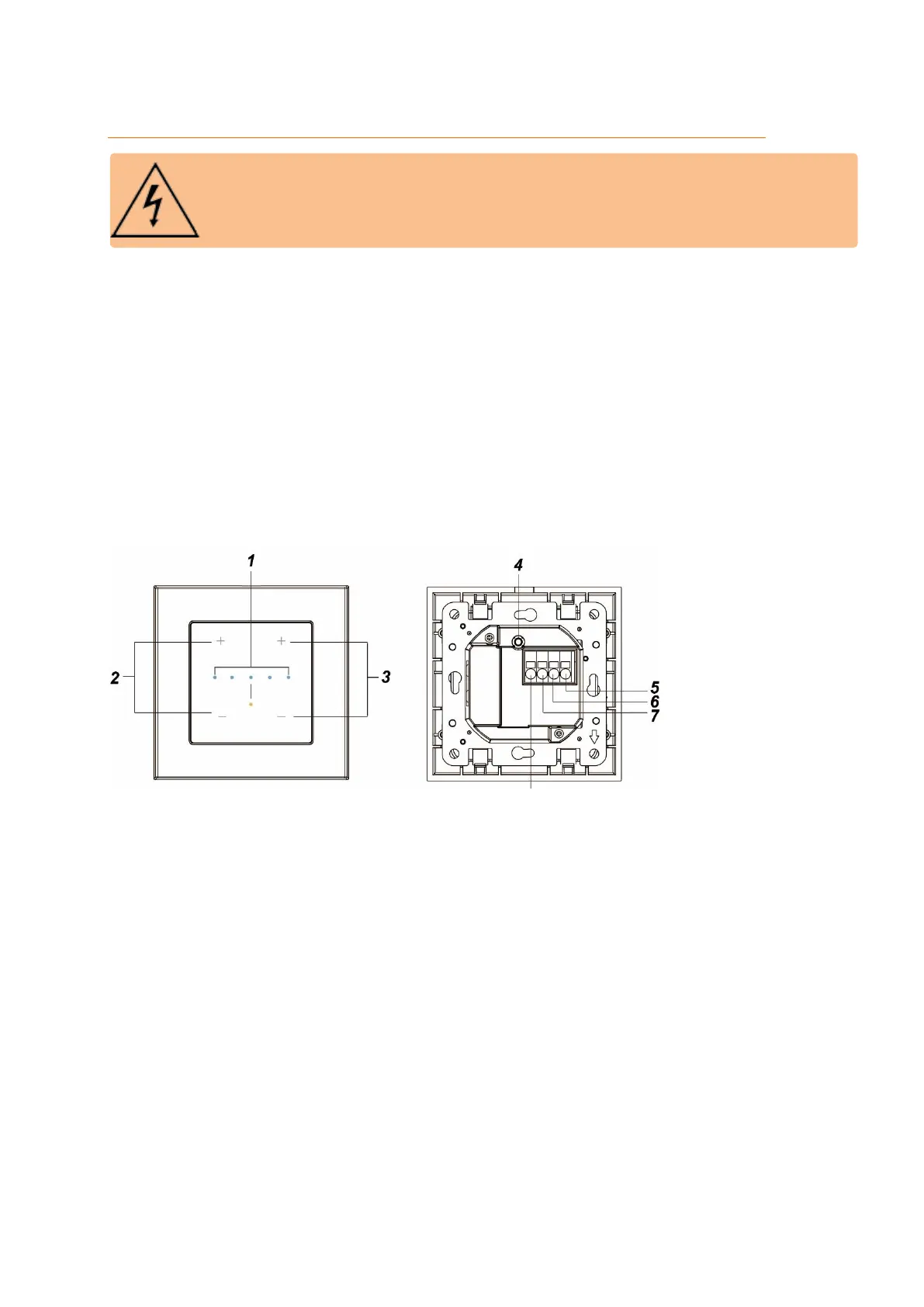

The left side of the light switch V2 (2) controls one power circuit, the right side (3) controls
another power circuit.
Dimensions: 84 x 84 x 46 mm (3.3 x 3.3 x 1.81 inches)
1. LED
a. Orange LED
Lights up briefly when you connect the light switch to the power circuit.
Lights up at every time you press a button.
b. Blue LED
Consists of five LEDs that can light up in two different brightness’s.
When the light switch connects to the alarm panel, all LEDs flash
twice.
All five LEDs flash once every 20 minutes if the light switch has lost the
connection to the alarm panel.
When you press the + / - button of circuit 1 or 2, the current brightness
of the lamp is displayed by the LEDs.
When you switch off your lights, no LED will flash.
If one LED lights up with maximal brightness, this signals 20%
illumination of the lamp. If one LED lights up with minimal brightness, it
signals an illumination of 10% of the lamp. Thus, if two LEDs light up
with maximal brightness and one with minimal brightness, the lamp is
dimmed to 50%.
