Door contact
Product description:
The LUPUS door contact is an integral part of your alarm system and is used to secure
your windows and doors. The contact consists of two parts: one is fixed at your window
or door frame, the other one is fixed at the wing of the door or window sash. Thus, the
window/ door contact immediately registers if a window or door is opened or closed. The
window/ door contact is available in three colors: white, brown, and anthracite.
Sensor data:
Dimensions sensor 85 x 24.6 x 19x5mm (3.3 x 0.96 x 0.76 inches) (LxWxH)
Dimensions magnet 45 x 12 x 9 mm (1.77 x 0.47 x 0.35 inches) (LxWxH)
Weight Sensor: 32g (0.07 pounds), Magnet: 8g (0.01 pounds)
Place of installation Only indoors (windows/ doors)
Working environment -10°C to 50°C (14F to 122F)
Humidity Maximal 85% (non-condensing)
Radio frequency 868.35 MHz
Detection method Magnetic measurement

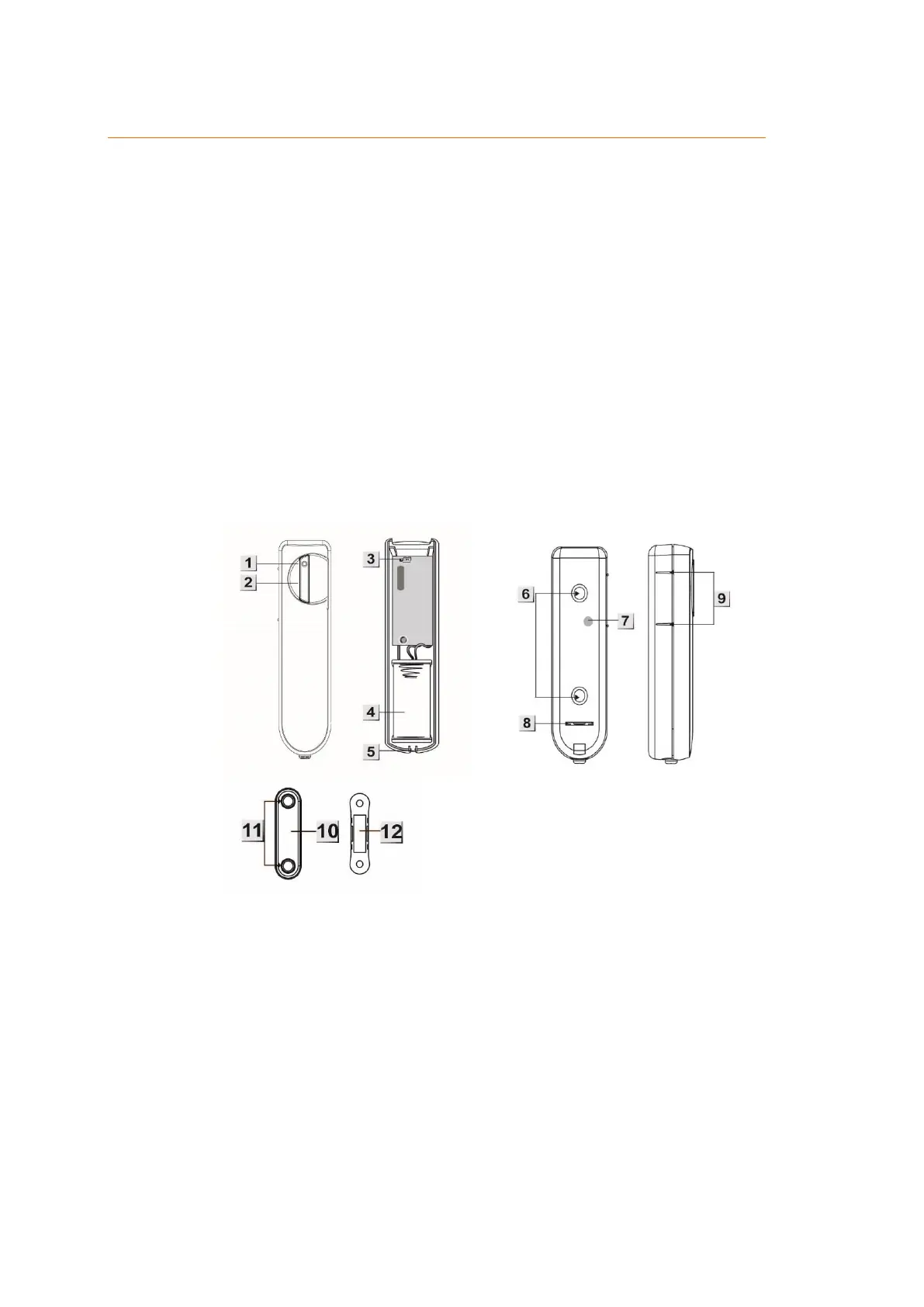

1. LED indicator
2. Learn button
3. Switch (JP1): status monitoring
4. Battery
5. Lock screw
6. Mounting holes
7. Tampering contact
8. Battery breaker (delivery status)
9. Magnetic contact markings
10. Magnetic contact (to be positioned at the markings)
11. Mounting holes
12. Magnet
