Electric meter
Warning:
This product is not compatible with the XT1 or XT2 without “Upgrade dongle to XT2
Plus.”
Product description:
The electric meter can easily be installed in or next to your fuse box in order to monitor
the power consumption in your home. The electric meter uses the IR interface of your
fuse box to receive this information.
Attention:
The installation of the electric meter should be performed by a certified electrician or a
person with a sound knowledge, understanding, and awareness of the dangers of
electronic devices and electricity.

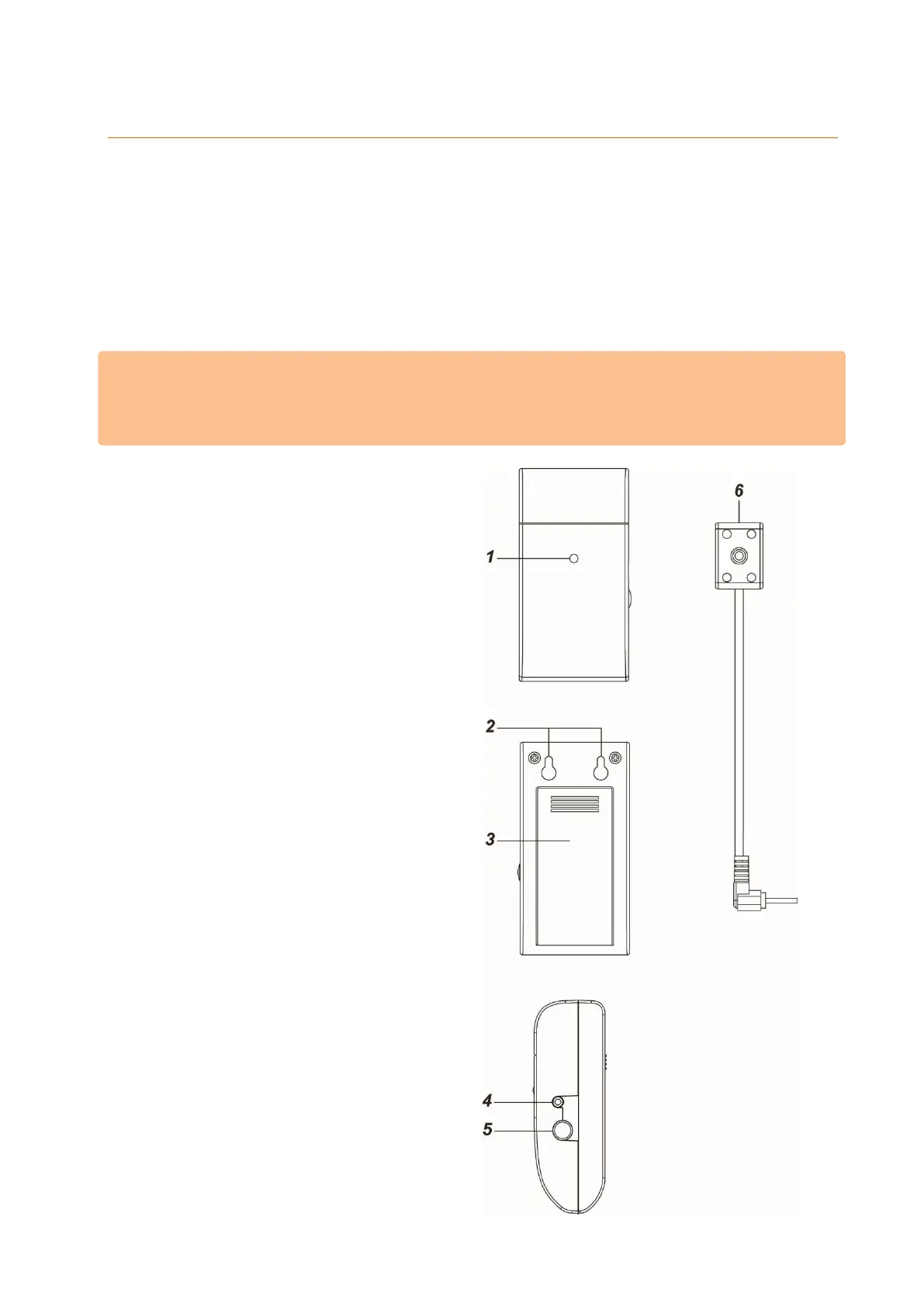

1. LED:
If the LED flashes once, the
electric meter was reset.
Flashes the LED twice, the electric
meter was successfully connected
to the alarm panel.
Flashes the LED every 20
minutes, the electric meter has
lost the connection to the alarm
panel.
2. Mounting holes
3. Battery compartment
Remove the cover to insert 2x AA
1.5V batteries into the electric
meter.
Low batteries are indicated in the
alarm panel in time.
After you have removed the old
batteries, and before you insert
new ones, press the learn button
two times to discharge any
residual current.
4. IR sensor input
This is the input for the IR sensor
(6).
5. Learn button
Press this button briefly in order
to transmit a measurement
manually to the alarm panel.
When you press the learn button
