Installing the mechanical lock to the doorframe and putting it into operation
 For reasons of safety, the bolt of the mechanical lock can only be activated if the
magnetic plate is located opposite of the lock. Thus, it is necessary to install the
magnetic plate parallel to the mechanical lock.
 Install the brackets as far away as possible from the door hinge (see figure 1+2)
to ensure the maximum stability of the brackets.
 When the door is closed, the bolt of the mechanical lock needs to be able to expand
into the hole of the magnetic plate.

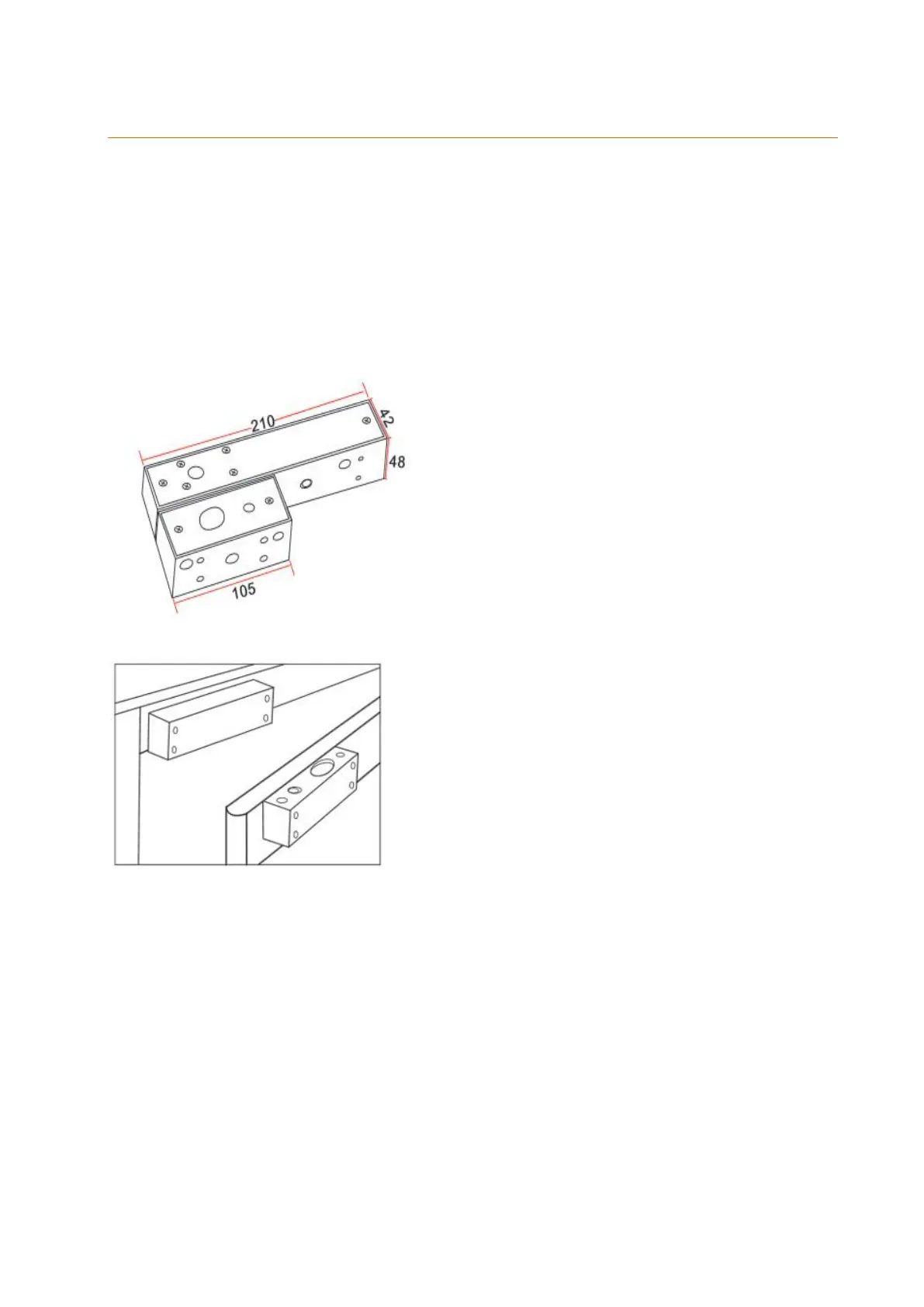

Dimensions of the mount (in mm):
Figure 1
Figure 2
Installation with bracket:
 The mechanical lock features two mounting brackets. The larger one for the lock,
the smaller one for the magnetic plate
 It does not matter, whether you install the bracket on top or to the side of the
door. If you install the mechanical lock to the side of the door, make sure to install
the cable outlets facing upwards and the bolt facing downwards!
 You should install the larger mount (the lock) at the doorframe and the smaller
mount (the magnetic plate) at the door.
 Unscrew the two Phillips screws at the edge of the larger mount. Be aware that
these screws are fixed tightly – you should use a “PH1” screwdriver.
 Push the bracket cover to the side and fix the bracket at the door with the
included screws.
 Insert the mechanical lock into the bracket and fix it with the screws at the left
and right.
