The supervisor mode is deactivated with Jumper 2 set to ON.
The supervisor mode is activated with Jumper 2 set to OFF (default setting).
8. Activate/deactivate microwave test Jumper Switch 3 (JP3)
The PIR/microwave sensor is in microwave test mode with Jumper 3 set to ON
(see Microwave test mode below).
The microwave test mode is deactivated with Jumper 3 set to OFF (default
setting).
9. Learn/Test button
Press this button to add the PIR/microwave sensor to the alarm panel or to start
the three-minute test mode.
10. Battery compartment
A 3V CR123 Lithium battery is required.

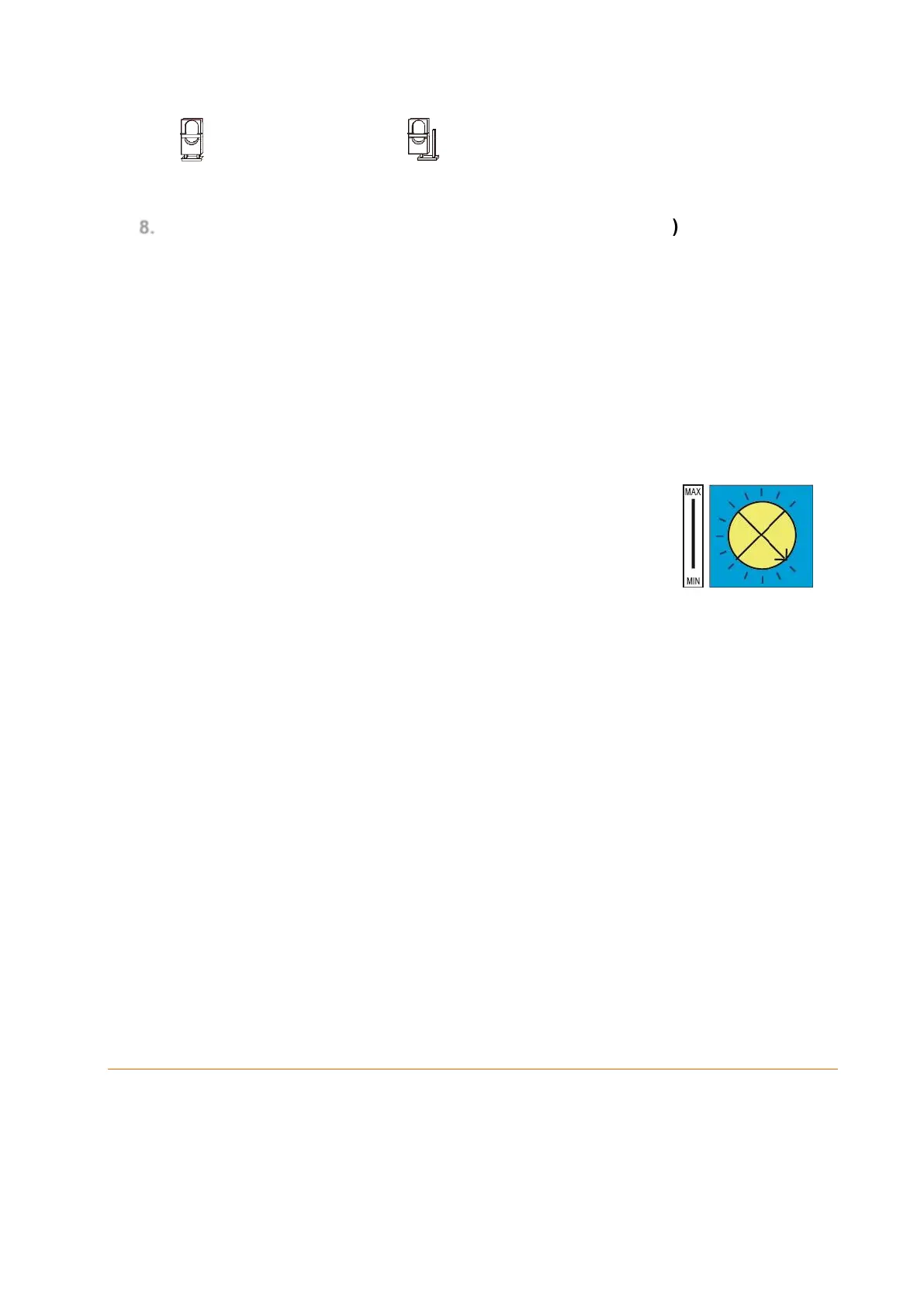

11. Microwave range controller
The arrow indicates the selected detection range:
Turn the arrow clockwise to increase the detection range
(maximum 0-15 m)
Turn the arrow counter clockwise to reduce the
detection range (minimum 0-5 m)
The default setting is minimum.
12. Tampering contact
The tampering contact presses against the mount on the back. If the
PIR/microwave motion detector is properly mounted, the tampering contact is
closed. As soon as the tampering contact opens, the sensor transmits a tampering
alarm to the alarm panel and the transmitter LED lights up.
13. Installation notch / break-joint
The PIR/microwave sensor has two predetermined breaking points intended to
break upon attempted tampering and to trigger the tampering alarm. They are
located at the notches for the screws and will break if someone attempts to
manipulate the dual way motion detector, thus, triggering an alarm.
Battery:
If you need to change the battery, be aware that upon opening the dual way motion
detector a tampering alarm might be triggered (depends upon your settings). After you
have removed the empty batteries, press the learn button two times in order to discharge
any residual current. Then, you can insert the new batteries.
Connecting the PIR / microwave motion detector and putting it into operation
1. Open the dual way motion detector by carefully pressing against the opening
mechanism at its bottom (e.g. with a screw driver) and remove the back,
2. Insert the provided battery.
3. The device starts. This process takes about 30 seconds. Wait until the LEDs
stopped flashing and avoid triggering the detector during that time!
Jumper On
The jumper bridges the two
pins.
Jumper Off
The jumper is removed or is on
one pin only.
