214323 93 Revision B

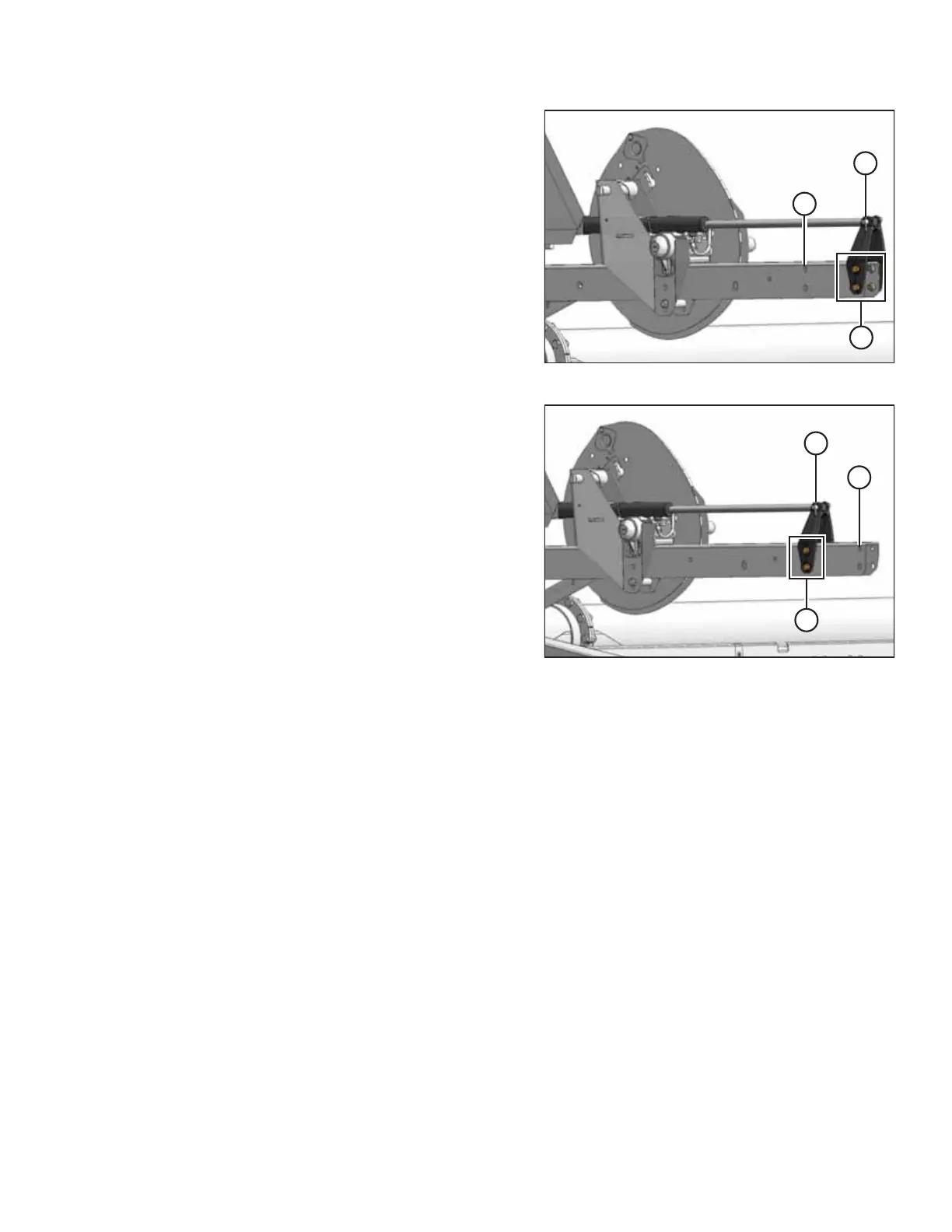

Figure 3.107: Forward Position
Reposition right arm cylinder as follows:
NOTE:
Reel components not shown in illustration for clarity.
6. Remove four bolts (A) securing cylinder bracket (B) to the
reel arm.
7. Position reel until bracket (B) lines up with desired position
holes (C):
• Forward position, refer to Figure 3.107, page 93
• Rearward position, refer to Figure 3.108, page 93
8. Reinstall the four bolts (A) to secure bracket to reel arm at
new position.
Figure 3.108: Rearward Position
OPERATION
