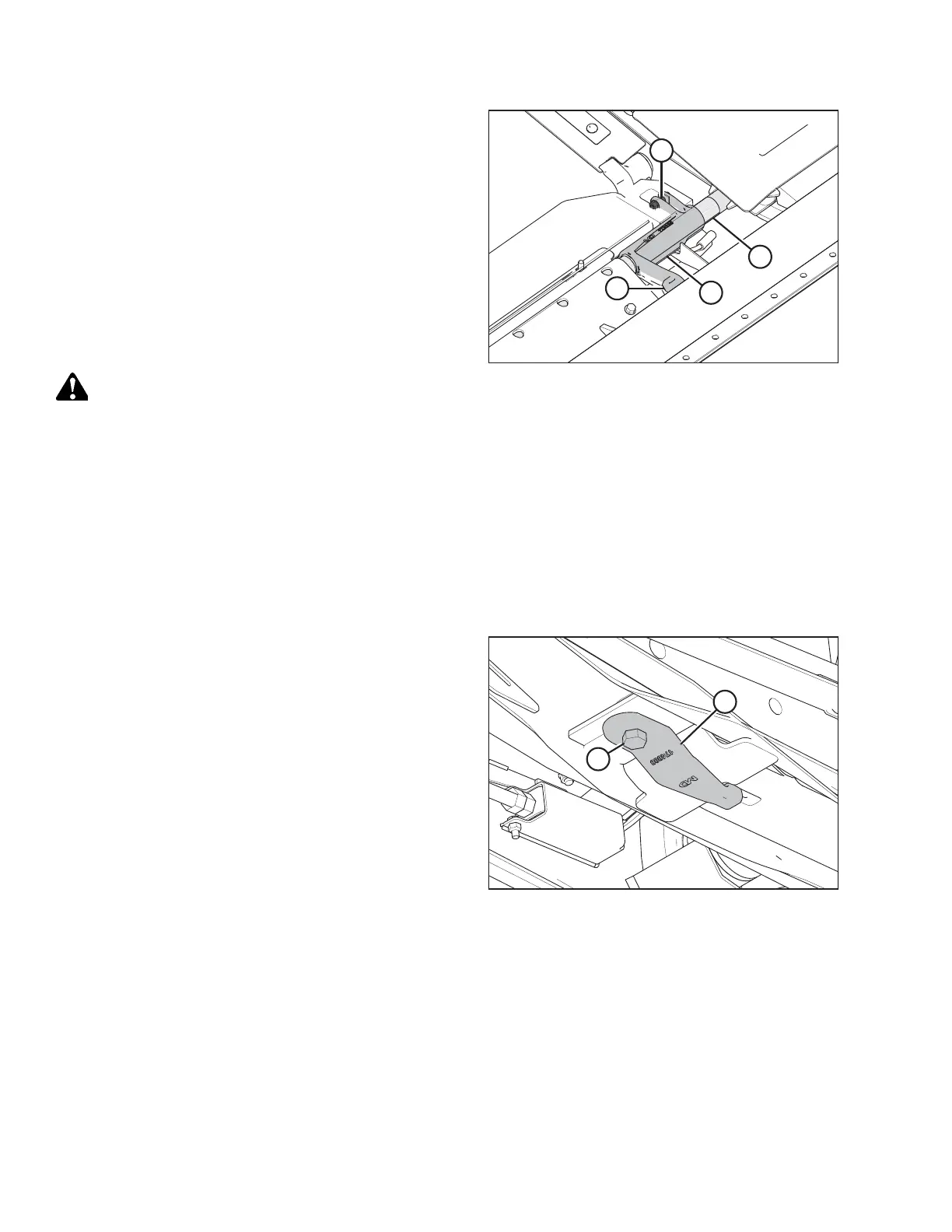

Figure 5.99: CA25 Latch
9. Remove the nut from bolt (C).
10. Use a 24 mm (15/16 in.) wrench on hex bolt (B) to rotate
latch (A) downwards and slightly raise the feed deck to
access and remove bolt (C).
11. Rotate latch (A) up and back to lower the adapter deck and
disengage transition pan tube (D).
12. Reinstall bolt (C).
13. Repeat steps for the opposite side of the feed draper deck.
14. Disengage the reel safety props.
DANGER
Ensure that all bystanders have cleared the area.
15. Start the engine.
16. Lower the reel fully.
17. Raise the header fully.
18. Shut down the engine, and remove the key from the
ignition.
19. Engage the combine lift safety props. For instructions, refer
to the combine operator’s manual.
1004592
A
B
Figure 5.100: CA25 Underside
20. Loosen nut and bolt (A), and disengage hook (B) from leg
on both sides of the adapter.
HEADER ATTACHMENT/DETACHMENT
