214323 354 Revision B
Every 100 Hours
Use high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2) lithium
base unless otherwise specified.

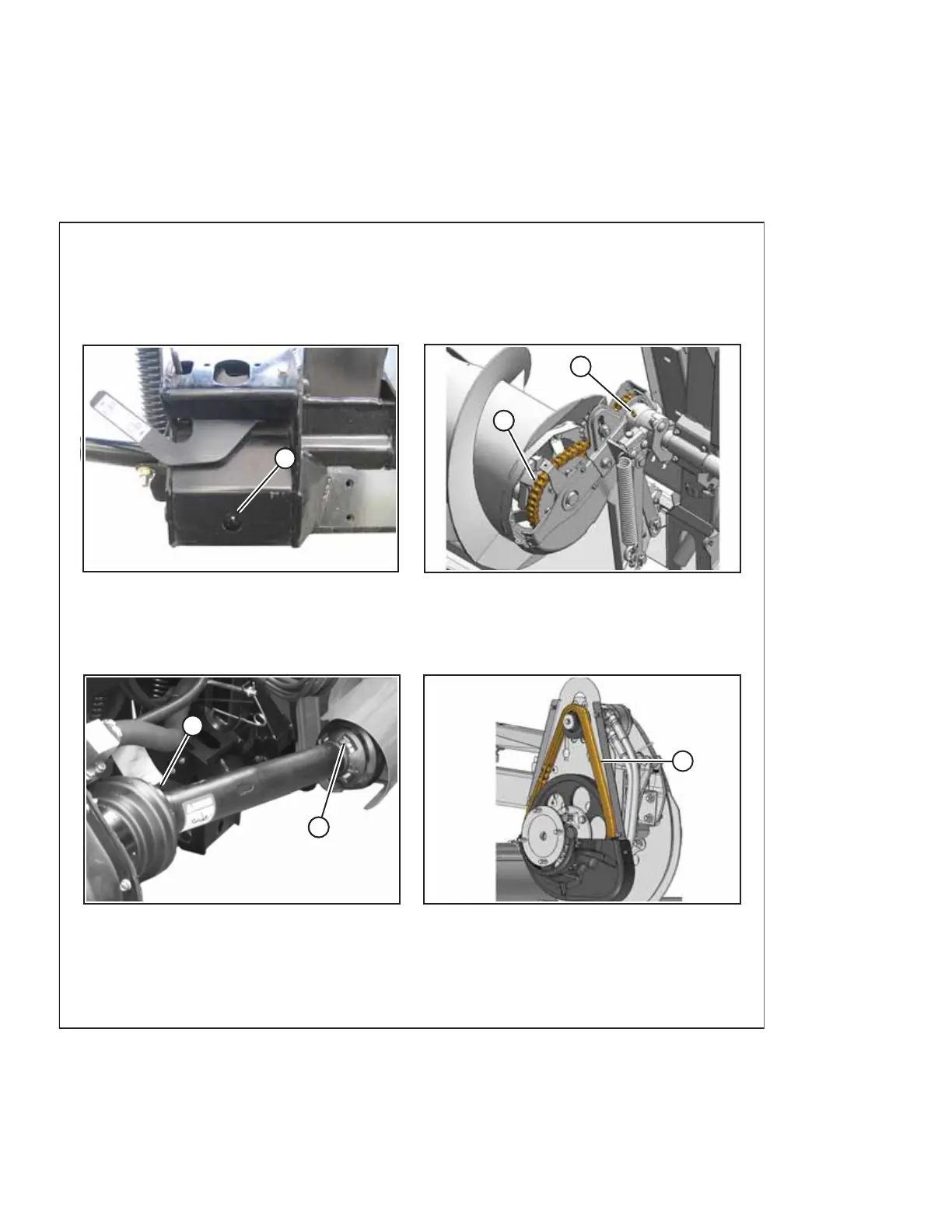

Figure 6.9: Every 100 Hours
1004752
1004750
A
1004751
B
1004755
E
E
C
ϭϬϯϵϴϱϭ
A
B
D
D
E
A - Float Pivot - Right and Left
B - Auger Drive Chain. Refer to Lubricating Auger Drive Chain, page 363
C - Auger Pivot - Right and Left
D- Driveline Guard - Two Places
E- Reel Drive Chain - One Place. Refer to Lubricating Reel Drive Chain – Double Reel, page 361
