Every 250 Hours
Use high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2) lithium
base unless otherwise specified.

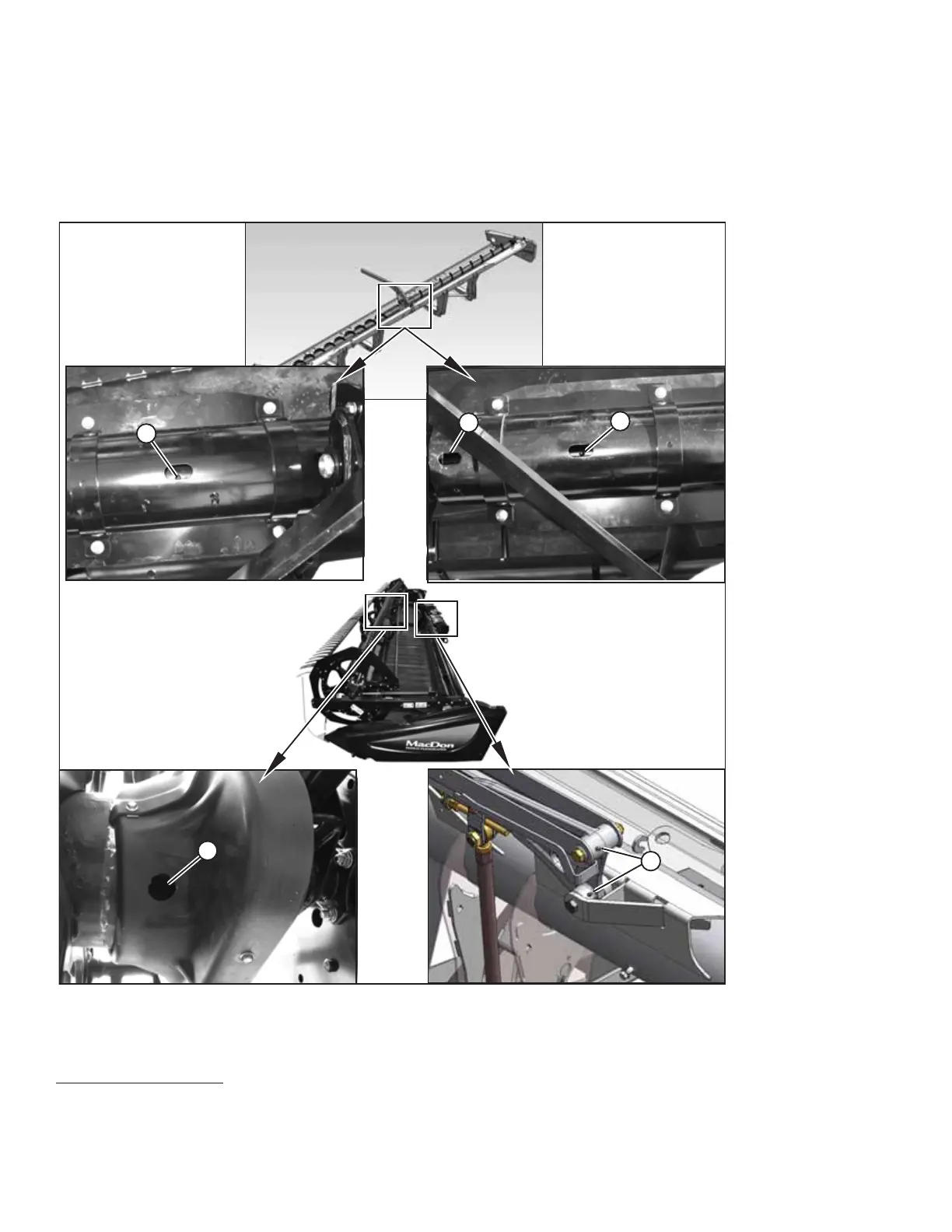

Figure 6.11: Every 250 Hours
1004764
1004769
1004771
1004770
1004762
1004815
A
A
B
D
C
A - Upper Cross Auger Drive Shafts (Two Places) B - Upper Cross Auger U-Joint
39
C - Reel U-joint (One Place) D - Flex Linkage (Two Places) - Both Sides
MAINTENANCE AND SERVICING
39. U-joint has an extended lubrication cross and bearing kit. Stop greasing when greasing becomes difficult or if U-joint
stops taking grease. Overgreasing will damage U-joint. Six to eight pumps are sufficient at first grease (factory). Grease
more often as the U-joint wears and it requires more than six pumps.
