214323 357 Revision B

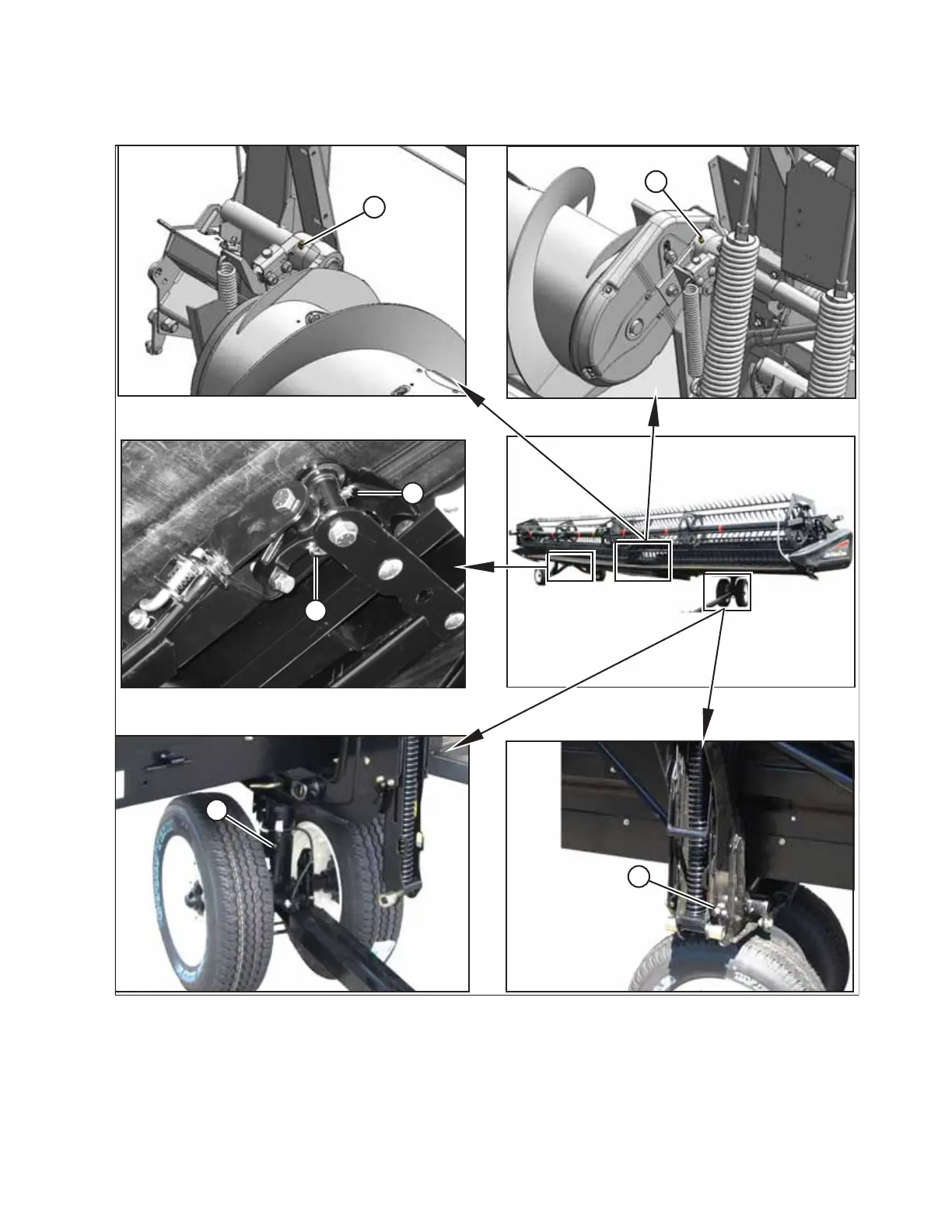

Figure 6.12: Every 250 Hours
1004775
1004812
1004776
1004777
1004773
1004772
B
B
A
C
D
A
A - Auger Pivots B - Rear Axle Pivots
C - Front Wheel Pivot (One Place) D - Frame/Wheel Pivot (One Place) - Both Sides
MAINTENANCE AND SERVICING
