214323 453 Revision B

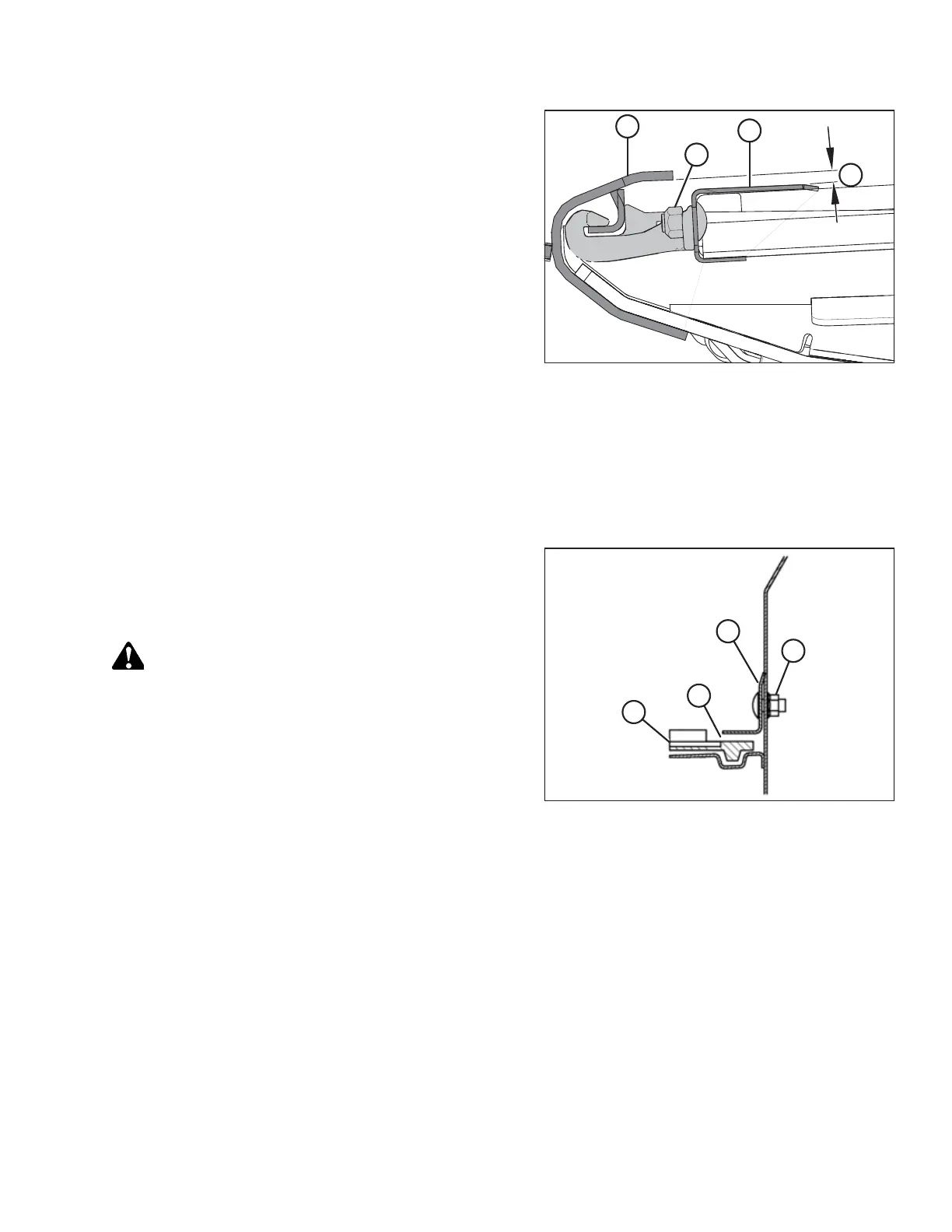

Figure 6.206: Deck Support
11. Locate a feeler gauge of the same thickness as the draper
belt plus 1 mm (1/16 in.).
12. Slide feeler gauge along deck (A) under the cutterbar in
order to properly set the gap.
13. To create a seal, adjust deck (A) so that clearance (B)
between cutterbar (C) and the deck is the same thickness
as the draper belt plus 1 mm (1/16 in.).
NOTE:
When checking the clearance at either roller, measure the
gap beginning at the roller tube, NOT the deck.
14. Tighten deck support hardware (D).
15. Recheck gap (B) with a feeler gauge. For instructions, refer
to Step 11, page 453.
16. Repeat Step 8, page 452 to Step 15, page 453 for each
draper deck support requiring adjustment.
17. Tension the draper. For instructions, refer to 6.12.3
Adjusting Side Draper Tension, page 447.
Figure 6.207: Backsheet Deflector
18. If necessary, adjust backsheet deflector (A) by loosening
nut (D) and moving the deflector until there is a 1 –7mm
(1/16–1/4 in.) gap (indicated by callout [C]) between
draper (B) and the deflector.
DANGER
Ensure that all bystanders have cleared the area.
19. Disengage the reel safety props. For instructions, refer to
Disengaging Reel Safety Props, page 32.
20. Lower the reel fully.
21. Shut down the engine, and remove the key from
the ignition.
MAINTENANCE AND SERVICING
