MCM MODELS- BRAVO MODELS WITH DRIVE SHAFT EXTENSIONS - 2D-390-823225--1 1096

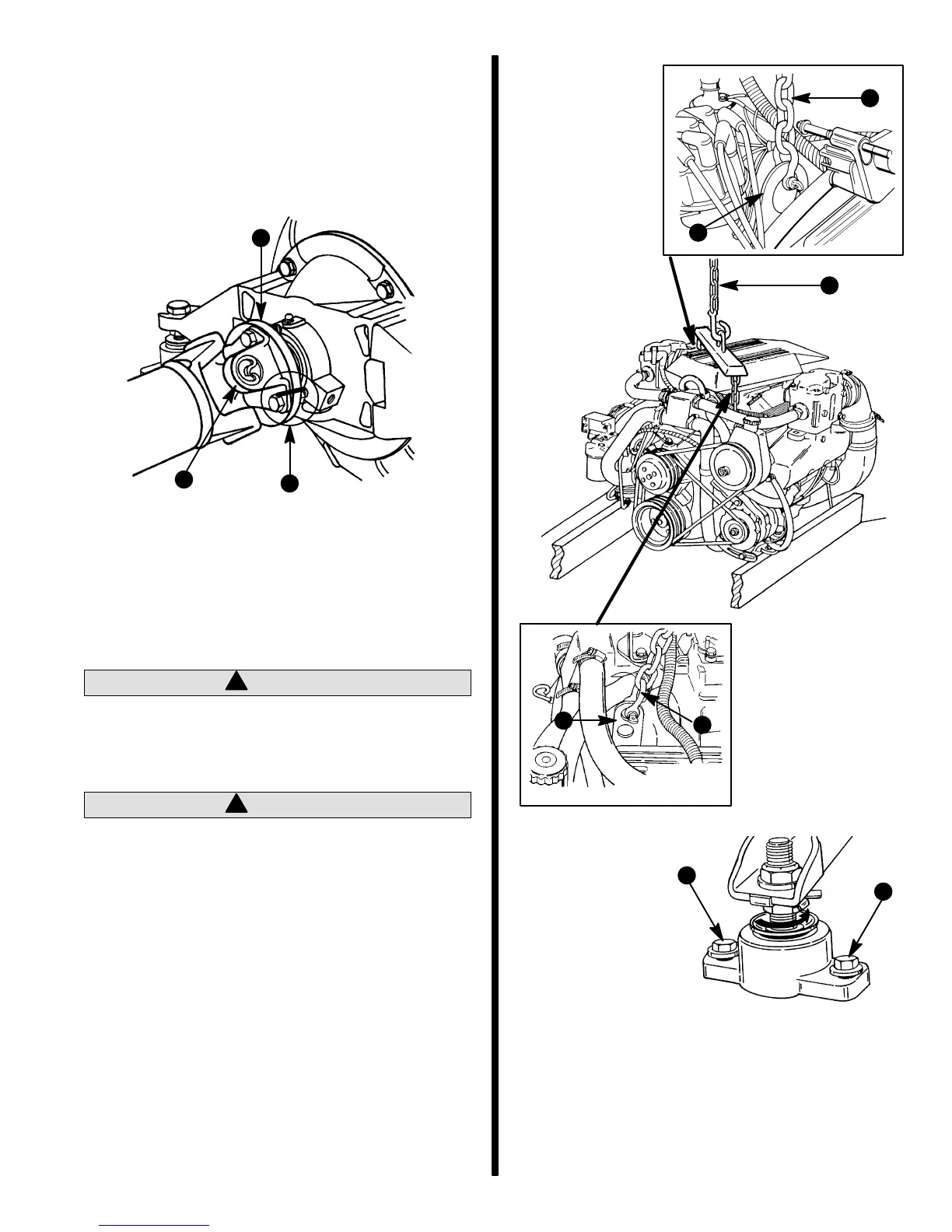

13. Mark extension drive shaft U-joint yoke/output
flange connections at engine end (to assist in ex-
act same positioning during reassembly). Dis-
connect drive shaft from output flange.
70237
b
c
a
Engine End Shown
a - Matching Marks On Flange and Drive Shaft Connection
b - Extension Drive Shaft U-Joint Yoke
c - Flange- Output
!
CAUTION
Center lifting eye (located on top of thermostat
housing) is used for engine alignment only. DO
NOT use to lift entire engine.
!
CAUTION
DO NOT allow lifting sling to hook or compress
engine components or damage will occur.
IMPORTANT: To avoid the need for a complete re-
alignment (after engine repair), DO NOT MOVE
FRONT AND REAR MOUNT ADJUSTMENT. Re-
move mounting bolts from boat stringers.
14. Support engine with suitable sling through lifting
eyes on engine and remove front and rear engine
mounting bolts from boat stringers. Retain hard-
ware.
72536
a - Mounting Bolts
Typical Mounting Shown
a
a
a - Suitable Sling
b - Engine Lifting Eyes
72579
72581
a
b
a
72578
b
a
15. Carefully remove engine.
To Next Page
