Mercury 305 CID - EFI System Harness

4F-14 - WIRING DIAGRAMS 90-823225--1 1096

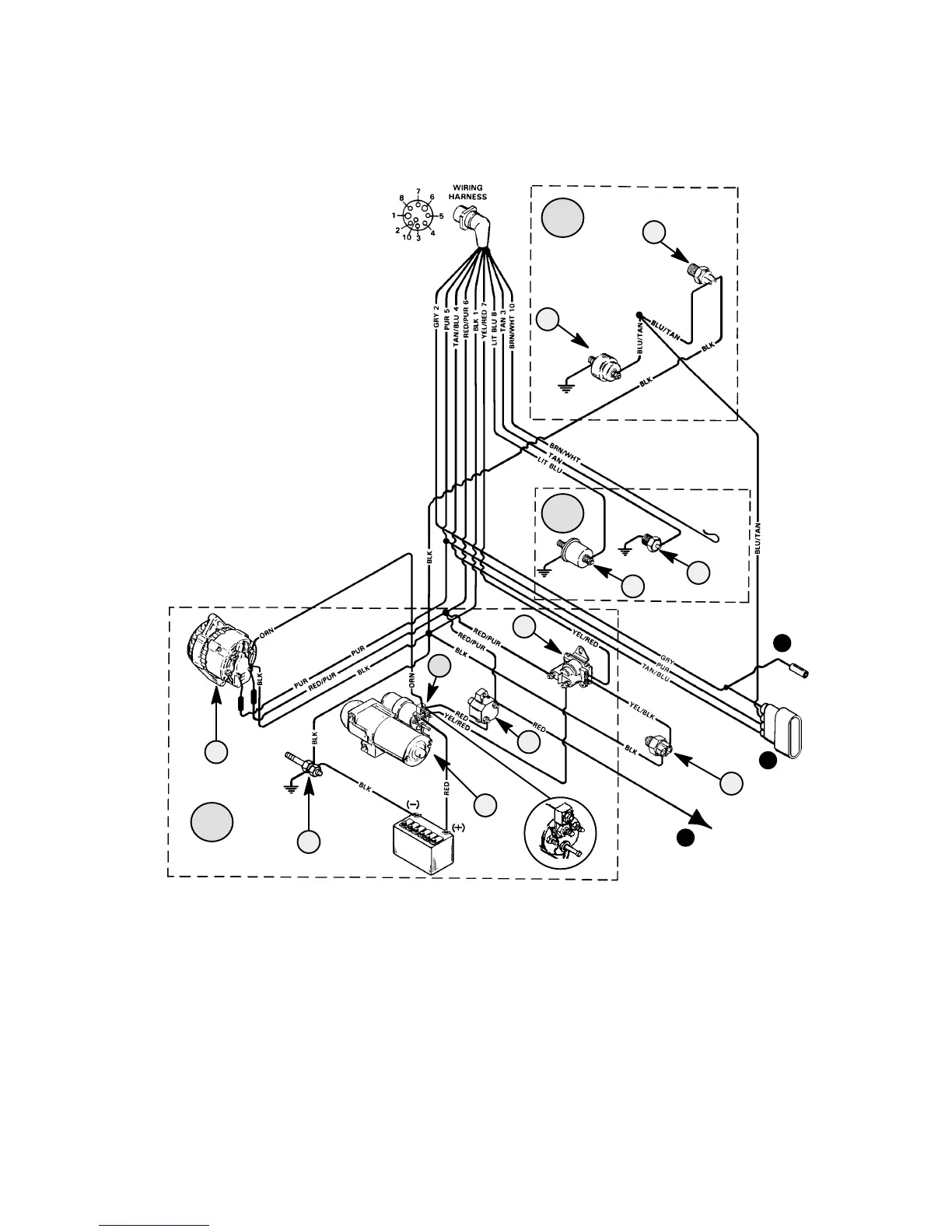

EFI System Harness
MIE
2
b
c
a
1
3
5
4
6
1
2
1
2
C
B
A
7
90 AMP
FUSE
A- Audio Warning System
1 - Oil Pressure Switch
2 - Transmission Fluid Temperature
Switch
B- Instrumentation System
1 - Oil Pressure Sender
2 - Water Temperature Sender
C- Charging and Starting System
1 - Alternator
2 - Ground Stud
3 - Starter
4 - Circuit Breaker
5 - Starter Slave Solenoid
6 - Neutral Safety Switch
7 - 90 Amp. System Fuse
a - Positive Power Wire To EFI System Harness
b - Harness Connector To EFI System Harness
c - Auxiliary Tachometer Lead
